Sony ICF-18 - Section 6 Exploded View

– 7 –

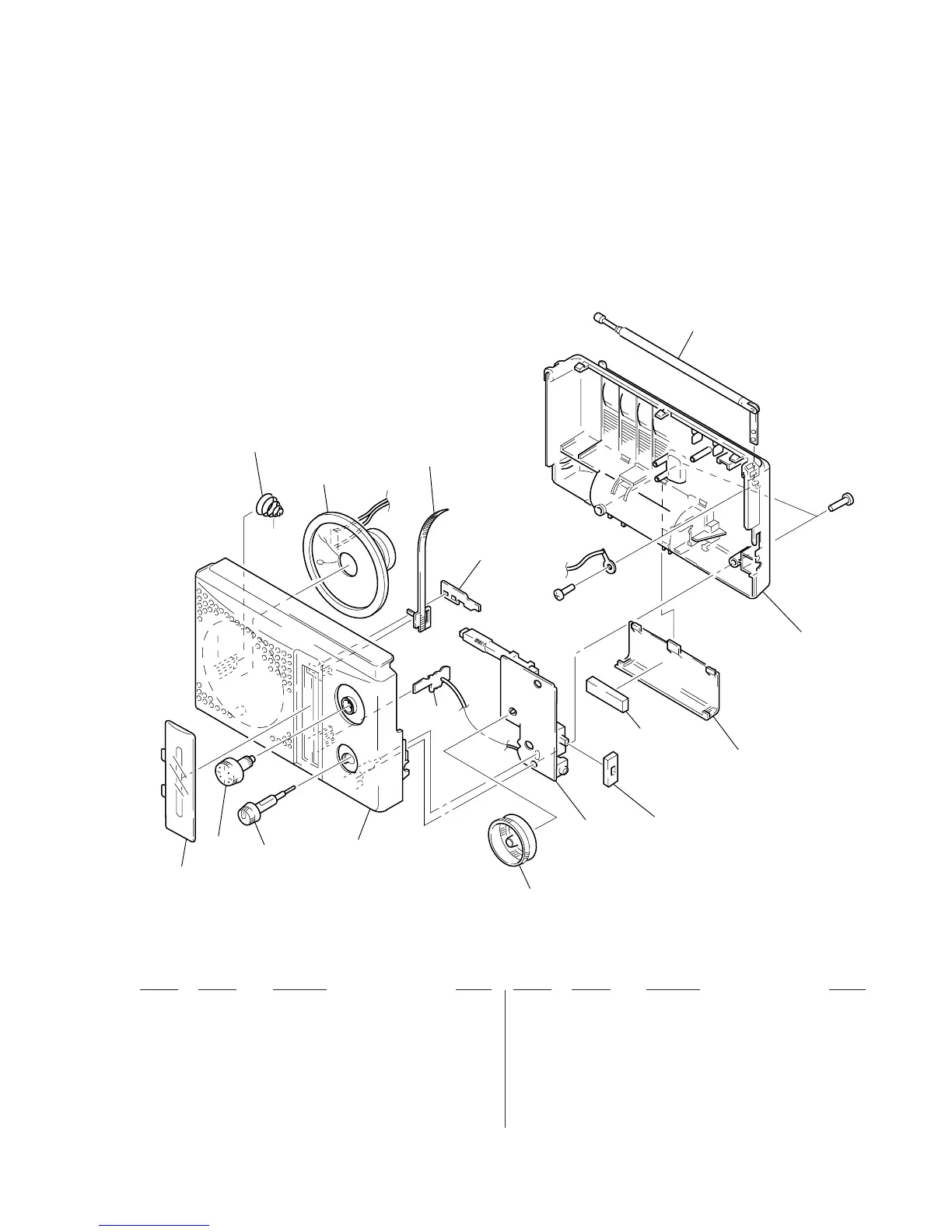

SECTION 6
EXPLODED VIEW
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 9 A-3662-892-A MAIN BOARD, COMPLETE (US)
* 9 A-3679-659-A MAIN BOARD, COMPLETE (EXCEPT US)
10 3-920-188-01 GEAR, VC
11 3-925-513-01 SHEET (BAND)
* 12 1-656-281-11 POSITIVE TERMINAL BOARD
ANT1 1-501-774-11 ANTENNA, TELESCOPIC (FM)
SP1 1-504-861-11 SPEAKER (9.2CM)
1 3-017-750-01 PLATE, TRANSPARENT
2 3-017-752-01 KNOB (TUNE)
3 3-017-753-01 KNOB (VOL)
4 3-017-749-01 CABINET (FRONT)
5 3-920-194-01 TERMINAL (–), BATTERY
6 3-017-751-01 POINTER
7 3-920-185-01 CABINET (REAR)
8 3-905-428-11 LID, BATTERY CASE
#1
#2
#3
1
2
3
4
5
SP1
6
not supplied
ANT1
7
8
not supplied
11
9
10
12
