Sony ICF-403S - 6 Exploded Views

– 11 – – 12 –

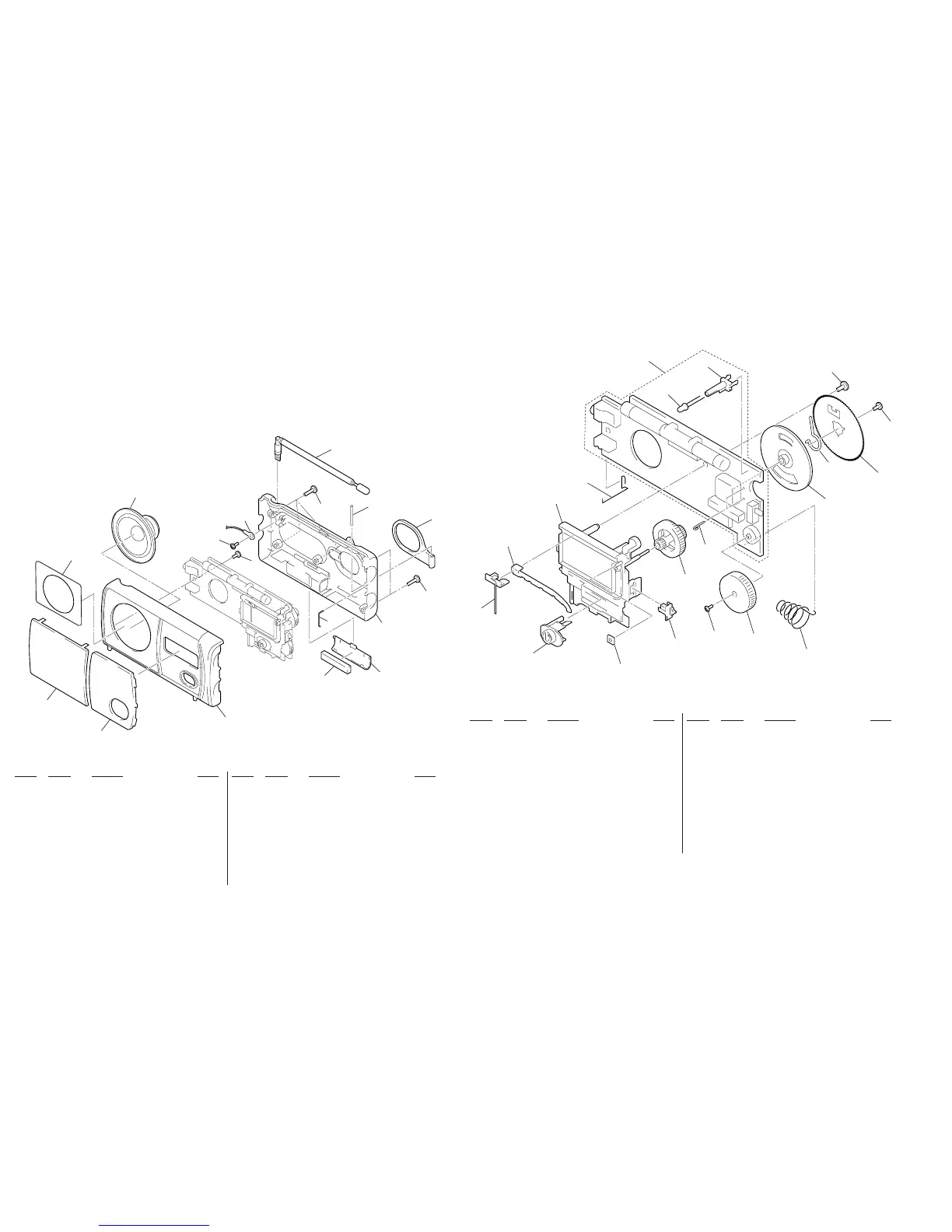

SECTION 6
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Color indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ••• (RED)
↑↑
Parts color Cabinet's color
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-1. CABINET SECTION
• Abbreviation
EA : Saudi Arabia
7
not supplied
6
8
11
1
2
3
4
5
4
12
10
9
ANT1
SP1
6
1 3-037-016-01 CABINET (FRONT) (BLACK)
1 3-037-016-11 CABINET (FRONT) (WHITE) (AEP)
2 3-037-026-01 PLATE, TRANSPARENT (EXCEPT EA)
2 3-037-026-11 PLATE, TRANSPARENT (EA)
3 3-037-029-01 PANEL(SPEAKER) (BLACK)
3 3-037-029-11 PANEL(SPEAKER) (WHITE) (AEP)
4 7-685-134-19 SCREW+P 2.6X8 TYPE2 NON-SLIT
5 7-623-508-01 LUG,3
6 7-685-548-14 SCREW +BTP 3X12 TYPE2 N-S
7 3-037-024-01 HANDLE (BLACK)
7 3-037-024-11 HANDLE (WHITE) (AEP)
8 3-037-017-01 CABINET (REAR) (BLACK)
8 3-037-017-11 CABINET (REAR) (WHITE) (AEP)
9 3-037-034-01 SPRING (HANDLE)
10 3-037-019-01 LID,BATTERY CASE (BLACK)
10 3-037-019-11 LID,BATTERY CASE (WHITE) (AEP)
11 3-372-124-01 CUSHION (BATTERY)
12 3-040-489-01 SHEET, SPEAKER
ANT1 1-501-222-81 ANTENNA, TELESCOPIC (FM, SW)
SP1 1-529-451-11 SPEAKER (7.7cm)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
6-2. CHASSIS SECTION
63
64
65
62
66
67
51
52
55
56
58
59
60
61
69
68
57
53
54
D3
51 3-037-023-01 KNOB(TONE) (BLACK)
51 3-037-023-11 KNOB(TONE) (WHITE) (AEP)
* 52 1-674-032-11 RACK RETAINER BOARD
53 3-037-021-01 KNOB(BAND) (BLACK)
53 3-037-021-11 KNOB(BAND) (WHITE) (AEP)
54 3-037-025-01 POINTER
55 3-369-170-01 RACK
* 56 3-037-018-01 CHASSIS
57 3-037-030-01 TERMINAL (+), BATTERY
* 58 A-3663-363-A MAIN BOARD, COMPLETE (EXCEPT EA)
* 58 A-3663-380-A MAIN BOARD, COMPLETE (EA)
59 3-037-028-01 HOLDER, LED
60 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
61 3-364-941-11 SCREW (+B) (2.6X5), NYLOK
62 3-037-027-01 GEAR(A), TUNING CAPACITOR
63 3-037-031-01 TERMINAL (-), BATTERY
64 3-037-020-01 KNOB(VOL) (BLACK)
64 3-037-020-11 KNOB(VOL) (WHITE) (AEP)
65 3-880-990-00 SCREW (1.7X3),FLAT,(+) SPECIAL
66 3-037-022-01 KNOB(TUNE) (BLACK)
66 3-037-022-11 KNOB(TUNE) (WHITE) (AEP)
67 3-037-523-01 PIN(TUNING CAPACITOR)
68 3-037-033-01 SPRING (GEAR)
69 3-037-032-01 GEAR(B), TUNING CAPACITOR
D3 8-719-069-94 LED TLR124 (TUNE)
