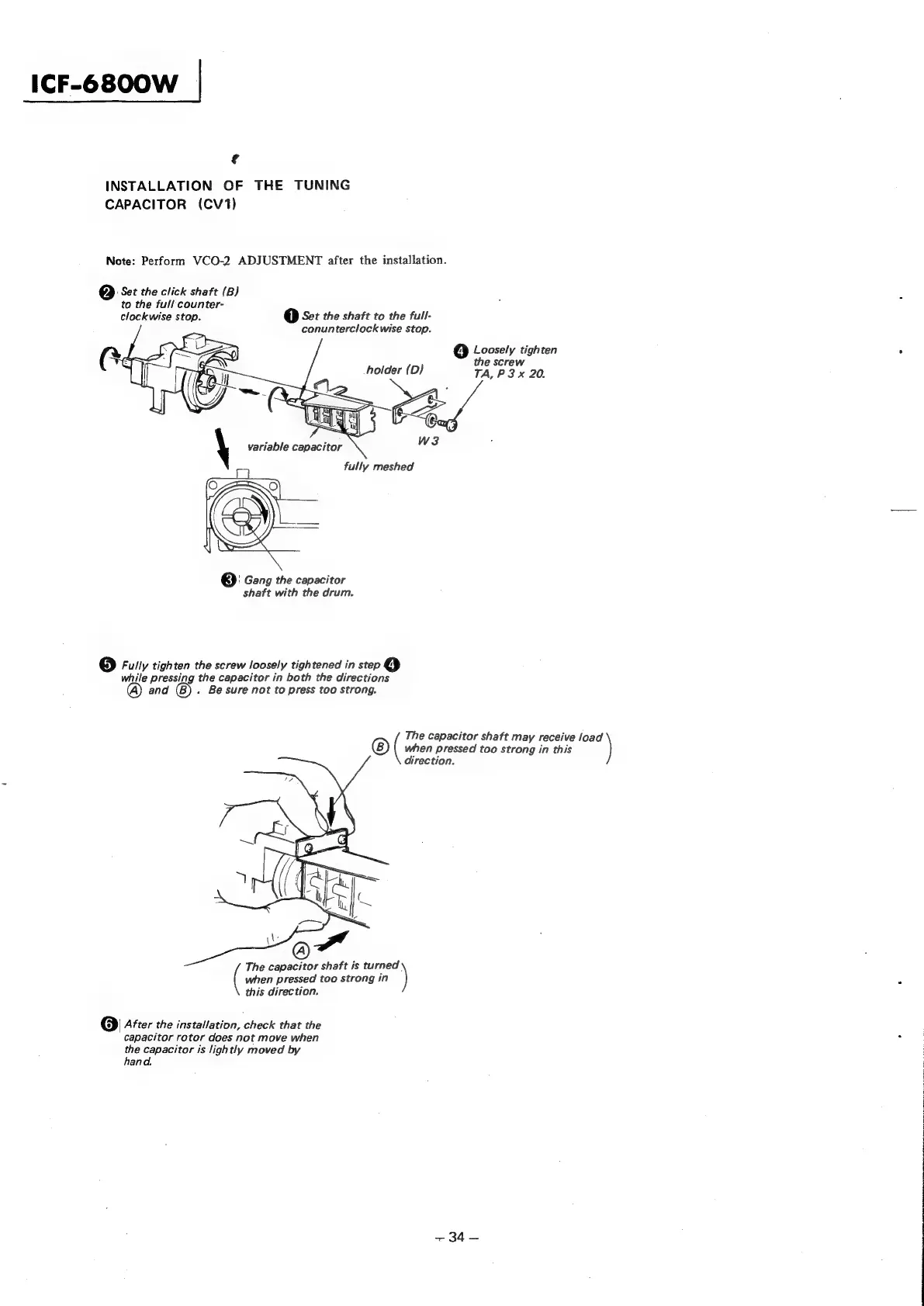

INSTALLATION OF THE TUNING
CAPACITOR (CV1)
Note: Perform VCO-2 ADJUSTMENT after the installation.
Set the click shaft (B)
to the full counter-
clockwise stop. 1) Set the shaft to the full-
conunterclock wise stop.
Loosely tighten .
th
holder (D) TA. P3x 20.
©: Gang the capacitor
shaft with the drum.
5) Fully tighten the screw loosely tightened in step o
while pressing the capacitor in both the directions
and (8) . Be sure not to press too strong.
when pressed too strong in this
( The capacitor shaft may receive load )
direction.
The capacitor shaft is turned :
when pressed too strong in
this direction.
6 After the installation, check that the
capacitor
rotor
does
not
mave
when
:
the capacitor is lightly moved by
hand.
