PRESELECTOR BOARD REMOVAL (Page 32)

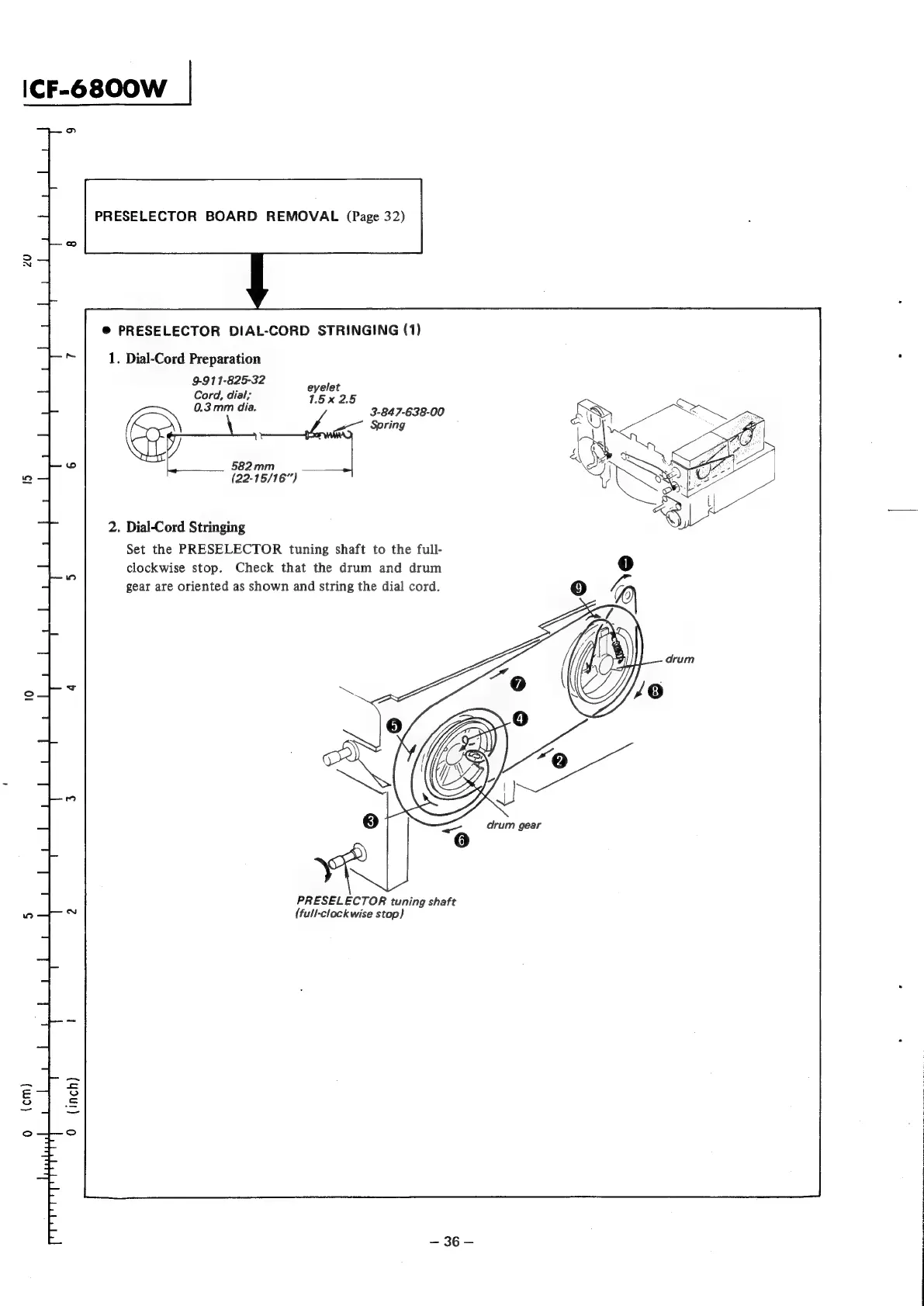

@ PRESELECTOR DIAL-CORD STRINGING (1)
1. Dial-Cord Preparation
9-911-825-32
Cord, dial;
3-847-638-00
ring
582mm
(22-15/16”)
. Dial-Cord Stringing
Set the PRESELECTOR tuning shaft to the full-
clockwise stop. Check that the drum and drum
gear are oriented as shown and string the dial cord.
PRESELECTOR tuning shaft
(full-clockwise stop}
—36—
