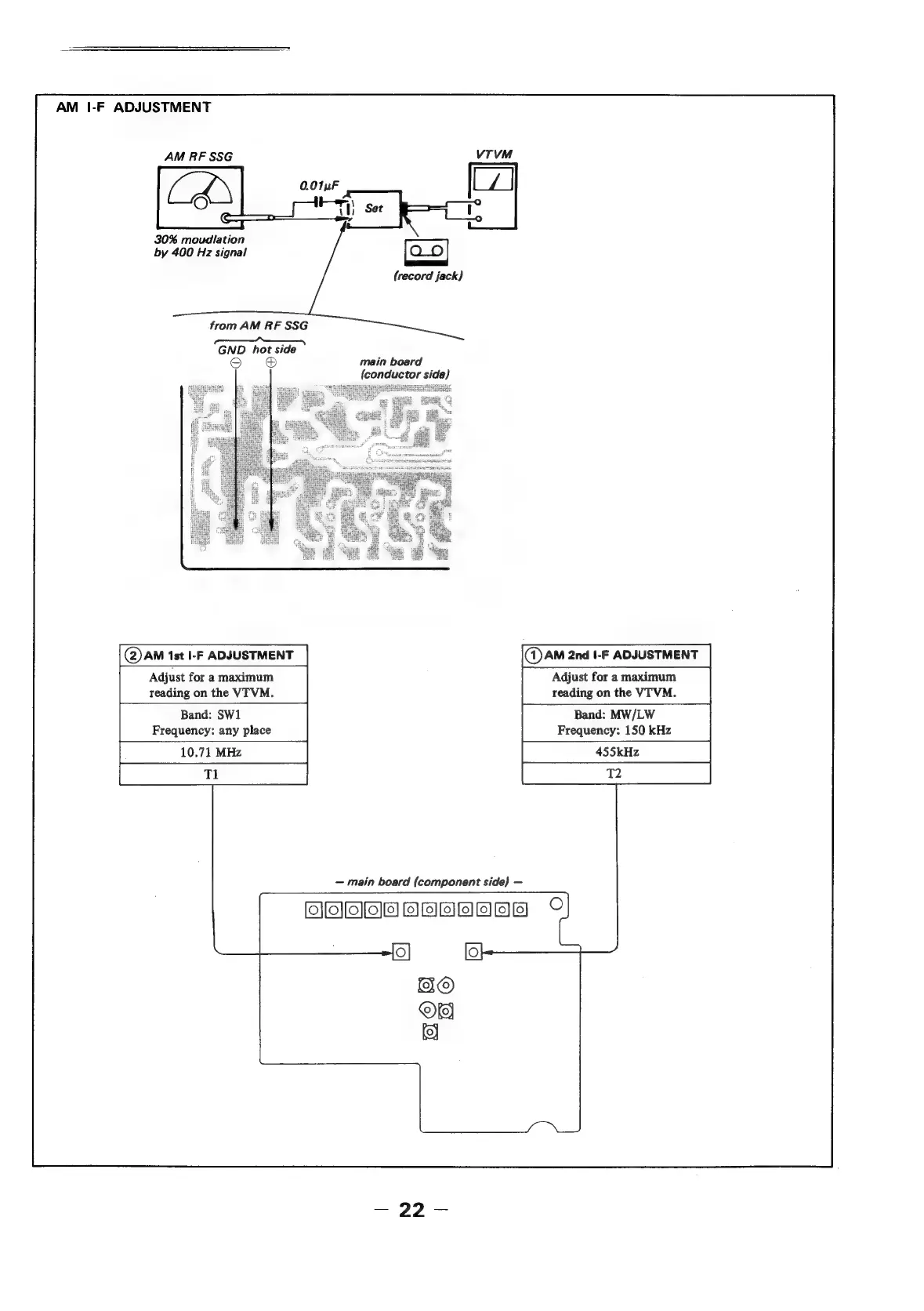

AM I-F ADJUSTMENT
AM RF SSG
30% moudilation
by 400 Hz signal
(record jack)
from AM RF SSG
a
GND hot side
i)
(@)AM 1st |-F ADJUSTMENT @)AM 2nd I-F ADJUSTMENT
Adjust for a maximum Adjust for a maximum
reading on the VTVM. reading on the VTVM.
Band: SW1 Band: MW/LW
Frequency: any place Frequency: 150 kHz
10.71 MHz 455kHz
— main board (component side} —
