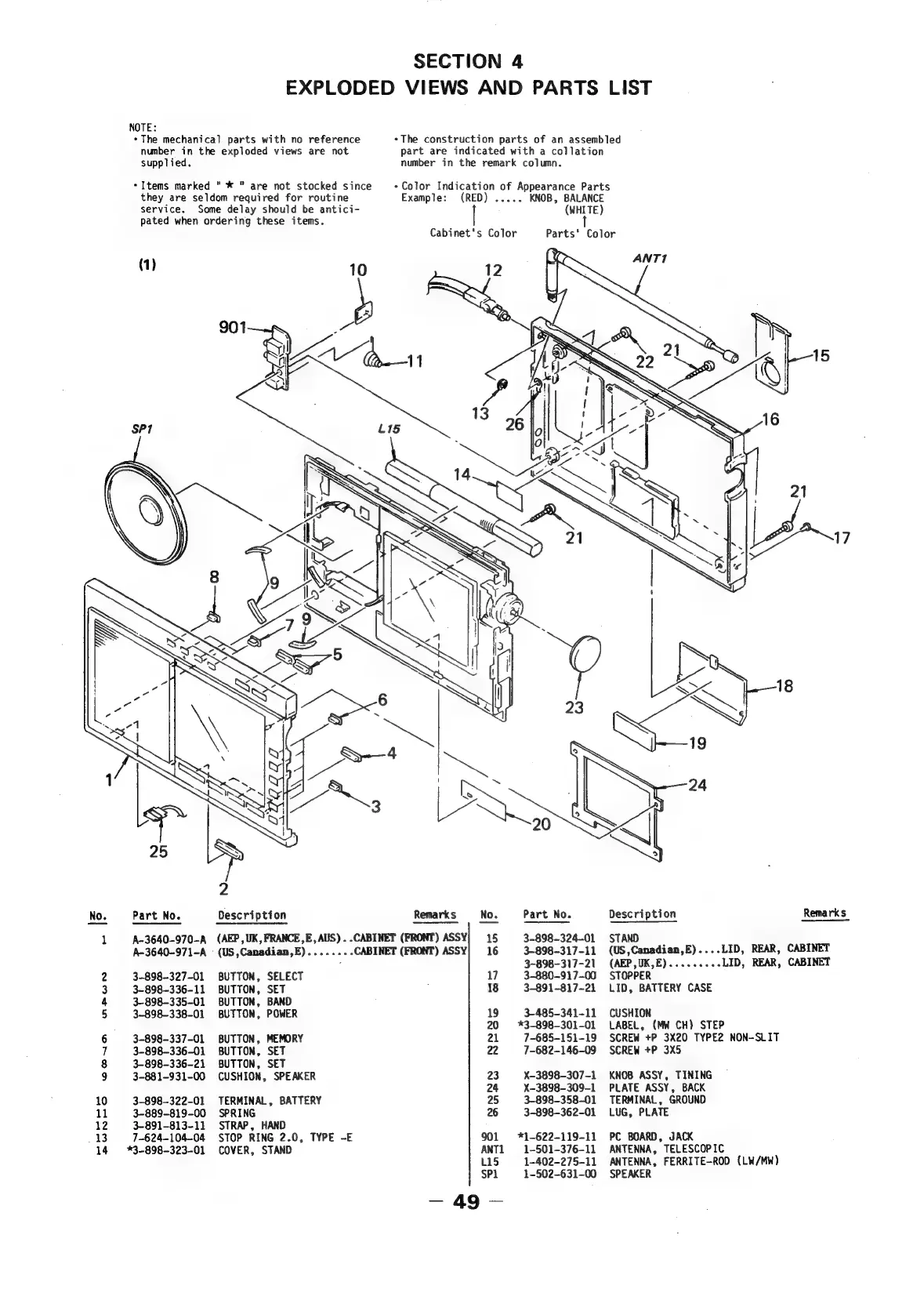

SECTION 4
EXPLODED VIEWS AND PARTS LIST
NOTE:
*The mechanical parts with no reference
number in the exploded views are not
supplied.
*Items marked "* " are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
(1) 10
*The construction parts of an assembled
part are indicated with a collation
number in the remark column.
-Cotor Indication of Appearance Parts
Example: (RED) ..... KNOB, BALANCE
(WHITE)
Cabinet's Color Parts’ Color
2
Part No. Description Remarks No. Part No. Description Remark s
A-3640-970-A (AEP,UK,FRANCE,E,AUS)..CABINET (FRONT) ASSY; 15 3-898-324-01 STAND
A-3640-971-A
(US,Canadian,E)........
CABINET
(FRONT)
ASSY)
16
3-898-317-11
(US,Camadian,E)....LID,
REAR,
CABINET
:
3~898-317-21
(AEP,UK,E).........
LID,
REAR,
CABINET
3-898-327-01 BUTTON, SELECT 7 3-880-917-00 STOPPER
3-898-336-11 BUTTON, SET 18 3-891-817-21 LID, BATTERY CASE
3-898-335-01 BUTTON, BAND
3-898-338-01 BUTTON, POWER 19 3-485-341-11 CUSHION
20 %*3-898-301-01 LABEL, (MW CH) STEP
3-898-337-01 BUTTON, MEMORY al 7-685-151-19 SCREW +P 3X20 TYPE2 NON-SLIT
3-898-336-01 BUTTON, SET 22 7-682-146-09 SCREW +P 3X5
3-898-336-21 BUTTON, SET
3-881-931-00 CUSHION, SPEAKER 23 X-3898-307-1 KNOB ASSY, TINING
24 X-3898-309-1 PLATE ASSY, BACK
3-898-322-01 TERMINAL, BATTERY 25 3-898-358-01 TERMINAL, GROUND
3-889-819-00 SPRING 26 3-898-362-01 LUG, PLATE
3-891-813-11 STRAP, HAND
7-624-104-04 STOP RING 2.0, TYPE -E 901 *1-622-119-11 PC BOARD, JACK
*3-898-323-01 COVER, STAND
ANT1 1-501-376-11
L15 1-402-275-11
SPi 1-502-631-00
ANTENNA, TELESCOPIC
ANTENNA, FERRITE-ROD (LW/MW)
SPEAKER
