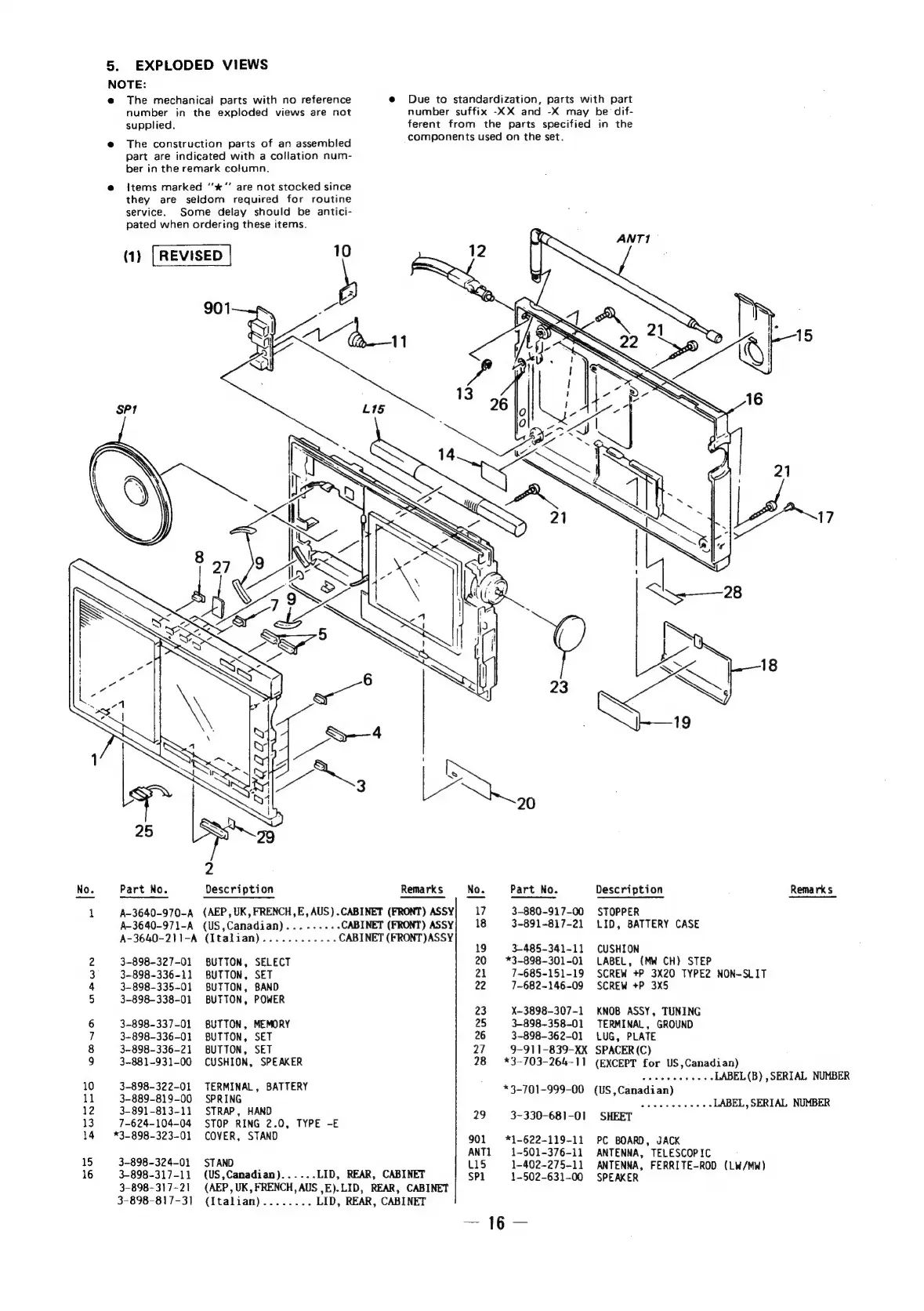

5. EXPLODED VIEWS
NOTE:
@ The mechanicai parts with no reference @ Due to standardization, parts with part
number in the exploded views are not number suffix -XX and -X may be dif-
supplied. ferent from the parts specified in the
2 m -
@ The construction parts of an assembled components used on the set
part are indicated with a collation num-
ber in the remark column.
@ items marked ‘’*"’ are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
(1) "0
25 79
2
No. Part No. Description Remarks No. Part No. Description Remarks
1 A-3640-970-A (AEP, UK,FRENCH,E,AUS).CABINET (FRONT) ASSY 17 3-880-917-00 STOPPER
A-3640-971-A (US,Canadian)......... CABINET (FRONT) ASSY 18 3-891-817-21 LID, BATTERY CASE
A-3640-211-A (Italian)............ CABINET (FRONT )ASSY
19 3+-485-341-11 CUSHION
2 3-898-327-01 BUTTON, SELECT 20 *3-898-301-01 LABEL, (MW CH) STEP
3 3-898-336-11 BUTTON, SET 21 7~685-151-19 SCREW +P 3X20 TYPE2 NON-SLIT
4 3-898-335-01 BUTTON, BAND 22 7-682-146-09 SCREW +P 3X5
5 3-898-338-01 BUTTON, POWER
23 X-3898-307-1 KNOB ASSY, TUNING
6 3-898-337-01 BUTTON, MEMORY 25 3-898-358-01 TERMINAL, GROUND
7 3-898-336-01 BUTTON, SET 26 3-898-362-01 LUG, PLATE
8 3-898-336-21 BUTTON, SET 27 9-911-839-XX SPACER (C)
9 3-881-931-00 CUSHION, SPEAKER 28 = =*3-703-264-11 (EXCEPT for US,Canadian)
10 3-898-322-01 TERMINAL, BATTERY = = = | ° %3.791-999-00 (US.Canadian) sities a eed acces
-322- ‘ *3-701-999- i
v1 3-8B0-819-00. SPRING 3-701-999-00 (US,Canadian) ne re
12 3-891-813-11 STRAP, HAND 29 +3-330-681-01 SHEETS ;
13 7-624-104-04 STOP RING 2.0, TYPE -E
14 *3~898-323-01 COVER, STAND 901 *1-622-119-11 PC BOARD, JACK
ANT1 1-501-376-11 ANTENNA, TELESCOPIC :
15
3-898-324-01
STAND
.
L15
1-402-275-11
ANTENNA,
FERRITE-ROD
(LW/MW)
16 3-898-317-11 (US,Camadian)...... LID, REAR, CABINET SP1 1-502-631-00 SPEAKER
3-898-317-21 (AEP,UK,FRENCH,AUS ,E).LID, REAR, CABINET
3-898-817-31 (Italian)........ LID, REAR, CABINET
