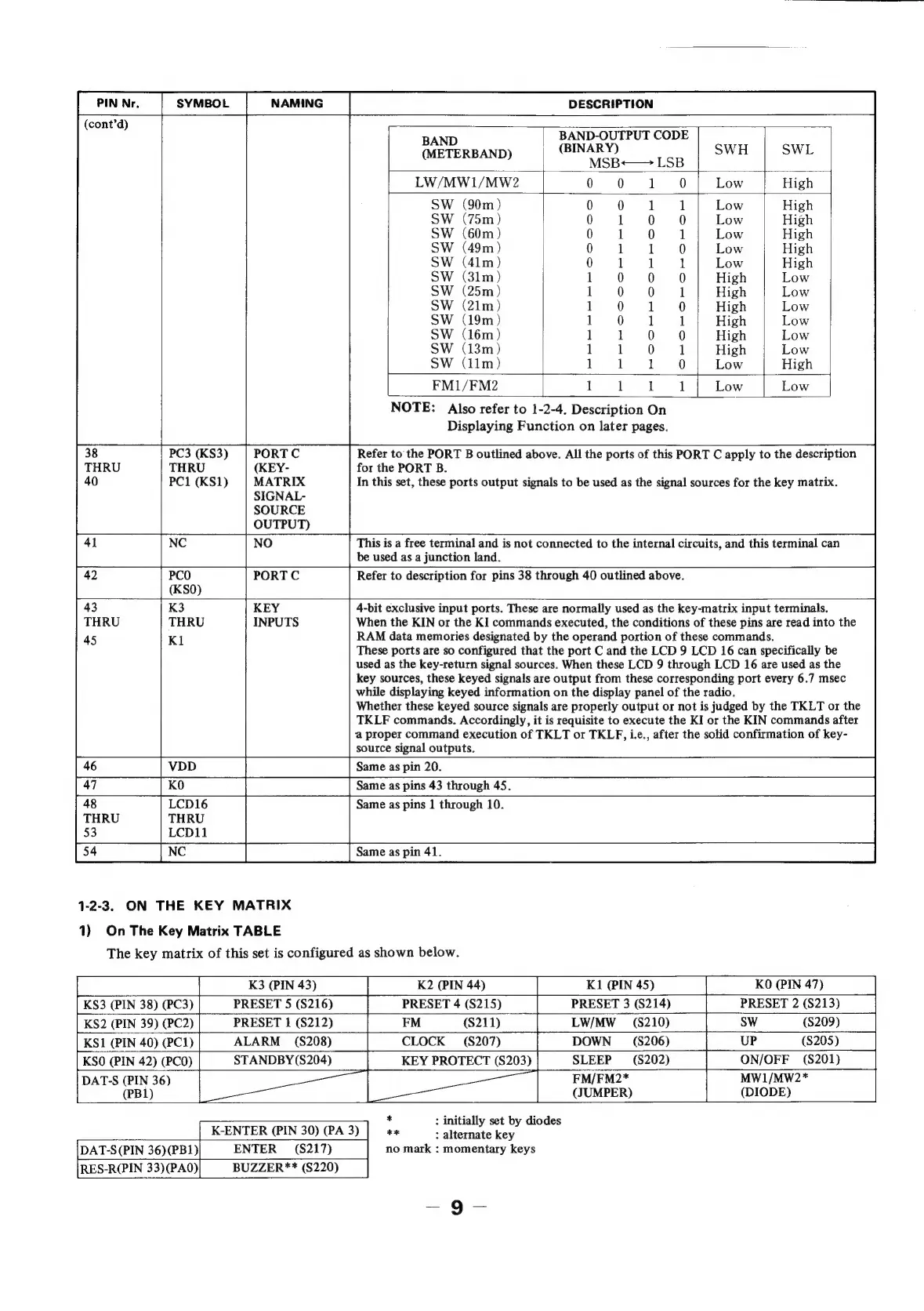

PIN Nr. NAMING DESCRIPTION
(cont'd)
BAND
BAND-OUTPUT
CODE
(BINARY)
ee MSB:<—> LSB
LW/MW1/MW2 0
SW (90m)
SW (75m)
SW (60m)
SW (49m)
SW (41m)
SW (3lm)
SW (25m)
SW (21m)
SW (19m)
SW (16m)
SW (13m)
SW (11m)
FM1/FM2
PR SH OOO OR SE Ee oO] oO meMOOrF ROOF ROOF |e
mele eee DOO OO
Be POrROrORFrOrF OF OF! ao
1 1
NOTE: Also refer to 1-2-4. Description On
Displaying Function on later pages.
PC3 (KS3) Refer to the PORT B outlined above. All the ports of this PORT C apply to the description
THRU for the PORT B.
PC1 (KS1) In this set, these ports output signals to be used as the signal sources for the key matrix.
This is a free terminal and is not connected to the internal circuits, and this terminal can
be used as a junction land.
Refer to description for pins 38 through 40 outlined above.
KEY 4-bit exclusive input ports. These are normally used as the key-matrix input terminals.
INPUTS When the KIN or the KI commands executed, the conditions of these pins are read into the
RAM data memories designated by the operand portion of these commands.
These ports are so configured that the port C and the LCD 9 LCD 16 can specifically be
used as the key-return signal sources. When these LCD 9 through LCD 16 are used as the
key sources, these keyed signals are output from these corresponding port every 6.7 msec
while displaying keyed information on the display panel of the radio.
Whether these keyed source signals are properly output or not is judged by the TKLT or the
TKLF commands. Accordingly, it is requisite to execute the KI or the KIN commands after
‘a proper command execution of TKLT or TKLF, i.e., after the solid confirmation of key-
source signal outputs.
Same as pin 20.
Same as pins 43 through 45.
Same as pins 1 through 10.
Same as pin 41.
1-2-3. ON THE KEY MATRIX
1) On The Key Matrix TABLE
The key matrix of this set is configured as shown below.
K3 (PIN 43) K2 (PIN 44) K1 (PIN 45) KO (PIN 47) :
= (PIN 38) (PC3) PRESET 5 (S216) PRESET 4 (S215) PRESET 3 (S214) | PRESET 2 (S213)
| KS2 (PIN 39) (PC2) PRESET 1 (S212) FM (S211) LW/MW (S210) sw (S209)
| KS1 (PIN 40) (PC1) ALARM (S208) CLOCK (S207) | | DOWN _ (S206) UP (S205) |
KSO (PIN 42) (PCO) STANDBY (S204) KEY PROTECT (S203) SLEEP (S202) i ON/OFF (S201) |
DAT-S
(PIN
36)
FM/FM2*
MW1/MW2*
(PB1)
(JUMPER)
(DIODE)
* :
initially
set by
diodes
K-ENTER (PIN
30) (PA 3)
eK :
alternate
key
DAT-S(PIN
36)(PB1)
ENTER
(S217)
no
mark
:
momentary
keys
RES-R(PIN 33)(PA0) BUZZER** (S220)
