NOTE:

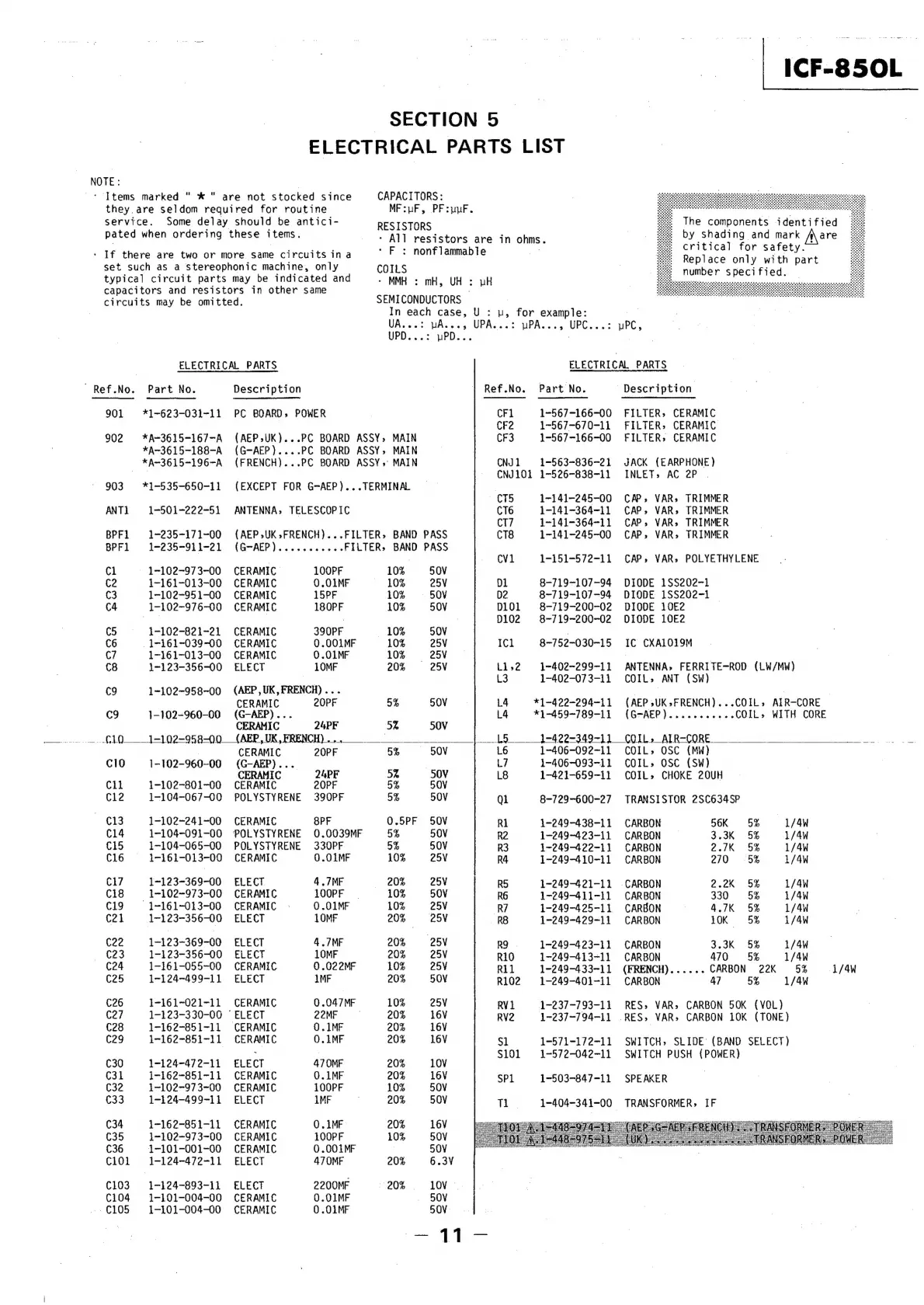

SECTION 5
ELECTRICAL PARTS LIST
ICF-850L
* Items marked " * " are not stocked since CAPACITORS:
they. are seldom required for routine MF:uF, PF:upF.
service. Some delay should be antici- RESISTORS The components identified
pated when ordering these items. - All resistors are in ohms. by shading and mark A\ are
- If there are two or more same circuits ina ‘ F : nonflammabte one ie
set such as a stereophonic machine, only COILS P
typical circuit parts may be indicated and - MMH : mH, UH : uH
capacitors and resistors in other same ;
circuits may be omitted. SEMICONDUCTORS
In each case, U : u, for example: :
UR ecied UAS 5° UPAs..2 PAs..5. UPC...2 PC;
UPD. 0%: UPDs..4 .
ELECTRICAL PARTS ELECTRICAL PARTS
Ref.No. Part No. Description Ref.No. Part No. Description
901 *1-623-031-11 PC BOARD. POWER CF1 1-567-166-00 FILTER» CERAMIC
| CF2 1-567-670-11 FILTER» CERAMIC
902 *A-3615-167-A (AEP;UK)...PC BOARD ASSY, MAIN CF3 1-567-166-00 FILTER, CERAMIC
*A-3615-188-A (G-AEP)....PC BOARD ASSY, MAIN |
*A-3615-196-A (FRENCH)...PC BOARD ASSY» MAIN CNJ1 1-563-836-21 JACK (EARPHONE)
ne CNJ101 1-526-838-11 INLET, AC 2P
903 *1-535-650-11 (EXCEPT FOR G-AEP)...TERMINAL
ANTL 1-501-222-51 ANTENNA, TELESCOPIC CT6 1-141-364-11 CAP, VAR» TRIMMER
CT7 1-141-364-11 CAP. VARs TRIMMER
BPF1 1-235-171-00 {AEP.UK»FRENCH)...FILTER» BAND PASS CT8 1-141-245-00 CAP, VAR» TRIMMER
BPF1l 1-235-911-21 (G—AEP)........0.. FILTER,» BAND PASS
| cV1 1-151-572-11 CAP. VAR» POLYETHYLENE
Cl — 1-102-973-00 CERAMIC LOOPF 10% 50V
C2 1-161-013-00 CERAMIC 0O.O1MF 10% 25V D1 8-719-107-94 DIODE 1SS202-1
C3 1-102-951-00 CERAMIC 15PF 10% — 50V D2 8-719-107-94 DIODE 1SS202-1 |
C4 1-102-976-00 CERAMIC 180PF 10% 50V D101 8-719-200-02 DIODE 10&2
a | : | 9102 8-719-200-02 DIODE 10E2
C5 1-102-821-21 CERAMIC 390PF 10% 50V
C6 1-161-039-00 CERAMIC 0.Q001MF 10% 25V IC1 8-752-030-15 IC CXALO19M
C? 1-161-013-00 CERAMIC 0.O1MF 10% 25V |
C8 1-123-356-00 ELECT LOMF 20% 25V L1,2 1-402-299-11 ANTENNA, FERRITE-ROD (LW/MW)
_ L3 1-402-073-11 COIL, ANT (SW)
c9 1-102-958-00 (AEP,UK, FRENCH)... a 7
CERAMIC 2OPF 5% 50V L4 *1~422-294-11 (AEP>UKsFRENCH)...COIL>» AIR-CORE
C9 1-102-960-00 (G-AEP)... L4 *1-459-789-11 (G-AEP)...........COIL> WITH CORE
CERAMIC 24PF 5% 50V
_C10.__1-102-958-00 (AEP, UK, FRENCH)... ae eae: eee Lo ____ 1-422-349-]) COIL, AIR-CORE a
7 CERAMIC 20PF 5% 50V L6 1-406-092~11 COIL, OSC (MW)
C10 1-102-960-00 (G-AEP)... | L7 1-406-093-11 COIL, OSC (SW)
CERAMIC 24PF 5h 50V L8 1-421-659-11 COIL» CHOKE 20UH
Cil 1-102-801-00 CERAMIC 20PF 5% 50V
Cl2 1-104-067-00 POLYSTYRENE 390PF 5% 50V Qi 8-729-600-27 TRANSISTOR 2SC634SP
C13 1-102-241-00 CERAMIC 8PF O.5PF 50V RL 1-249-438-11 CARBON 56K 45% 1/4W
C14 1-104-091-00 POLYSTYRENE 0.0039MF 5% 50V R2 1-249-423-11 CARBON 3.3K 5% 1/4W
C15 1-104-065-00 POLYSTYRENE 330PF 5% 50V R3 1-249-422-11 CARBON 2.7K 5% 1/4W
C16 1-161-013-00 CERAMIC O.01MF 10% 25V R4. 1-249-410-11 CARBON 270 3=—- 55% 1/4W
Cl7 1-123-369-00 ELECT 4.7MF 20% 25V R5 1-249-421-11 CARBON 2.2K 5% 1/4W
Ci8 = 1-102-973-00 CERAMIC 1OOPF 10% 50V R6 1-249-411-11 CARBON 330 65% 1/4W
C19 1-161-013-00 CERAMIC 0 .01MF 10% 25V R7 1-249-425-11 CARBON 4.7K 5% 1/4W
C21 =. 1-123-356-00 ELECT 1LOMF 20% 25V RS 1-249-429-11 CARBON 10K 65% ~~ /4W
C22 1-123-369-00 ELECT 4.7MF 20% 25V RO. 1-249-423-11 CARBON 3.3K 5% 1/4W
C23 1-123-356-00 ELECT 1OMF 20% 25V R10 1-249-413-11 CARBON 470 = 55% 1/4W
C24 1-161-055-00 CERAMIC 0 .022MF 102 25V Rll 1-249-433-11 (FRENCH)...... CARBON 22K 5% 1/4W
C25 0 1-124-499-11 ELECT IMF 20% 50V R102 1-249-401-11 CARBON 47 5% 1/4W |
C26 1-161-021-11 CERAMIC 0.047MF 10% 25V RV1 - 1-237-793-11 RES» VAR» CARBON 50K (VOL)
C27 1-123-330-0060 © ELECT 22MF 20% 16V RV2 1-237-794-11 . RES» VAR» CARBON 10K (TONE)
C28 1-162-851-11 CERAMIC 0.1MF 20% 16V |
C29 A-162-851-11 CERAMIC 0.1MF 20% = 16V $1 1-571-172-11 SWITCH, SLIDE (BAND SELECT)
: | $101 1-572-042-11 SWITCH PUSH (POWER)
C30 1-124-472-11 ELECT 470MF 20% 10V
C31 1-162-851-11 CERAMIC O.1MF 20% 16V SP1 1-503-847-11 SPEAKER
C32 1-102-973-00 CERAMIC 1O0PF 10% 50V
C33 1-124-499-11 ELECT LMF 20% 50V T1 1-404-341-00 TRANSFORMER, IF
C34 1-162-851-11 CERAMIC O.1MF 20% 16V Ae “(REP SG=AED PRENCH
C35 1~102-973-00 CERAMIC LOOPF 10% 50V Wo
C36 1-101-001-00 CERAMIC 0.001MF 50V owe
C101 1-124-472-11 ELECT 470MF 20% 6.3V
C103): 1-124-893-11 ELECT 2200MF 20% 10V
C104 1-101-004-00 CERAMIC 0.01MF 50V
C105 1-101-004-00 CERAMIC 0.01MF 50V
