ICF-C111
SECTION 6
EXPLODED VIEWS
Ref. No. Part No. Description Remark

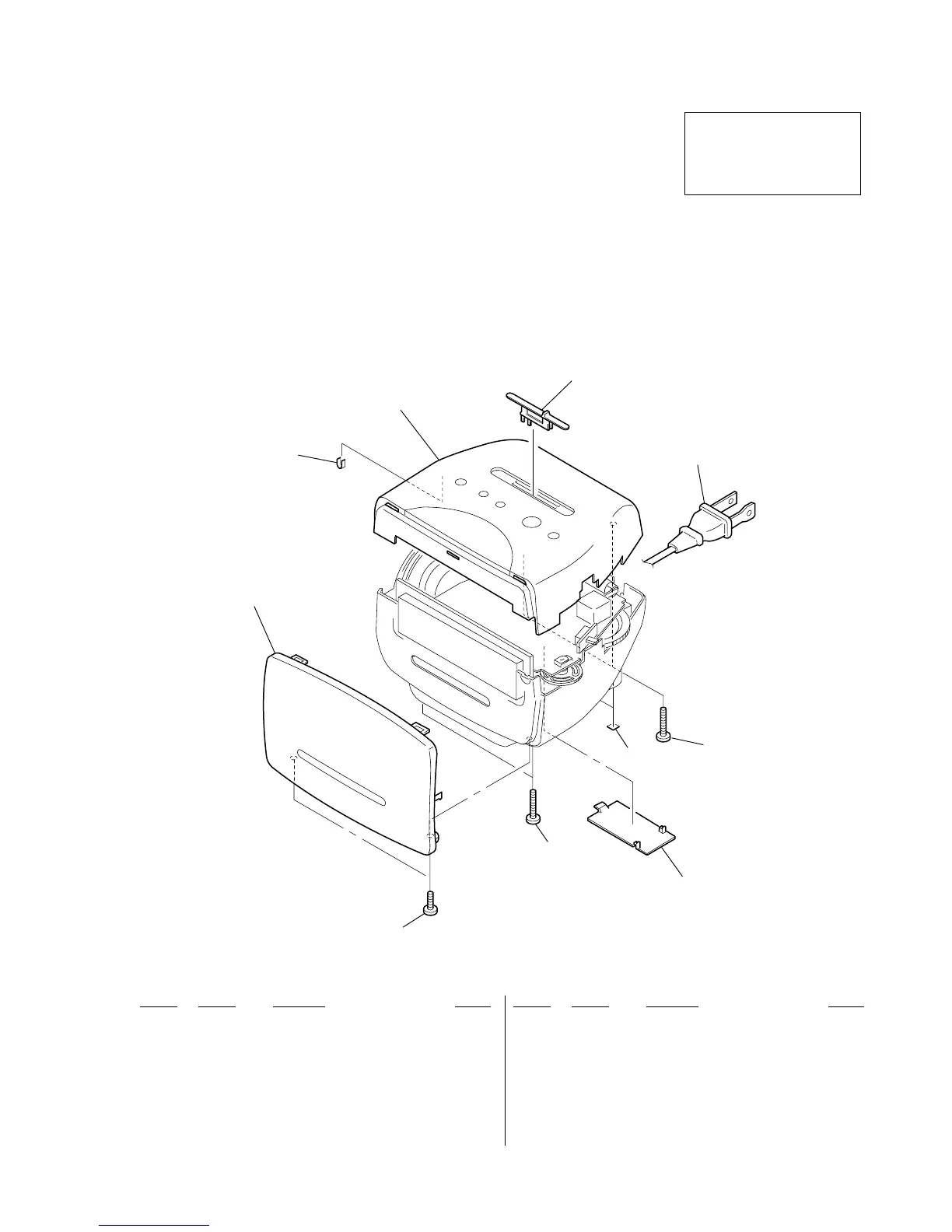

6-1. CABINET (UPPER) SECTION
Ref. No. Part No. Description Remark
1 3-226-587-01 KNOB (FUNCTION) (BLACK)
1 3-226-587-11 KNOB (FUNCTION) (WHITE)
2 3-226-584-01 PANEL (FRONT) (E92,MX)
2 3-226-584-11 PANEL (FRONT) (AR,E13,SP)
3 X-3380-019-1 UPPER ASSY, CABINET (BLACK) (E92)
3 X-3380-019-2 UPPER ASSY, CABINET (WHITE) (E92,MX)
3 X-3380-020-1 UPPER ASSY, CABINET (BLACK) (AR,E13,SP)
3 X-3380-020-2 UPPER ASSY, CABINET (WHITE) (AR,SP)
4 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
0 5 1-555-795-00 CORD, POWER (E13,SP)
0 5 1-769-339-22 CORD, POWER (E92,MX)
0 5 1-790-124-11 CORD, POWER (AR)
6 7-685-153-19 SCREW +P 3X30 TYPE2 NON-SLIT
7 3-368-852-01 FOOT
8 3-369-135-21 LID, BATTERY CASE
9 3-515-102-31 CUSHION
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Abbreviation
AR : Argentina model
E13 : AC 220 – 230 V area in E model
E92 : AC 120 V area in E model
MX : Mexican model
SP : Singapore model
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories and packing materials are
given in the last of this parts list.
