Sony ICF-C111 - Lower Cabinet Exploded View

16
ICF-C111

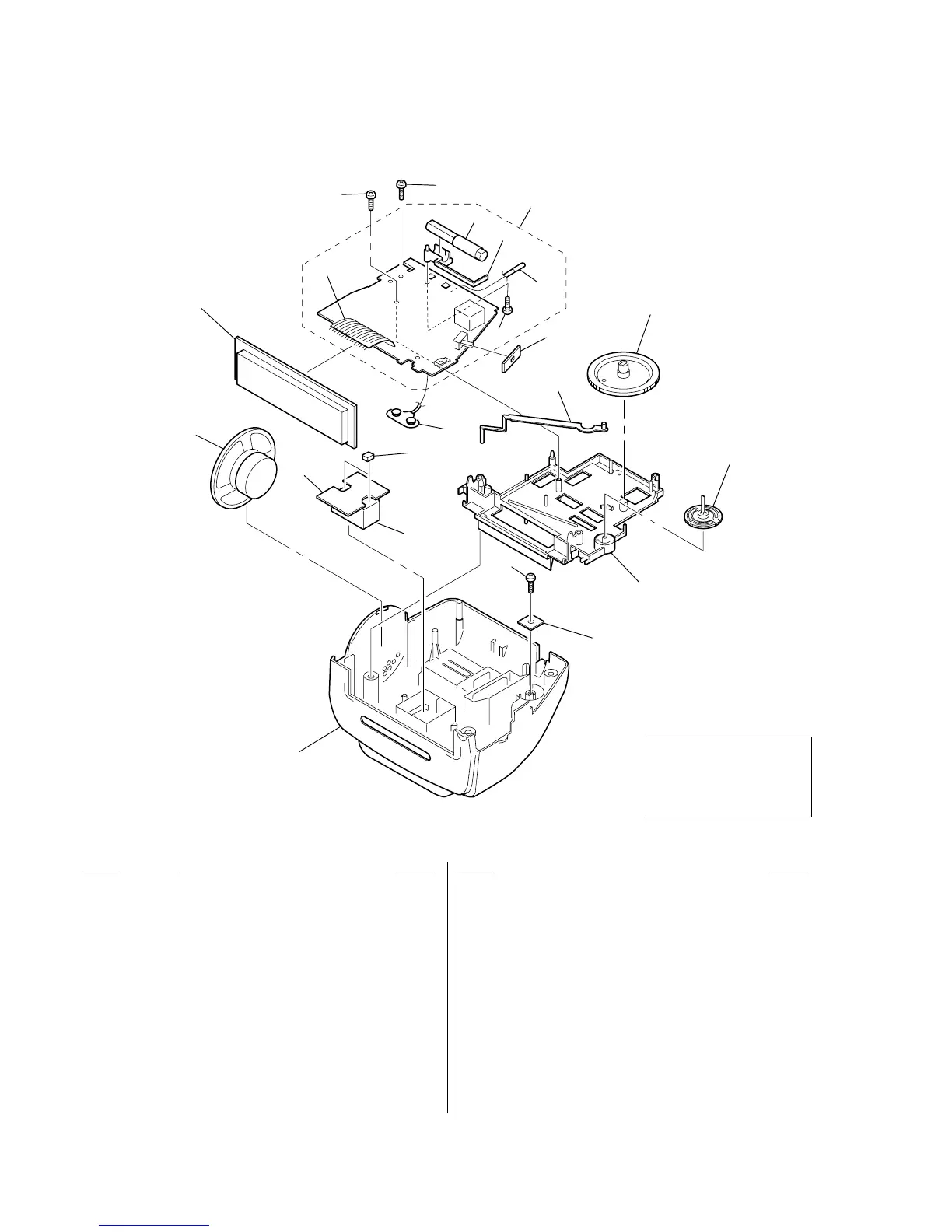

6-2. CABINET (LOWER) SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-226-583-01 CABINET (LOWER) (BLACK) (E92)
51 3-226-583-11 CABINET (LOWER) (WHITE) (E92,MX)
51 3-226-583-21 CABINET (LOWER) (BLACK) (AR,E13,SP)
51 3-226-583-31 CABINET (LOWER) (WHITE) (AR,SP)
* 52 1-680-065-11 TRANSFORMER BOARD
53 1-535-804-21 SNAP, BATTERY
54 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
* 55 A-3052-458-A MAIN BOARD COMPLETE (E13)
* 55 A-3683-274-A MAIN BOARD COMPLETE (E92,MX)
* 55 A-3683-279-A MAIN BOARD COMPLETE (AR,SP)
56 3-226-590-01 HOLDER (ANTENNA)
57 3-933-547-01 SHEET (BAND)
58 3-226-588-01 KNOB (TUNING) (BLACK)
58 3-226-588-11 KNOB (TUNING) (WHITE)
59 3-226-589-01 POINTER
60 3-919-268-01 KNOB (VOL) (BLACK)
60 3-919-268-11 KNOB (VOL) (WHITE)
61 3-226-585-01 CHASSIS
62 3-553-567-00 CUSHION
63 1-754-135-11 ANTENNA (WIRE)
LED101 8-749-016-86 LED SL-3998-78T (E92,MX)
LED101 8-749-016-87 LED SL-3998-79T (AR,E13,SP)
SP1 1-529-456-11 SPEAKER (6.6cm)
0 T2 1-433-573-11 TRANSFORMER, POWER (E92,MX)
0 T2 1-433-574-21 TRANSFORMER, POWER (AR,E13,SP)
W703 1-757-686-11 CORD, CONNECTION (17 CORE)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
51
52
62
SP1
L1
T2
LED101
W703
not supplied
53
54
54
55
57
63
56
54
58
59
60
61
54
