Sony ICF-C111 - Servicing Notes; Cord Dressing (Power Cord); Pointer Alignment

3
ICF-C111
SECTION 1
SERVICING NOTES

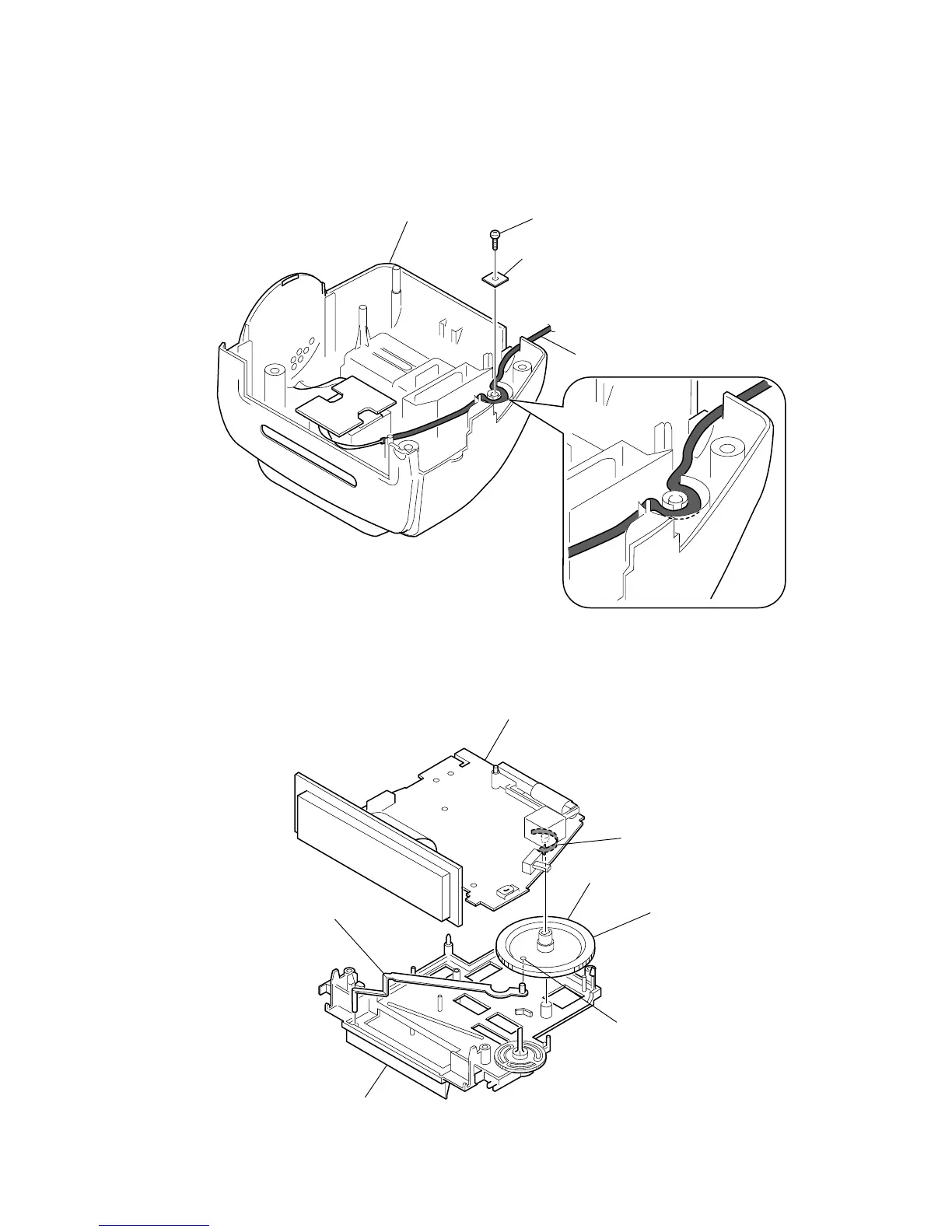

1-1. CORD DRESSING
(POWER CORD)
1) Connect the power cord as shown in the figure.
2) Mount the chassis with screws (P 3 × 10).
Note: Tighten completely the screws (P 3 × 10).
1-2. POINTER ALIGNMENT
cabinet (lower)
screw (P 3x10)
pwb, power cord retainer
power cord
1 Turn this in the arrow direction
until stopped.
3 Fit the protrusion on the
pointer in the hole A.
4 Align the notch on the bos
s
of the knob (turning) with
the direction of CV1.
5 MAIN board
knob (tuning)
chassis section
2 Fit the pointer in the groove.
A
