Sony ICF-C111 - Adjustment Location Guide

9
ICF-C111
Adjustment Location:
S1
BAND
FM
AM
CN701
SP1
(SPEAKER)
SP1
1
6
CT3
CT1
CT2
CT4
CV1
TUNING
L3
L1
L4
T1
L2
VR1
CT2, L2
AM
FREQUENCY
COVERAGE
ADJUSTMENT
CT4, L4
FM
FREQUENCY
COVERAGE
ADJUSTMENT
FM
LEAD WIRE
ANTENNA
CT1, L1
AM
TRACKING
ADJUSTMENT
CT3, L3
FM
TRACKING
ADJUSTMENT
T1
AM
IF
ADJUSTMENT

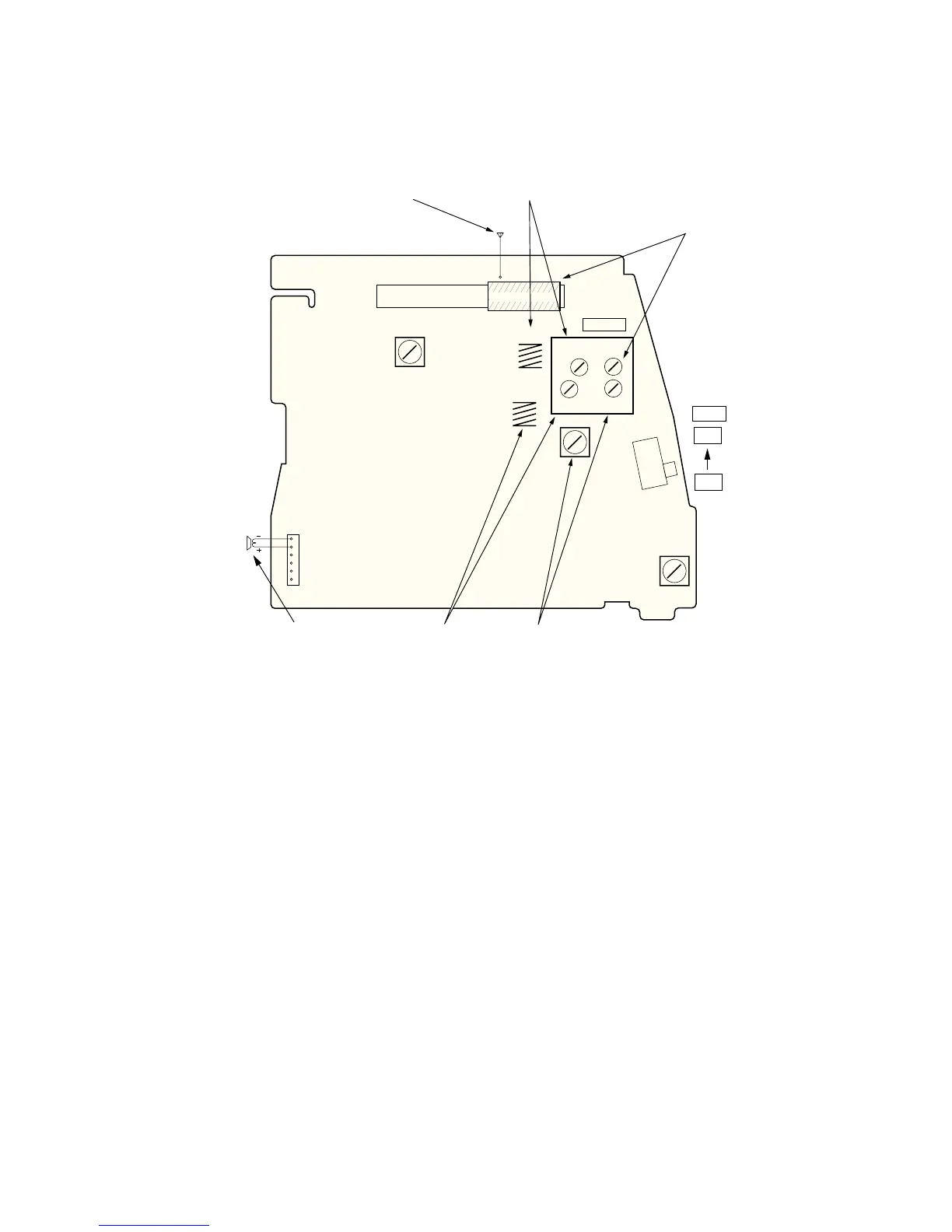

– MAIN board (component side) –
