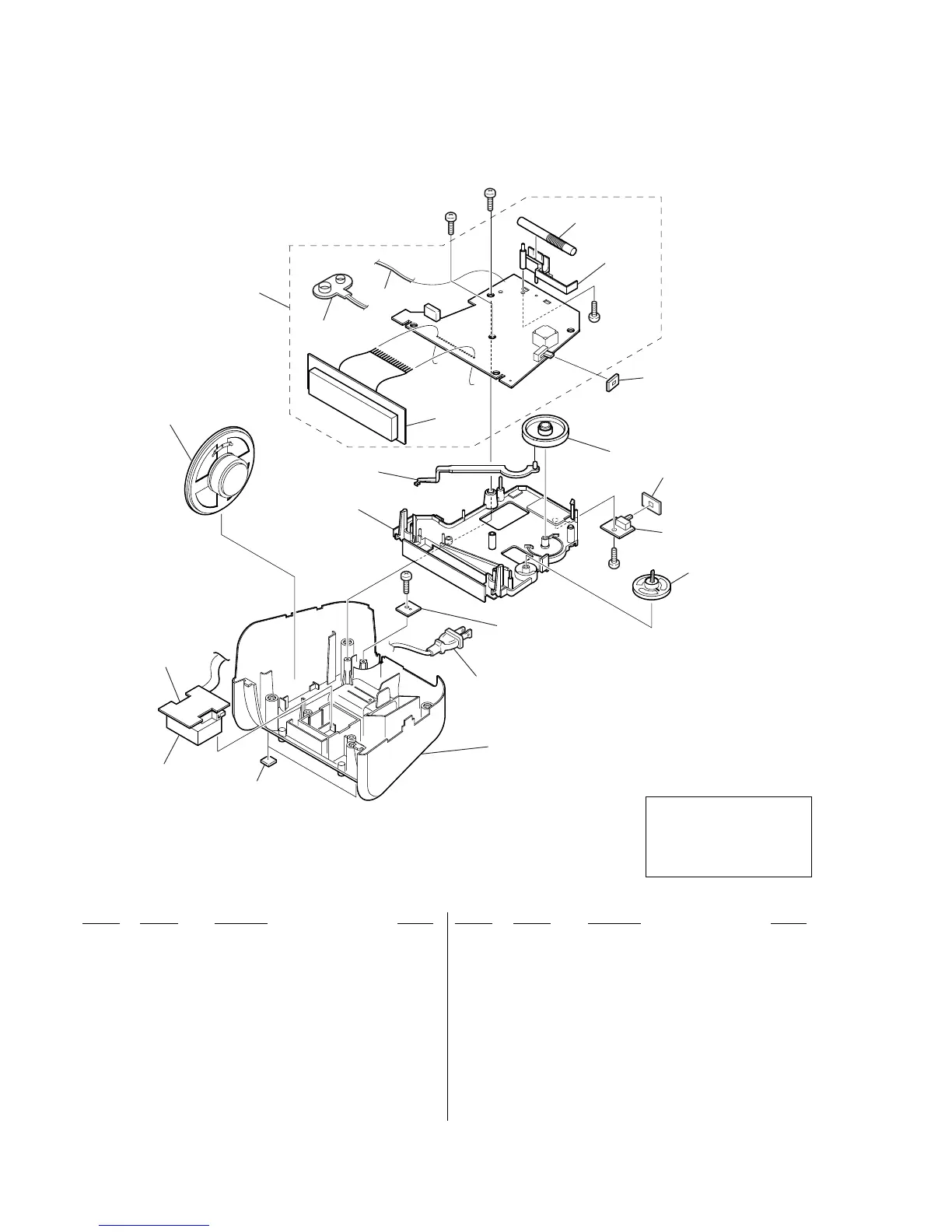

6-2. MAIN BOARD SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
52
51
53
62
54
55
56
57
58
59
59
60
61
#3
#3
#3
#3
#3
L4
not supplied
SP1
LED101
T301
not supplied
(POWER CORD RETAINER board)
not supplied
(SWITCH board
)
51 3-919-268-01 KNOB (VOL) (BLACK)...(BLACK)
51 3-919-268-11 KNOB (VOL) (WHITE)...(WHITE)
52 3-246-784-01 CABINET (LOWER) (BLACK)...(BLACK)
52 3-246-784-11 CABINET (LOWER) (WHITE)...(WHITE)
53 3-246-344-11 FOOT, RUBBER
0 54 1-769-339-22 CORD, POWER
* 55 A-3347-218-A MAIN BOARD, COMPLETE (BLACK)
* 55 A-3663-993-A MAIN BOARD, COMPLETE (WHITE)
56 3-226-590-01 HOLDER (ANTENNA)
57 1-535-804-71 SNAP, BATTERY
58 1-754-135-11 ANTENNA (WIRE)
59 3-553-567-00 CUSHION
60 3-246-786-01 KNOB (TUNING) (BLACK)...(BLACK)
60 3-246-786-11 KNOB (TUNING) (WHITE)...(WHITE)
61 3-246-787-01 POINTER
62 A-3347-348-A TRANSFORMER BOARD, COMPLETE
L4 1-419-532-41 COIL, FERRITE-ROD ANTENNA (AM)
LED101 6-500-504-01 LED COG509T0A1
SP1 1-529-456-13 SPEAKER (6.6cm)
0 T301 1-433-573-21 TRANSFORMER, POWER
#3 7-685-647-79 SCREW +P 3X10 TYPE2 NON-SLIT
