Sony ICF-C290 - Setting and Knob Adjustments; Power Cord Installation; Knob Setting Procedure

– 4 –

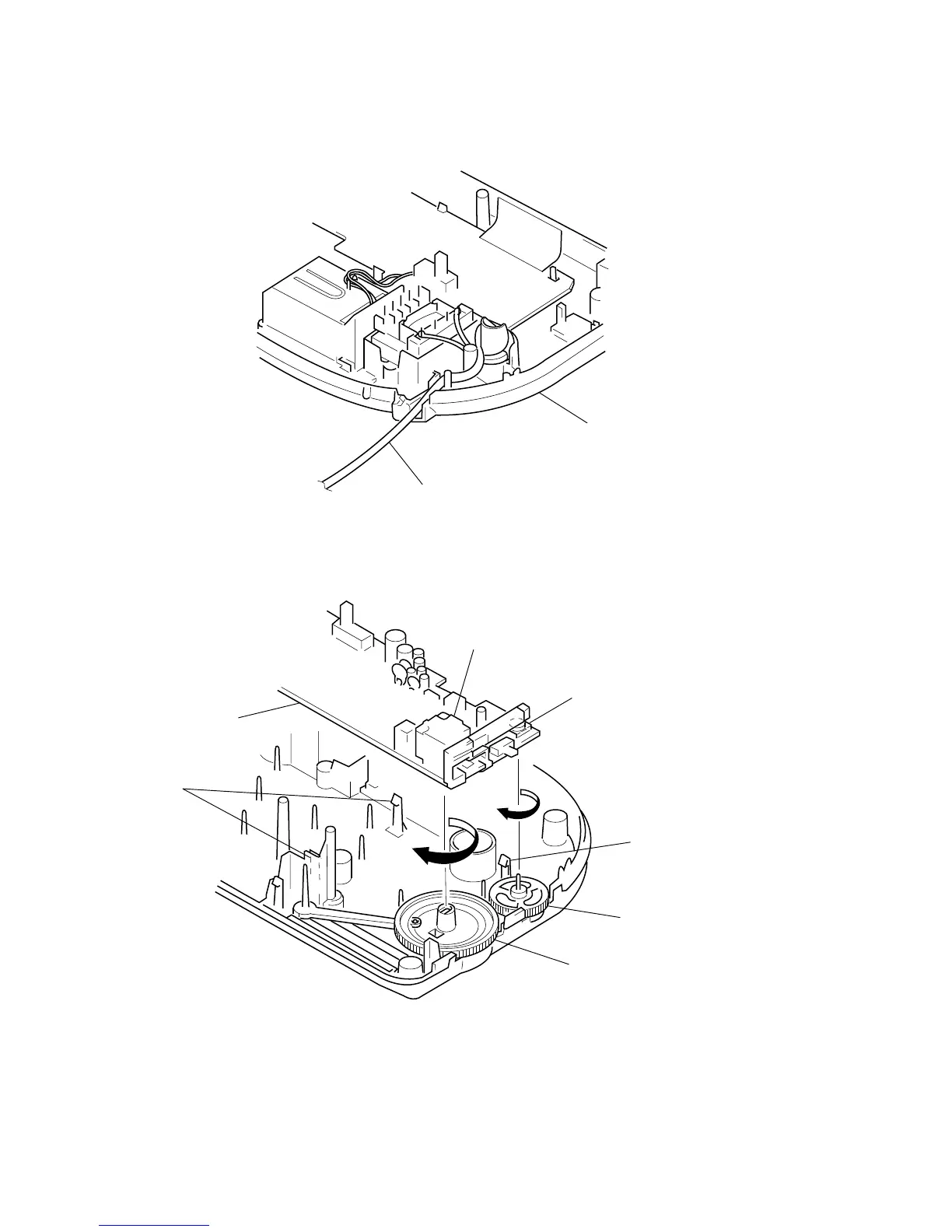

Set the power cord as illustrated below, then install the lower cabinet.
SETTING THE POWER CORD
SECTION 2
SETTING
KNOB SETTING
7 claws
5 MAIN board
3 Turn shaft of CV1 to the
arrow A direction fully.
4 Turn RV1 to the arrow B
direction fully.
6 claw
2 Turn the knob (VOL) to the
arrow B direction fully.
1 Turn the knob (tuning) to the
arrow A direction fully.
A
B
lower cabine
t
power cord
