Sony ICF-C490 - 5 Exploded Views; Cabinet Section; Chassis Section

ICF-C490
1212
53
54
66
59
65
65
PC1
57
58
60
61
62
63
64
55
55
52
51
W7
main board
not supplied
L1
#1
#1
#1
#3
SP1
T301
LED101

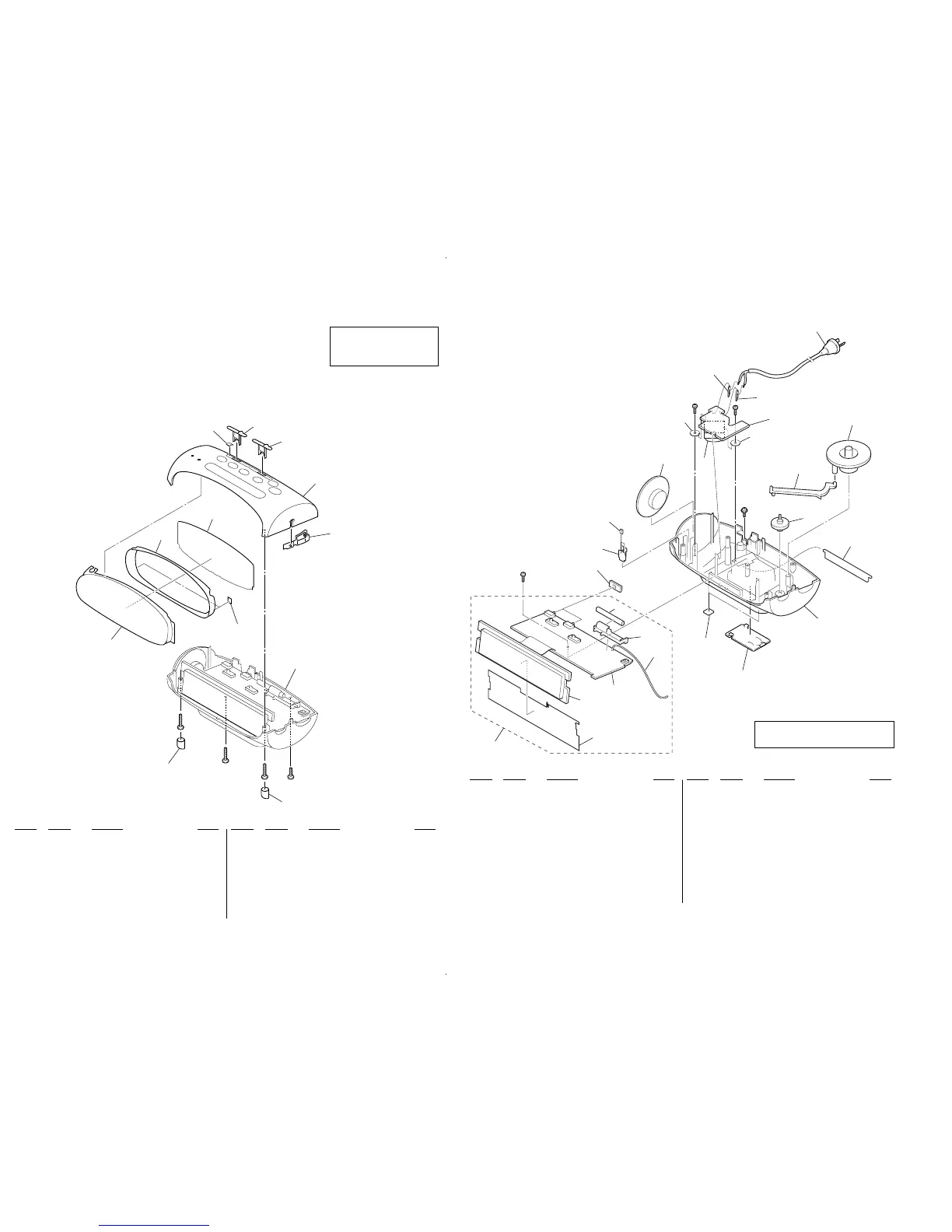

SECTION 5
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-239-999-01 CAP (R) (AUS)
1 3-239-999-11 CAP (R) (SP)
2 3-239-996-01 CAP (L) (AUS)
2 3-239-996-11 CAP (L) (SP)
3 3-239-975-01 PLATE, TRANSPARENT
4 3-239-976-01 FRAME, ORNAMENTAL
5 3-239-978-01 PLATE, SCALE (AUS)
5 3-239-978-11 PLATE, SCALE (SP)
6 3-239-972-01 KNOB (CLOCK) (AUS)
6 3-239-972-11 KNOB (CLOCK) (SP)
7 3-239-971-01 KNOB (ALARM) (AUS)
7 3-239-971-11 KNOB (ALARM) (SP)
8 X-3382-433-1 CABINET (UPPER) ASSY (AUS)
8 X-3382-512-1 CABINET (UPPER) ASSY (SP)
9 3-239-977-01 KNOB (BAND)
#1 7-685-649-79 SCREW +BV 3X14, TYPE2, IT-3
#2 7-685-153-19 SCREW +P 3X30 TYPE2 NON-SLIT
3
4
5
6
7
8
9
2
1
#2
chassis section
not supplied
not supplied
#2
#2
#1
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 51 A-3021-915-A MAIN BOARD, COMPLETE (SP)
* 51 A-3021-923-A MAIN BOARD, COMPLETE (AUS)
52 3-239-974-01 HOLDER (FERRITE-ROD ANTENNA)
53 3-933-547-01 SHEET (BAND)
* 54 1-684-735-11 LED BOARD
55 3-231-250-01 WASHER
57 3-239-970-01 KNOB (TUNING)
58 3-239-973-01 POINTER
* 59 1-684-734-11 POWER BOARD
60 3-919-268-01 KNOB (VOL)
61 3-239-968-01 STAND
62 3-239-967-11 CABINET (LOWER) (SP)
62 3-239-967-31 CABINET (LOWER) (AUS)
63 3-369-135-21 LID, BATTERY CASE
64 3-368-852-01 FOOT
65 1-535-771-31 TERMINAL
66 3-243-988-01 SPACER
L1 1-419-532-11 COIL, FERRITE-ROD ANTENNA (MW)
LED101 6-500-195-01 LED COG3140E1 (LED-DISPLAY) (SP)
LED101 6-500-196-01 LED COG3140A1 (LED-DISPLAY) (AUS)
0 PC1 1-790-431-12 CORD, POWER (AUS)
0 PC1 1-555-795-00 CORD, POWER (SP)
SP1 1-529-456-13 SPEAKER (6.6cm)
0 T301 1-435-961-21 TRANSFORMER, POWER
W7 1-754-135-11 ANTENNA (WIRE) (FM)
#1 7-685-649-79 SCREW +P 3X14 TYPE2 NON-SLIT
#3 7-685-903-21 SCREW +PTPWH 3X8 (TYPE2)
•Abbreviation
AUS: Australian model
SP : Singapore model
5-1. CABINET SECTION
5-2. CHASSIS SECTION
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Ver 1.1
