Sony ICF-C490 - SECTION 2 DISASSEMBLY; Disassembly Flow

ICF-C490
4
• This set can be disassembled in the order shown below.
2-1. DISASSEMBLY FLOW
SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

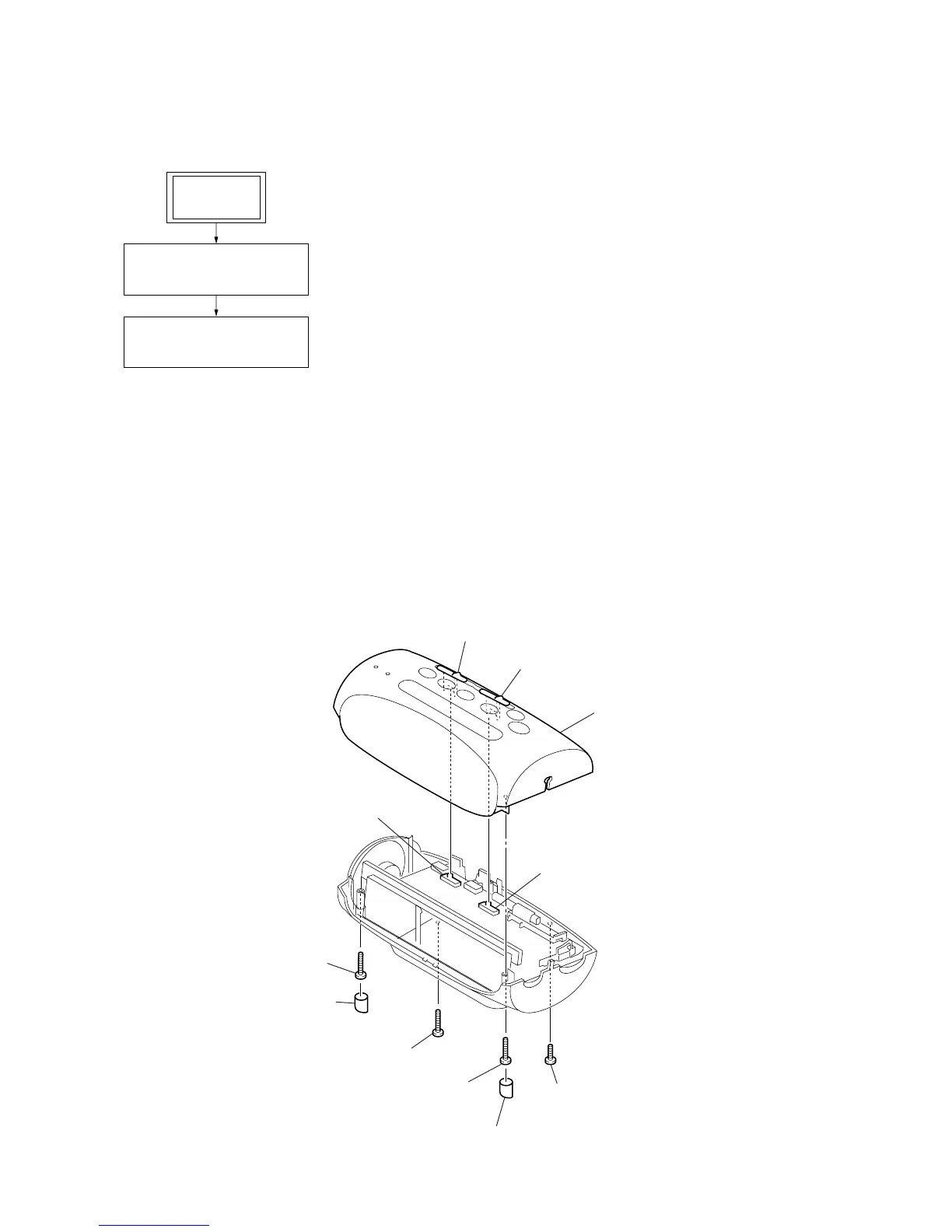

2-2. CABINET (UPPER) ASSY
3 screw (P3 × 14)
S101
1 cap (R)
4 screw (P3 × 30)
2 screw (P3 × 30)
1 cap (L)
2 screw (P3 × 30)
S102
5 cabinet (upper) ass
y
knob (alarm)
knob (clock)
Note :When installing
cabinet (upper) assy,
adjust S102, S101 and
the knobs (clock, alarm).
SET
2-2. CABINET (UPPER) ASSY
(page 4)
2-3. MAIN BOARD
(page 5)
