Sony ICF-C490 - MAIN Board

ICF-C490
5

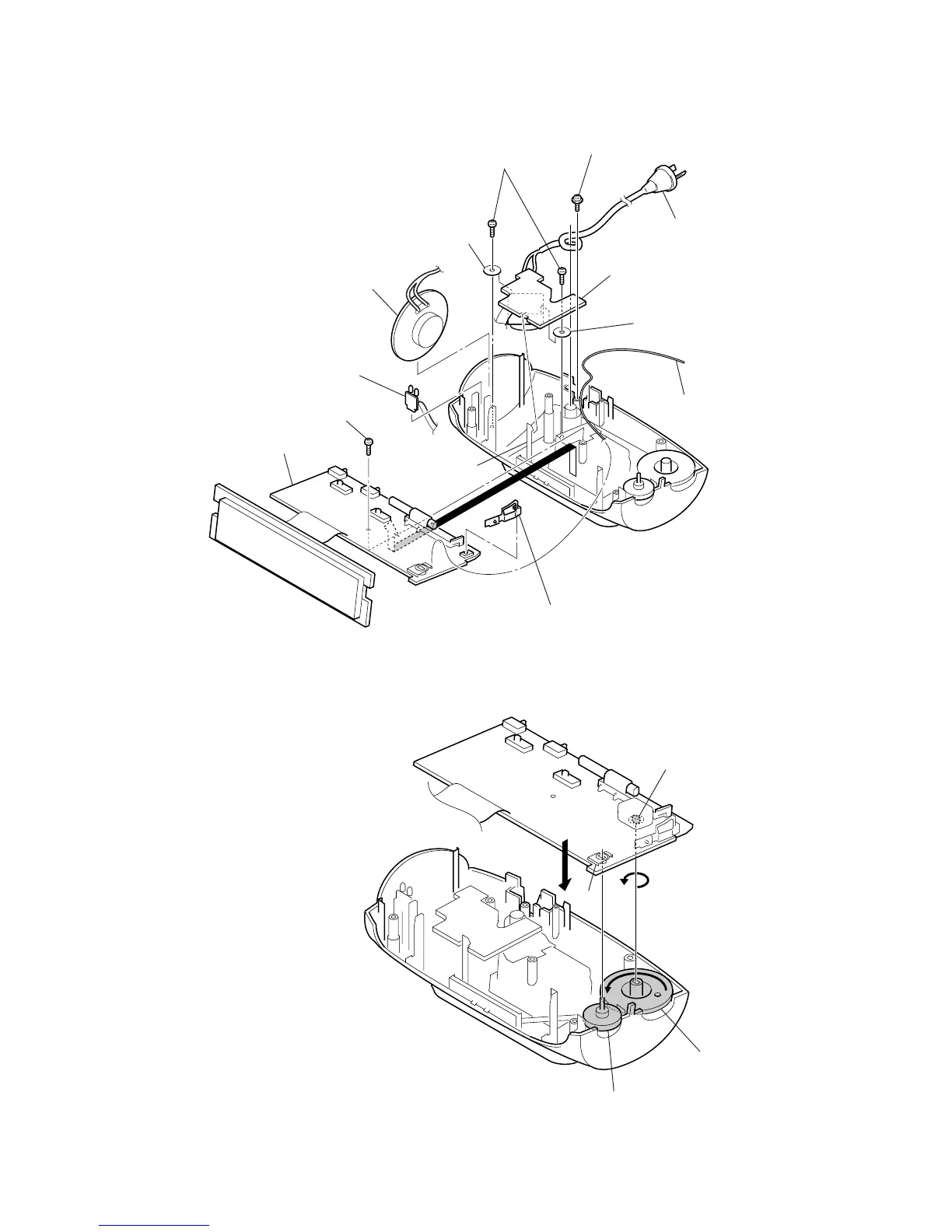

2-3. MAIN BOARD
• MAIN BOARD SETTING
1 knob (band)
qs claw
3
2
screw (P3 × 14)
qd main board
6 speker (6.6 cm) (SP1)
5 LED board
9 washer
8 two screws
(P3
× 14)
7 screw
(PTPWH3
× 8)
qa power cord (PC1)
0 power board
9 washer
4 antenna (wire) (W7
)
knob (vol)
knob (tuning
)
B
A
RV1
shaft of CV1
Note 1 : When installing the main board,
adjust RV1 and the knob (vol).
Note 2 : When installing the main board,
turn the shaft of CV1 in the direction
of arrow A fully and the knob (tuning)
in the direction of arrow
B fully
before adjusting the shaft of CV1
and the knob (tuning).
