Sony ICF-SW10 - Electrical Parts

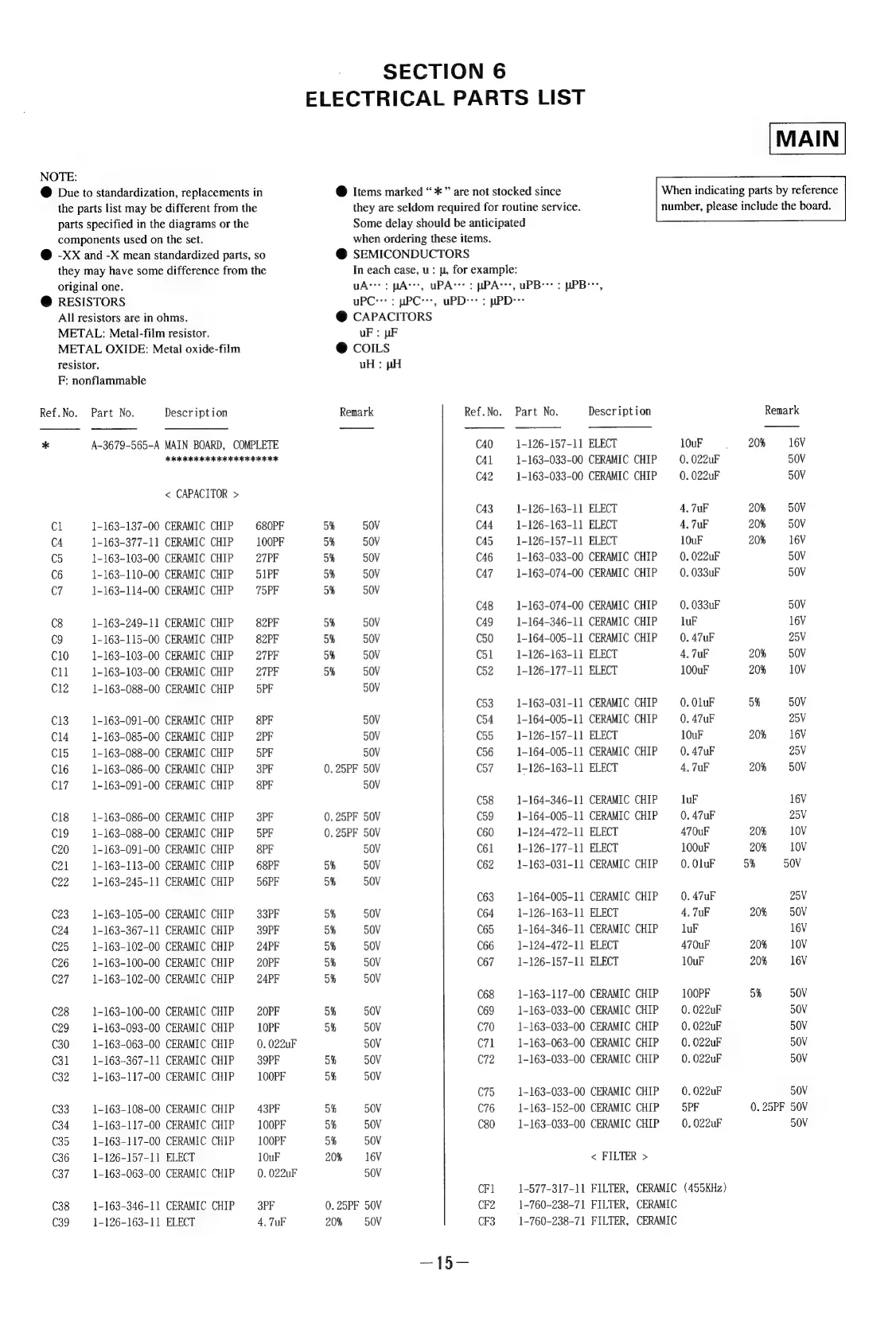

SECTION 6
ELECTRICAL PARTS LIST
NOTE:
@ Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
@ -XX and -X mean standardized parts, so
they may have some difference from the
When indicating parts by reference
number, please include the board.
@ Items marked “* ” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
@ SEMICONDUCTORS
In each case, u: , for example:
original one. uAvs: pAtes, uPA‘: : HPA:-:, uPB’*: : uPB**’,
@ RESISTORS uPC:*: ; wPC:*, uPD::: : pPD-:-
All resistors are in ohms. @ CAPACITORS
METAL: Metal-film resistor. uF : pF
METAL OXIDE: Metal oxide-film @ COILS
resistor. uH : pH
F: nonflammable
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
* A-3679-565-A MAIN BOARD, COMPLETE C40 1-126-157-11 ELECT 10uF 20% 16V
REE EAEEEESELIEREERES C41 1-163-033-00 CERAMIC CHIP 0. 022uF 50V
C42 1-163-033-00 CERAMIC CHIP 0. 022uF 50V
< CAPACITOR >
C43 1-126-163-11 ELECT 4. 7uF 20% 50V
Cl 1-163-137-00 CERAMIC CHIP 680PF 5% 50V C44 1-126-163-11 ELECT 4. 7uF 20% 50V
C4 1-163-377-11 CERAMIC CHIP 100PF 5% 50V C45 1-126-157-11 ELECT 10uF 20% 16V
C5 1-163-103-00 CERAMIC CHIP 27PF 5% 50V C46 1-163-033-00 CERAMIC CHIP 0. 022uF 50V
C6 1-163-110-00 CERAMIC CHIP 51PF 5% 50V C47 1-163-074-00 CERAMIC CHIP 0. 033uF 50V
C7 1-163-114-00 CERAMIC CHIP 75PF 5% 50V
C48 1-163-074-00 CERAMIC CHIP 0. 033uF 50V
C8 1-163-249-11 CERAMIC CHIP 82PF 5% 50V C49 1-164-346-11 CERAMIC CHIP luF 16V
C9 1-163-115-00 CERAMIC CHIP 82PF 5% 50V C50 1-164-005-11 CERAMIC CHIP 0. 47uF 25V
C10 1-163-103-00 CERAMIC CHIP 27PF 5% S0V C51 1-126-163-11 ELECT 4, 7uF 20% 50V
Cll 1-163-103-00 CERAMIC CHIP 27PF oh 50V C52 1-126-177-11 ELECT 100uF 20% 10V
C12 1-163-088-00 CERAMIC CHIP SPF 50V
C53 1-163-031-11 CERAMIC CHIP 0. OluF 5% 50V
C13 1-163-091-00 CERAMIC CHIP 8PF 50V C54 1-164-005-11 CERAMIC CHIP 0. 47uF ZV
C14 1-163-085-00 CERAMIC CHIP 2PF 50V C55 1-126-157-11 ELECT 10uF 20% 16V
C15 1-163-088-00 CERAMIC CHIP 5PF 50V C56 1-164-005-11 CERAMIC CHIP 0. 47uF 25V
C16 1-163-086-00 CERAMIC CHIP 3PF 0. 25PF 50V C57 1-126-163-11 ELECT 4, 7uF 20% SOV
C17 1-163-091-00 CERAMIC CHIP 8PF 50V
C58 1-164-346-11 CERAMIC CHIP luF 16V
C18 1-163-086-00 CERAMIC CHIP 3PF 0. 25PF 50V C59 1-164-005-11 CERAMIC CHIP 0. 47uF 25V
C19 1-163-088-00 CERAMIC CHIP 5PF 0. 25PF 50V C60 1-124-472-11 ELECT 470uF 20% 10V
C20 1-163-091-00 CERAMIC CHIP 8PF 50V C61 1-126-177-11 ELECT 100uF 20% 10V
C21 1-163-113-00 CERAMIC CHIP 68PF 5% 50V C62 1-163-031-11 CERAMIC CHIP 0. OluF 5% 50V
C22 1-163-245-11 CERAMIC CHIP 56PF 5% 50V
C63 1-164-005-11 CERAMIC CHIP 0. 47uF 25V
C23 1-163-105-00 CERAMIC CHIP 33PF 5% 50V C64 1-126-163-11 ELECT 4. 7uF 20% 50V
C24 1-163-367-11 CERAMIC CHIP 39PF 5% 50V C65 1-164-346-11 CERAMIC CHIP luF 16V
C25 1-163-102-00 CERAMIC CHIP 24PF 5% 50V C66 ]-124-472-11 ELECT 470uF 20% 10V
C26 1-163-100-00 CERAMIC CHIP 20PF 5% 50V C67 1-126-157-11 ELECT 10uF 20% 16V
C27 1-163-102-00 CERAMIC CHIP 24PF 5% 50V
C68 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C28 1-163-100-00 CERAMIC CHIP 20PF 5% 50V C69 1-163-033-00 CERAMIC CHIP 0. 022uF 50V
C29 1-163-093-00 CERAMIC CHIP 10PF 5% 50V C70 1-163-033-00 CERAMIC CHIP 0. 022uF 50V
C30 1-163-063-00 CERAMIC CHIP 0. 022uF 50V C71 1-163-063-00 CERAMIC CHIP 0. 022uF 50V
C31 1-163-367-11 CERAMIC CHIP 39PF 5% 50V C72 1-163-033-00 CERAMIC CHIP 0. 022uF 50V
C32 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C75 1-163-033-00 CERAMIC CHIP 0. 022uF 50V
C33 1-163-108-00 CERAMIC CHIP 43PF 5% 50V C76 1-163-152-00 CERAMIC CHIP 5PF 0. 25PF 50V
C34 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C80 1-163-033-00 CERAMIC CHIP 0. 022uF 50V
C35 1-163-117-00 CERAMIC CHIP 100PF 5% 50V
C36 1-126-157-11 ELECT 10uF 20% 16V < FILTER >
C37 1-163-063-00 CERAMIC CHIP 0. 022uF 50V
CF1 1-577-317-11 FILTER, CERAMIC (455KHz)
C38 1-163-346-11 CERAMIC CHIP 3PF 0. 25PF 50V CF2 1-760-238-71 FILTER, CERAMIC
C39 1-126-163-11 ELECT 4, 7uF 20% 50V CF3 1-760-238-71 FILTER, CERAMIC
