Sony ICF-SW22 - Page 10

NOTE:
@ Due to standardization, replacements in

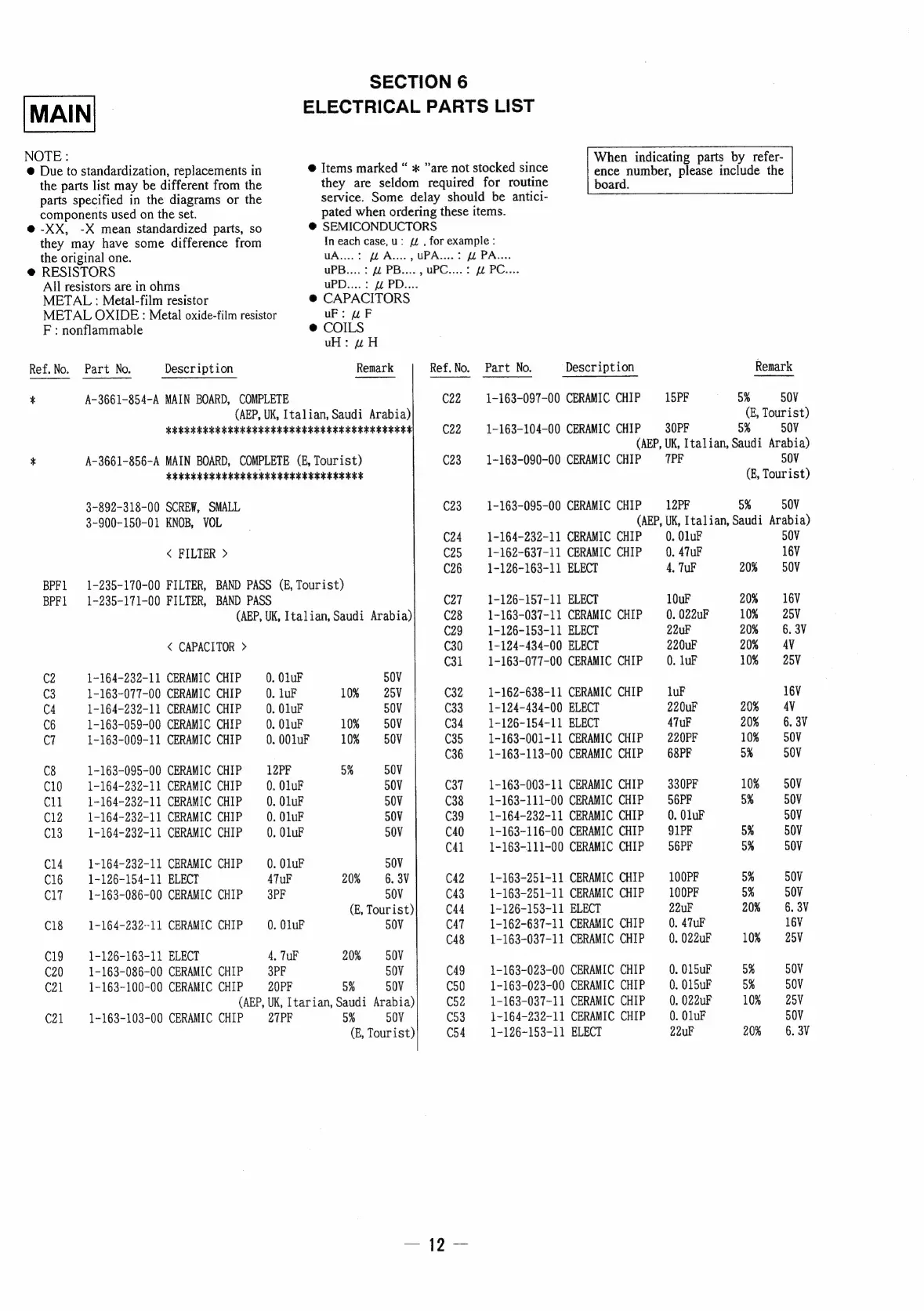

SECTION 6
@ Items marked “ * ”are not stocked since
ELECTRICAL PARTS LIST
When indicating parts by refer-
ence number, please include the
the parts list may be different from the they are seldom required for routine board.
parts specified in the diagrams or the service. Some delay should be antici-
components used on the set. pated when ordering these items.
@ -XX, -X mean standardized parts, so @ SEMICONDUCTORS
they may have some difference from In each case,u: 4 , for example:
the
original
one.
uA...
WA...
UPA...
2
PA...
@ RESISTORS UPB....: 44 PB.... , uPC....: {& PC....
All resistors are in ohms uPD....: & PD....
METAL : Metal-film resistor @ CAPACITORS
METAL OXIDE: Metal oxide-film resistor uF: “FPF
F : nonflammable @ COILS
uH: wH
Ref.No. Part No. Description Remark Ref.No. Part No. Description Remark
* A-3661-854-A MAIN BOARD, COMPLETE C22 1-163-097-00 CERAMIC CHIP 15PF 5% 50V
(AEP, UK, Italian, Saudi Arabia) (E, Tourist)
Pst SESSSESS SSS SSS CSS OSI STOPES LISS LS SEL 22 3 C22 1-163-104-00 CERAMIC CHIP 30PF 5% 50V
(AEP, UK, Italian, Saudi Arabia)
k A-3661-856-A MAIN BOARD, COMPLETE (E, Tourist) C23 1-163-090-00 CERAMIC CHIP PF 50V
KARR KEK ER EERKERERERERERERERE RES (E, Tourist)
3-892-318-00 SCREW, SMALL C23 1-163-095-00 CERAMIC CHIP 12PF 5% 50V
3-900-150-01 KNOB, VOL (AEP, UK, Italian, Saudi Arabia)
C24 1-164-232-11 CERAMIC CHIP 0. OluF 50V
< FILTER > C25 1-162-637-11 CERAMIC CHIP 0. 47uF 16V
C26 1-126-163-11 ELECT 4, TuF 20% 50V
BPF1 1-235-170-00 FILTER, BAND PASS (E, Tourist)
BPF1 1-235-171-00 FILTER, BAND PASS C27 1-126-157-11 ELECT 10uF 20% 16V
(AEP, UK, Italian, Saudi Arabia) C28 1-163-037-11 CERAMIC CHIP 0. 022uF 10% 25V
C29 1-126-153-11 ELECT 22uF 20% 6. 3V
< CAPACITOR > C30 1-124-434-00 ELECT 220uF 20% AY
C31 1-163-077-00 CERAMIC CHIP 0. luF 10% 25V
C2 1-164-232-11 CERAMIC CHIP 0. OluF 50V
C3 1-163-077-00 CERAMIC CHIP 0. luF 10% 25V C32 1-162-638-11 CERAMIC CHIP luF 16V
C4 1-164-232-11 CERAMIC CHIP 0. OluF 50V C33 1-124-434-00 ELECT 220uF 20% 4V
C6 1-163-059-00 CERAMIC CHIP 0. OluF 10% 50V C34 1-126-154-11 ELECT 47uF 20% 6. 3V
CT 1-163-009-11 CERAMIC CHIP 0. 001uF 10% 50V C35 1-163-001-11 CERAMIC CHIP 220PF 10% 50V
C36 1-163-113-00 CERAMIC CHIP 68PF 5% 50V
C8 1-163-095-00 CERAMIC CHIP 12PF 5% 50V
C10 1-164-232-11 CERAMIC CHIP 0. OluF 50V C3T 1-163-003-11 CERAMIC CHIP 330PF 10% 50V
Cll 1-164-232-11 CERAMIC CHIP 0. OluF 50V C38 1-163-111-00 CERAMIC CHIP 56PF 5% 50V
C12 1-164-232-11 CERAMIC CHIP 0. OluF 50V C39 1-164-232-11 CERAMIC CHIP 0. OluF 50V
C13 1-164-232-11 CERAMIC CHIP 0. OluF 50V C40 1-163-116-00 CERAMIC CHIP 91PF 5% 50V
C41 1-163-111-00 CERAMIC CHIP 56PF 5% 50V
C14 1-164-232-11 CERAMIC CHIP 0. OluF 50V
C16 1-126-154-11 ELECT ATuF 20% 6. 3V C42 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
C17 1~163-086-00 CERAMIC CHIP 3PF 50V C43 1-163-251-11 CERAMIC CHIP 100PF 5% 50V
(E,
Tourist)
C44
1-126-153-11
ELECT
22uF
20%
6.
3V
C18
1-164-232--11
CERAMIC
CHIP
0.
OluF
50V
C47
1-162-637-11
CERAMIC
CHIP
0.
47uF
16V
C48 1-163-037-11 CERAMIC CHIP 0. 022uF 10% 25V
C19 1-126-163-11 ELECT 4, TuF 20% 50V
C20 1-163-086-00 CERAMIC CHIP 3PF 50V C49 1-163-023-00 CERAMIC CHIP 0. 015uF 5% 50V
C21 1-163-100-00 CERAMIC CHIP 20PF 5% 50V C50 1-163-023-00 CERAMIC CHIP 0. 015uF 5% 50V
(AEP, UK, Itarian, Saudi Arabia) C52 1-163-037-11 CERAMIC CHIP 0. 022uF 10% 25V
Cat 1-163-103-00 CERAMIC CHIP 27PF 5% 50V C53 1-164-232-11 CERAMIC CHIP 0. OluF 50V
(E, Tourist) C54 1-126-153-11 ELECT 22uF 20% 6. 3V
