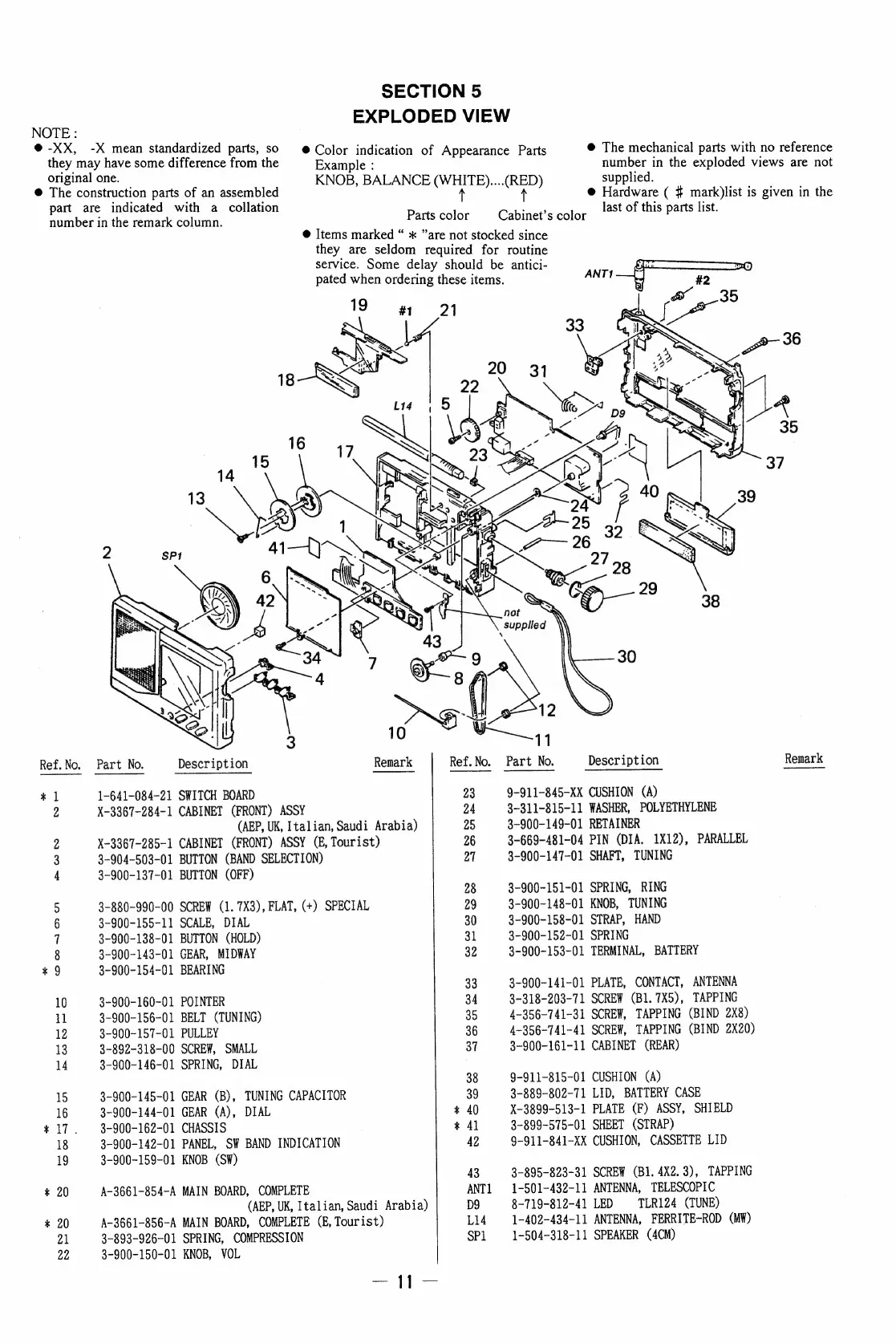

SECTION 5
EXPLODED VIEW
NOTE:
@ -XX, -X mean standardized parts, so
they may have some difference from the
original one.
@ The construction parts of an assembled
part are indicated with a collation
number in the remark column.
Example :
@ Color indication of Appearance Parts
KNOB, BALANCE (WHITE)....(RED)
t t
Parts color
Cabinet’s color
@ Items marked “ * "are not stocked since
they are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
21
19
#1
Part No. Remark
Description
1-641-084-21 SWITCH BOARD
2 X-3367-284-1 CABINET (FRONT) ASSY
(AEP, UK, Italian, Saudi Arabia)
2 X-3367-285-1 CABINET (FRONT) ASSY (CE, Tourist)
3 3-904-503-01 BUTTON (BAND SELECTION)
4 3-900-137-01 BUTTON (OFF)
h) 3-880-990-00 SCREW (1. 7X3), FLAT, (+) SPECIAL
6 3-900-155-11 SCALE, DIAL
7 3-900-138-01 BUTTON (HOLD)
8 3-900-143-01 GEAR, MIDWAY
9 3-900-154-01 BEARING
10 3-900-160-01 POINTER
11 3-900-156-01 BELT (TUNING)
12 3-900-157-01 PULLEY
13 3-892-318-00 SCREW, SMALL
14 3-900-146-01 SPRING, DIAL
15 3-900-145-01 GEAR (B), TUNING CAPACITOR
16 3-900-144-01 GEAR (A), DIAL
_ 8-900-162-01 CHASSIS
18 3-900-142-01 PANEL, SW BAND INDICATION
19 3-900-159-01 KNOB (SW)
* 20 A-3661-854-A MAIN BOARD, COMPLETE
(AEP, UK, Italian, Saudi Arabia)
* 20 A-3661-856-A MAIN BOARD, COMPLETE (E, Tourist)
21 3-893-926-01 SPRING, COMPRESSION
22 3-900-150-01 KNOB, VOL
se
SPI
Part No. Description Remark
9-911-845-XX CUSHION (A)
3-311-815-11 WASHER, POLYETHYLENE
3-900-149-01 RETAINER
3-669-481-04 PIN (DIA. 1X12), PARALLEL
3-900-147-01 SHAFT, TUNING
3-900-151-01 SPRING, RING
3-900-148-01 KNOB, TUNING
3-900-158-01 STRAP, HAND
3-900-152-01 SPRING
3-900-153-01 TERMINAL, BATTERY
3-900-141-01 PLATE, CONTACT, ANTENNA
3-318-203-71 SCREW (Bl. 7X5), TAPPING
4-356-741-31 SCREW, TAPPING (BIND 2X8)
4-356-741-41 SCREW, TAPPING (BIND 2X20)
3-900-161-11 CABINET (REAR)
9-911-815-01 CUSHION (A)
3-889-802-71 LID, BATTERY CASE
X-3899-513-1 PLATE (F) ASSY, SHIELD
3-899-575-01 SHEET (STRAP)
9-911-841-XX CUSHION, CASSETTE LID
3-895-823-31 SCREW (Bl. 4X2. 3), TAPPING
1-501-432-11 ANTENNA, TELESCOPIC
8-719-812-41 LED TLR124 (TUNE)
1-402-434-11 ANTENNA, FERRITE-ROD (M¥)
1-504-318-11 SPEAKER (4CM)
@ The mechanical parts with no reference
number in the exploded views are not
supplied.
@ Hardware ( # mark)list is given in the
last of this parts list.
