Connecting the TV
25
Connecting the TV
KDF-E42A10/KDF-E50A10
2-597-544-12(1)
D:\WINNT\Profiles\noriko\Desktop\Troy EN2\2597544121\01US04INS.fm
masterpage:3 columns Right

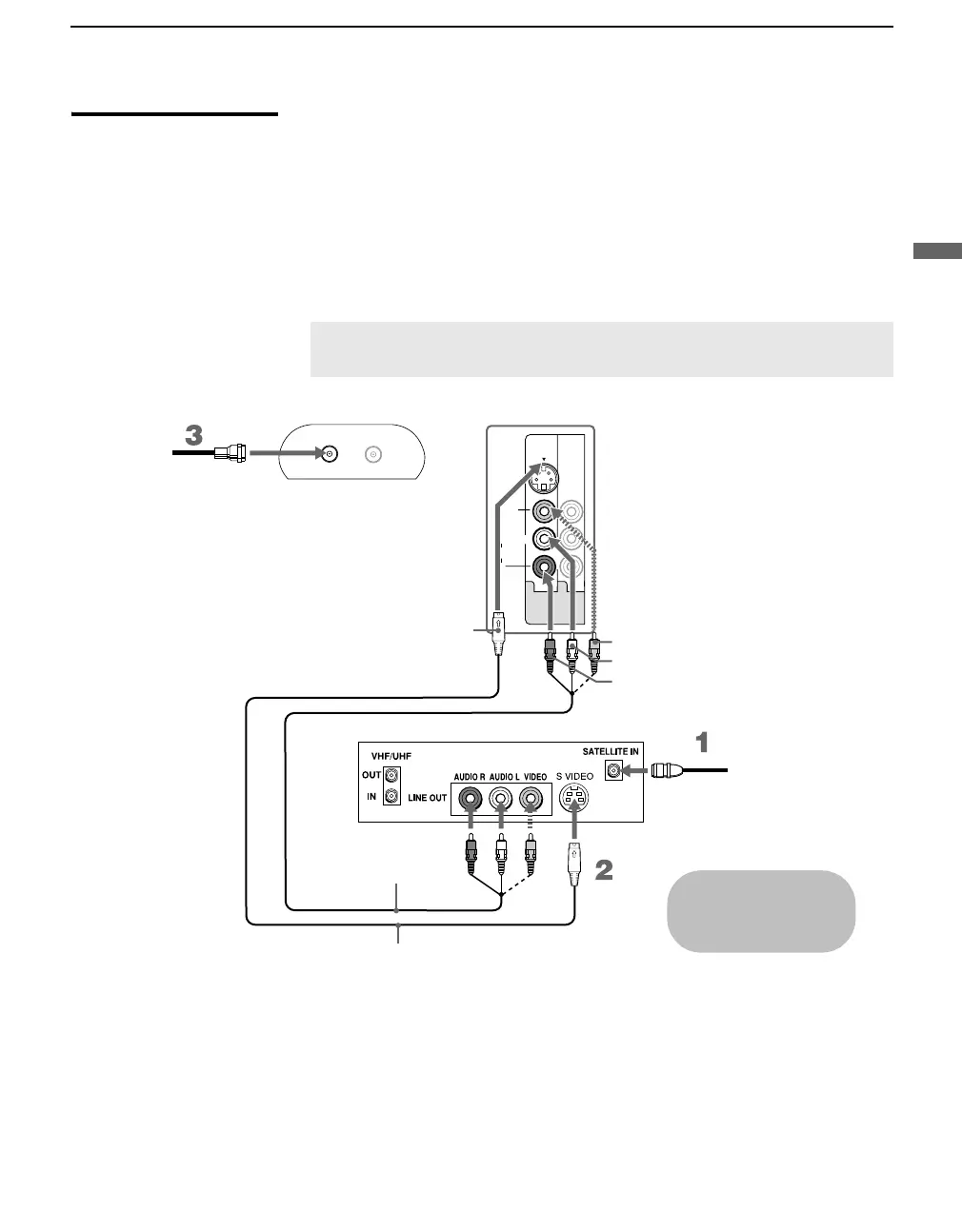

Satellite Receiver Disconnect all power sources before making any connections.
1 Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2 Use A/V and S VIDEO cables to connect the satellite receiver’s AUDIO
and S VIDEO OUT jacks to the TV’s AUDIO and S VIDEO IN jacks.
3 Use a coaxial cable to connect your cable to the TV’s CABLE jack, or
your antenna to the TV’s VHF/UHF jack.
✍ If your satellite receiver is not equipped with S VIDEO, use a VIDEO
cable (yellow) instead of the S VIDEO cable.
L
R
(MONO)
AUDIO
VIDEO IN
VIDEO
S VIDEO
13
VHF/UHF
CABLE
Satellite receiver
A/V cable
Rear of TV
VIDEO
Satellite
antenna
cable
S VIDEO
S VIDEO cable
Cables are often
color-coded to connectors.
Connect red to red,
white to white, etc.
AUDIO-L
AUDIO-R
Coaxial cable
To Next Page
