Chapter 2 - Service and Troubleshooting
CTV-41 33
FIGURE 2-8

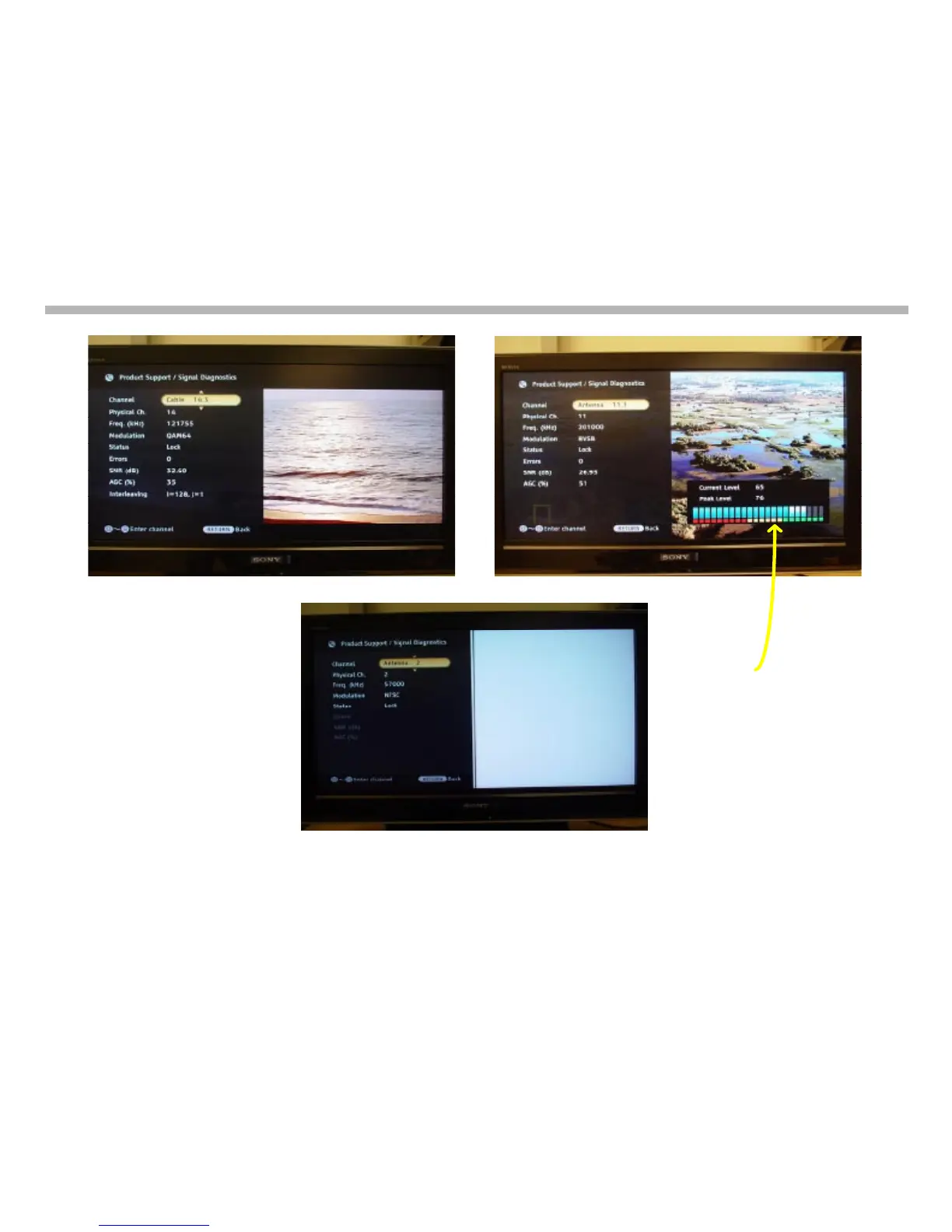

SIGNAL LEVEL CHECK
ATSC DIGITAL RECEPTIONQAM DIGITAL RECEPTION
NTSC ANALOG RECEPTION
ACCEPTABLE DIGITAL
SIGNAL READINGS
AGC
: 18-54
SNR
: ATSC 16-22
QAM256 MINIMUM 29
64 QAM MINIMUM 22
PEAK LEVEL RESETS
WHEN CHANNEL IS
CHANGED
FIGURE 2-8
SIGNAL LEVEL CHECK
