Sony KDL-26S3000 Training Manual

Chapter 1 - Features and Circuit Descriptions
CTV-41 5
FIGURE 1-1

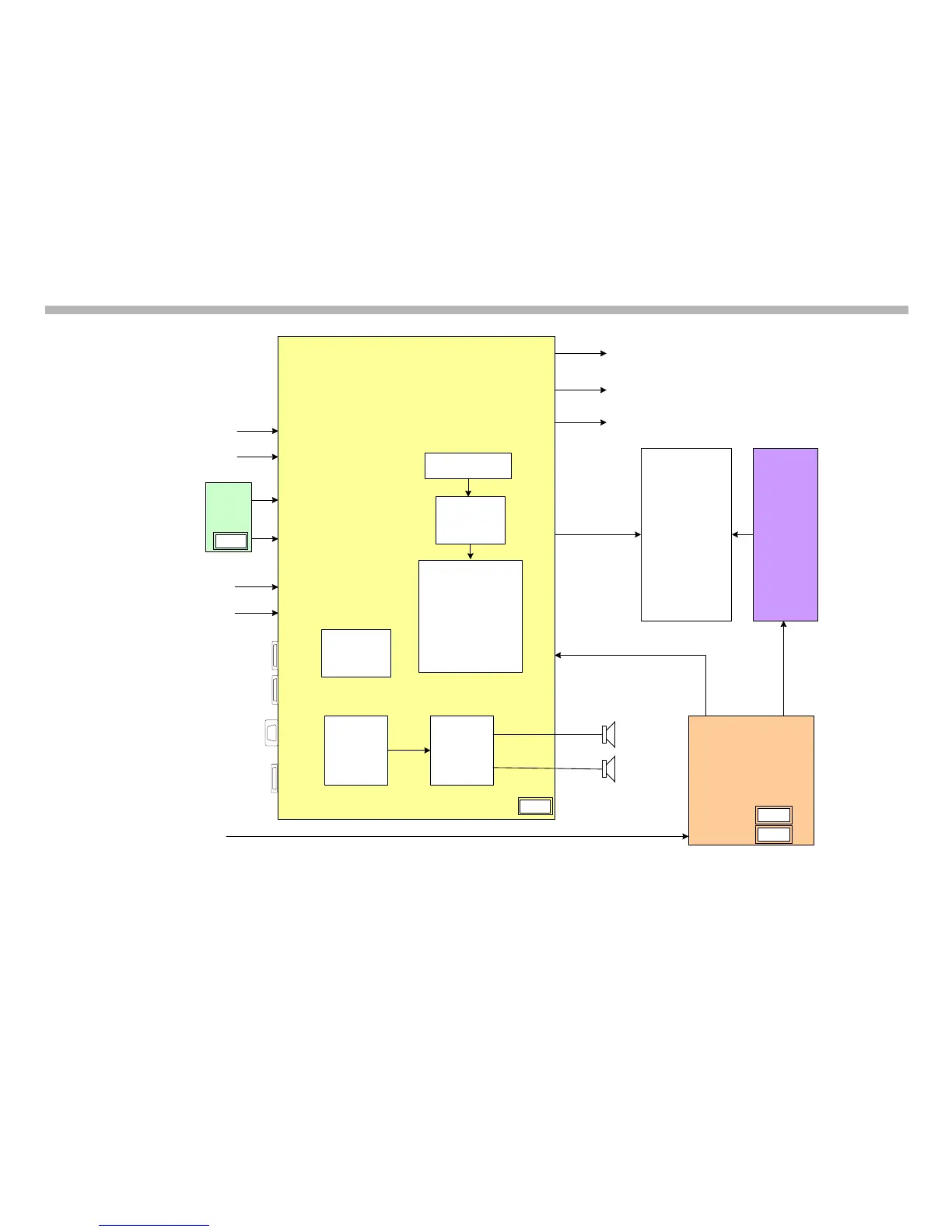

26/32" WAX3 CHASSIS OVERALL BLOCK
LCD PANEL
(WXGA)
INVERTER
AC IN
OPTICAL OUT
VIDEO 1
COMPOSITE
_Y/C IN
VIDEO 3
COMPOSITE IN
L
R
HDMI 1 IN
HDMI 2 IN
PC IN
VIDEO PROCESS
A/V SWITCHING
MAIN TV MICRO
AUDIO PROCESS
/AMP
HDMI MICRO
TUNER
ATI MICRO
IC4500
TRIDENT
VIDEO PROCESSOR
IC7300
ATI
IC2009
AUDIO AMP
BU1
USB FOR DMEX
AND SOFTWARE
UPGRADE
FRONT
INPUTS
U1
VIDEO 2
COMPOSITE IN
COMPONENT 2 IN
ATSC/NTSC
TUNER
COMPONENT 1 IN
COMPONENT 3 IN
IC3001
MAIN TV
MICRO
POWER SUPPLY
G1H
G1D
26"
32
"
IC2002
AUDIO SW
AUDIO DSP
L/R AUDIO OUT
HEADPHONES OUT
FIGURE 1-1
26/32” S SERIES OVERALL BLOCK DIAGRAM
