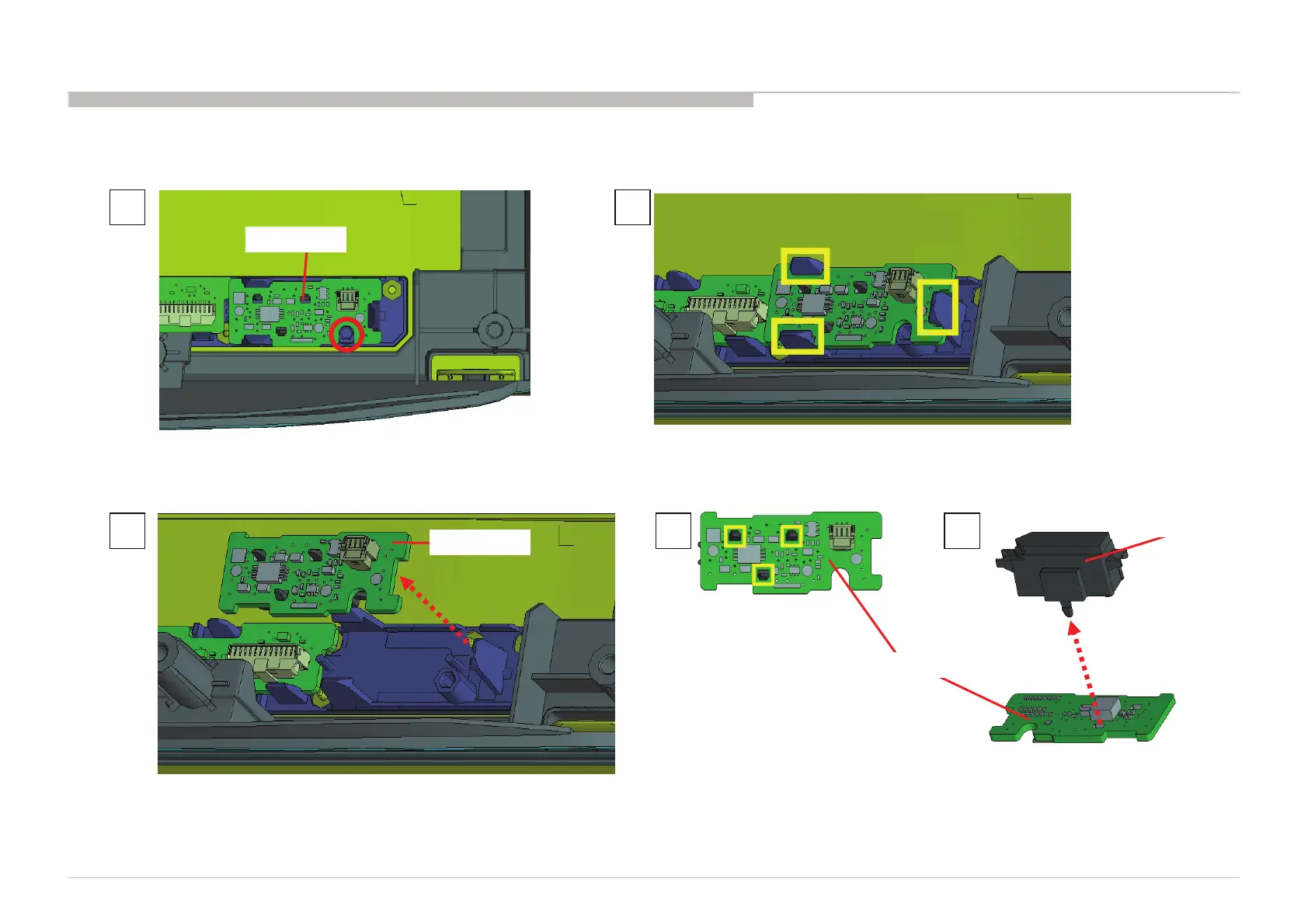

1-2-13. HMS3 BOARD AND FRENEL LENS
DISASSEMBLY
1 2
1 Screw (SCREW +BVTP 3X8 TYPE2 IT-3) P/N: FX0003779
HMS3 BOARD
3 4 5
FRENEL LENS
HMS3 BOARD
HMS3 BOARD
1-2. KDL-40EX720/721/723/724
