5-1. KDL-32EX720/721

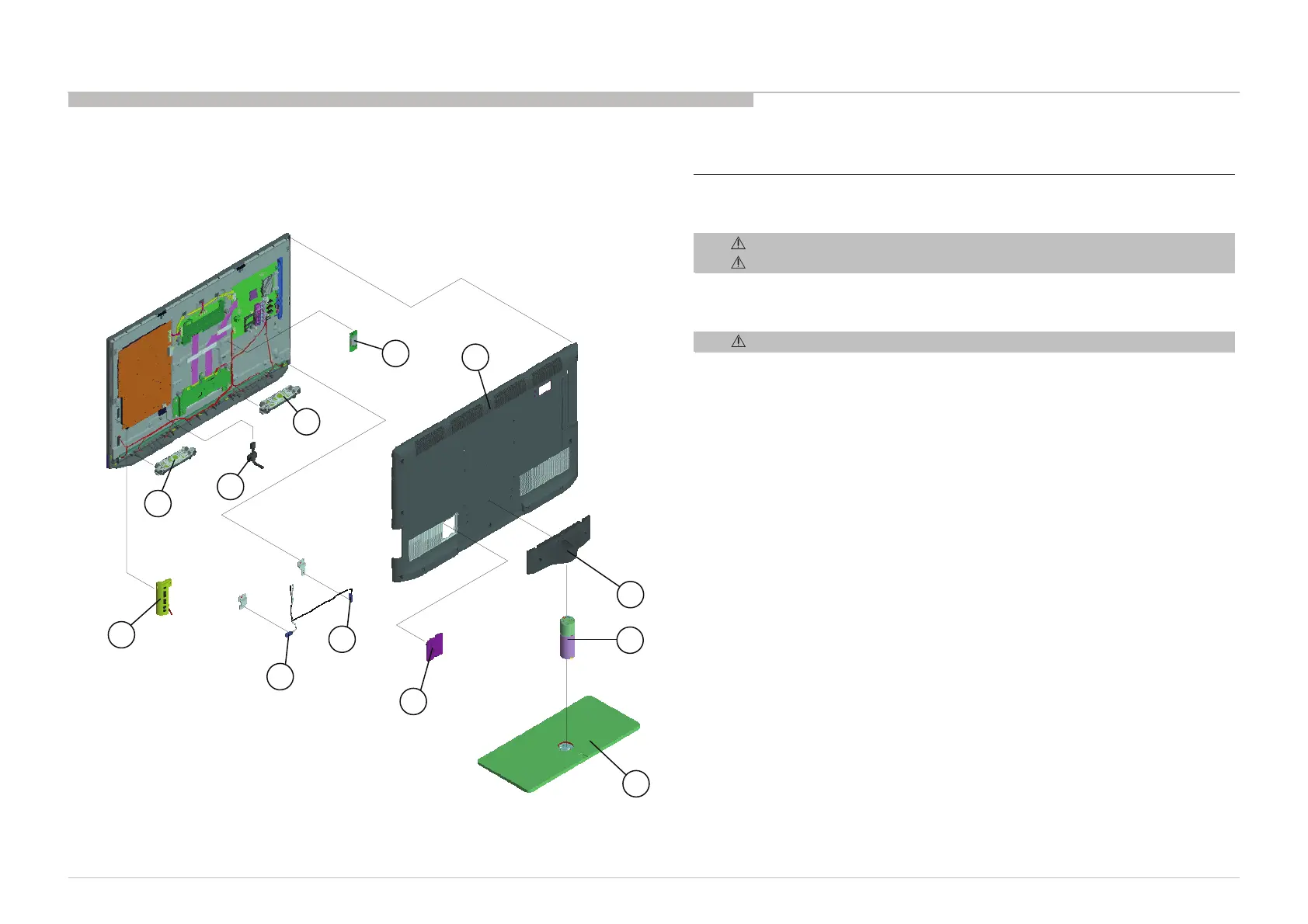

5-1-1. CHASSIS-1
EXPLODED VIEWS
4
1
5
8
11
9
10
3
2
2
7
REF. No. PART No. DESCRIPTION REMARK
1 1-489-443-21 SWITCH UNIT
2 1-858-597-12 LOUDSPEAKER (3X10CM)
3 1-838-271-12 POWER-SUPPLY CORD (WITH CONN.)
4 1-458-355-11 WIRELESS LAN CARD EX721
5 4-275-433-02 REAR COVER(32)
6 1-754-746-11 ANTENNA EX721
7 1-754-748-11 ANTENNA EX721
8 4-259-168-11 COVER, AC (M)
9 4-267-488-11 STAND HEAD (M9) EX720
4-267-491-01 STAND HEAD (M9) EX721
10 4-259-177-02 NECK (M9)
11 4-269-900-04 STAND, BASE(M2) EX720
4-267-580-03 STAND, BASE A (M1) EX721
