Sony KDL-32EX721 - Circuit Boards Location

KDL-32/40EX720,721,723,724(AEP/UK)
78
DIAGRAMS

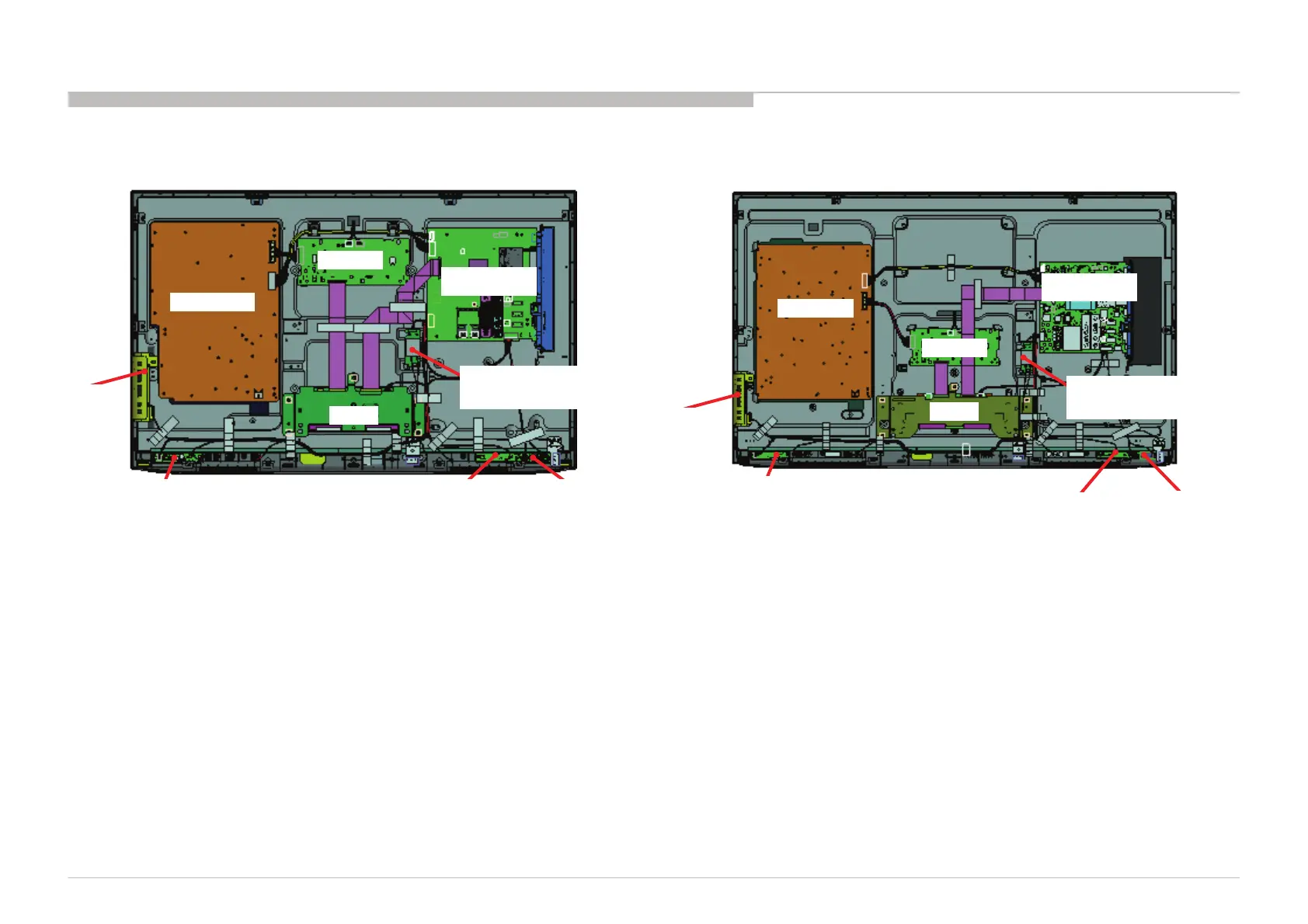

4-3. CIRCUIT BOARDS LOCATION
BATV Board
HLR2 Board
Switch Unit
G10A Board
T-CON
Switch Unit
HLR2 Board
BATV Board
HMS3 Board
HMS3 Board
T-CON
G4B Board
LD Board
LD Board
HEM2 Board
HEM2 Board
Wireless LAN Card
(EX721 Only)
KDL-32EX720/721
KDL-40EX720/721/723/724
Wireless LAN Card
(EX721/724 Only)
