KDL-32/40EX720,721,723,724(AEP/UK)
7
2
Push!!

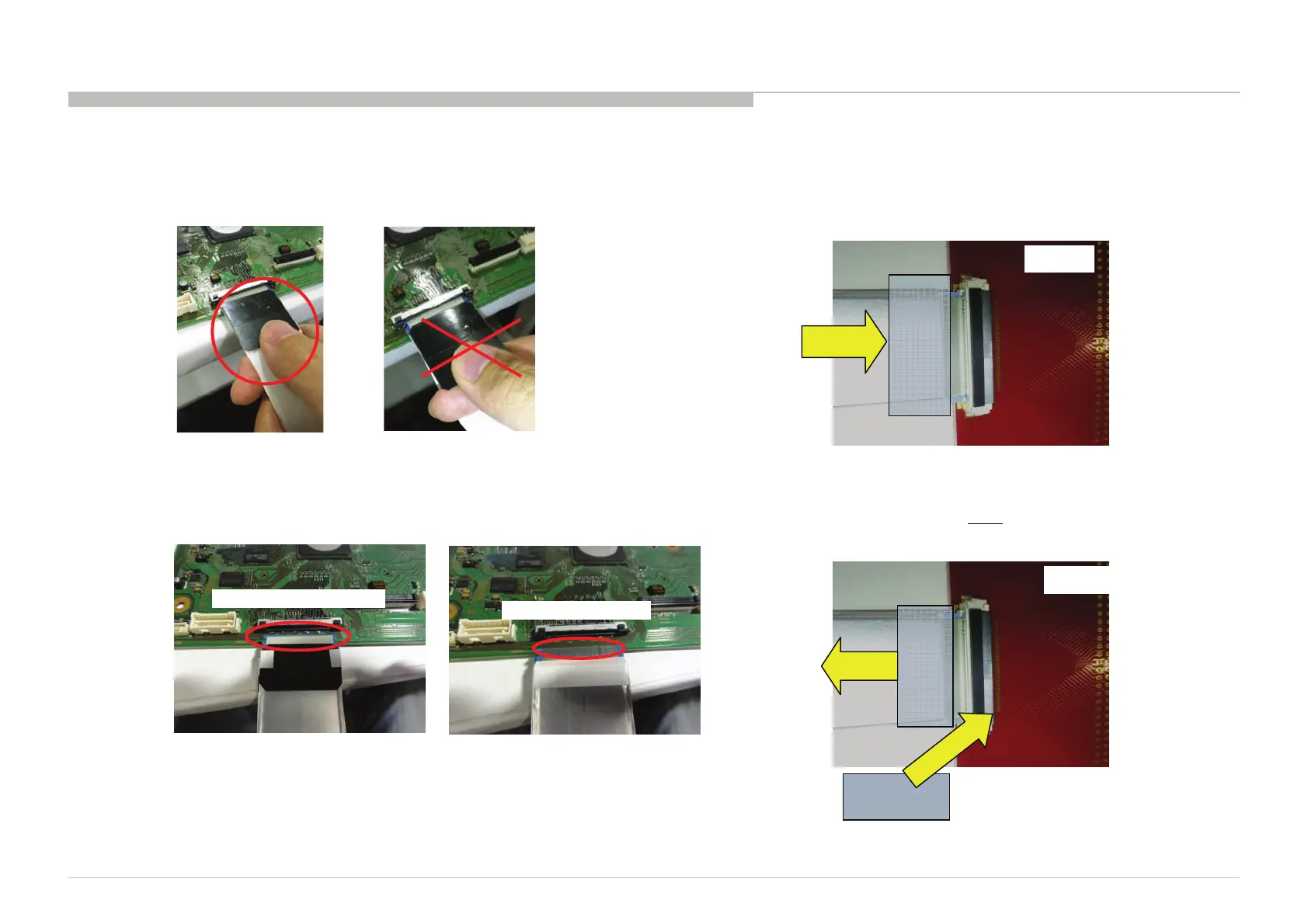

When you insert / pull out FFC, please grasp a reinforcement board and main body of FFC.
<GOOD> <NG>
< Insertion >
Please hold reinforcement board and plunge it to the depths.
Please pull out FFC while
pushing the button of both ends
at the same time.
Reinforce
plate
B board
FFC can reverse insertion to connector of B board.
If reverse insertion FFC, all pins short-circuit, and board is broken.
Upper side is GND shield
Upper side is terminal
<Pull out>
HANDLING THE FFC
WARNINGS AND CAUTIONS
Reinforce
plate
<GOOD> <NG>
B board
①
To Next Page
