KDL-32/40EX720,721,723,724(AEP/UK)
81
5-1-2. CHASSIS-2

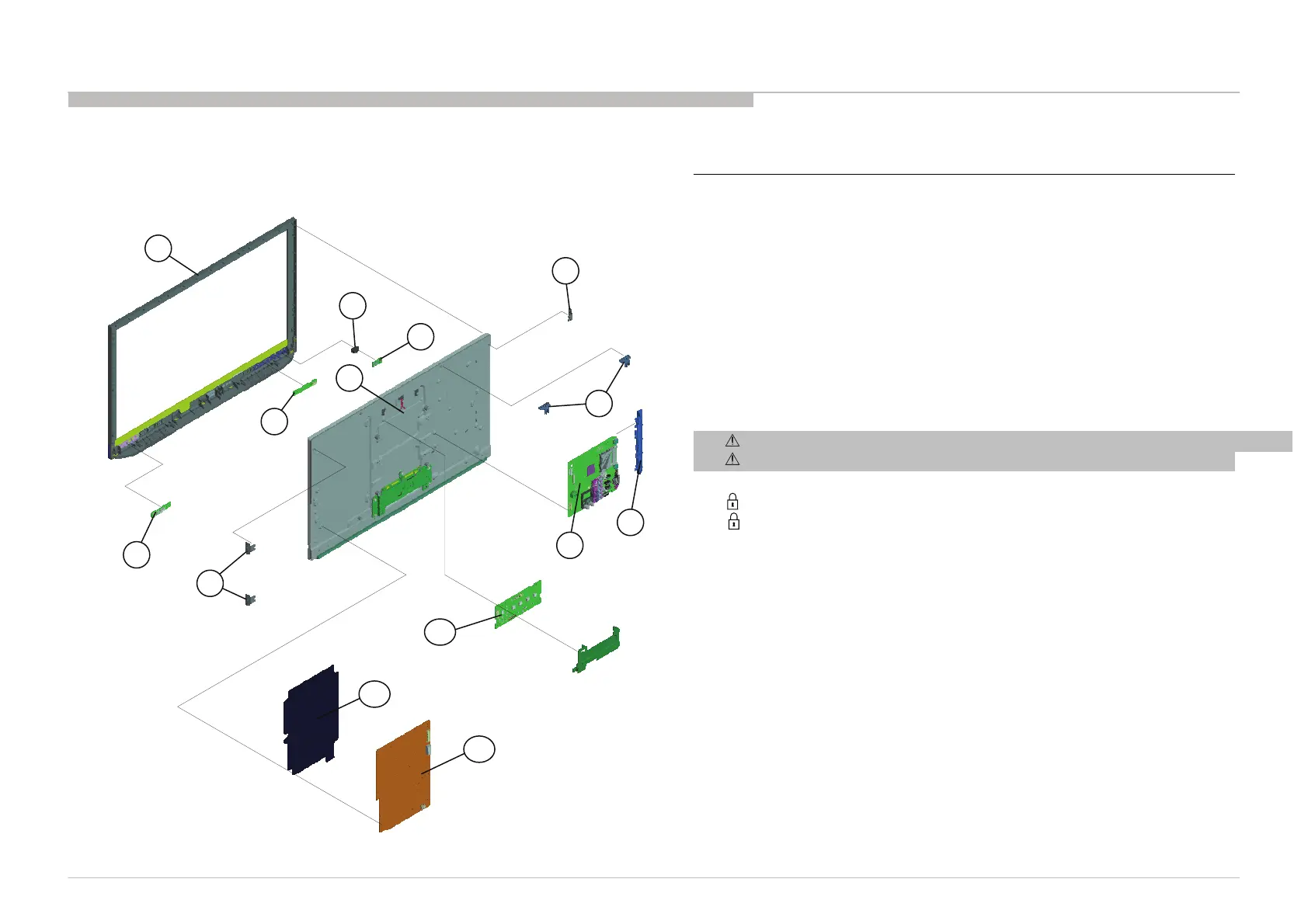

EXPLODED VIEWS
5-1. KDL-32EX720/721
25
23
29
24
22
21
26
30
32
31
27
26
20
REF. No. PART No. DESCRIPTION REMARK
20 4-266-696-02 BEZEL(32 CAS) EX720
4-266-696-22 BEZEL(32 CAS) EX721
21 A-1792-512-A HEM2 MOUNT
22 A-1792-878-B HLR2 MOUNT(B-O-AEP)
23 * 1-856-184-11 FRENEL LENS
24 A-1806-495-A HMS3_B MOUNT
25 1-811-339-12 LCD PANEL (S32EDL) (S-LCD PANEL)
1-811-353-12 LCD PANEL (A32V7) (AUO PANEL)
1-811-424-11 LCD PANEL (FDMF315NN01) (CMI PANEL)
26 4-256-391-01 BRACKET, PANEL (C)
27 4-256-392-02 BRACKET, PANEL (H)
28 4-268-446-01 SHEET, INSULATION (G10)
29 1-474-358-11 STATIC CONVERTER (TV)-G10AV
(for S-LCD PANEL, CMI PANEL)
1-474-359-11 STATIC CONVERTER (TV)-G10BV
(for AUO PANEL)
30 A-1796-818-A LD_BLK A MOUNT
31 A-1858-621-A BATV COMPE N4 (SERVICE) EX720(AEP),EX721
A-1858-651-A BATV COMPE MHP (SERVICE) EX720(IT)
32 4-258-700-23 BRACKET SIDE (BAT-V32) MOLD
28
Note: When changing LCD Panel it may be necessary to order LABEL(BAT-V MOLD
SIDE), please check Miscellaneous parts list for part number.
Note: Please check TB 11TV025 for LCD Panel or PSU compatibility information.
