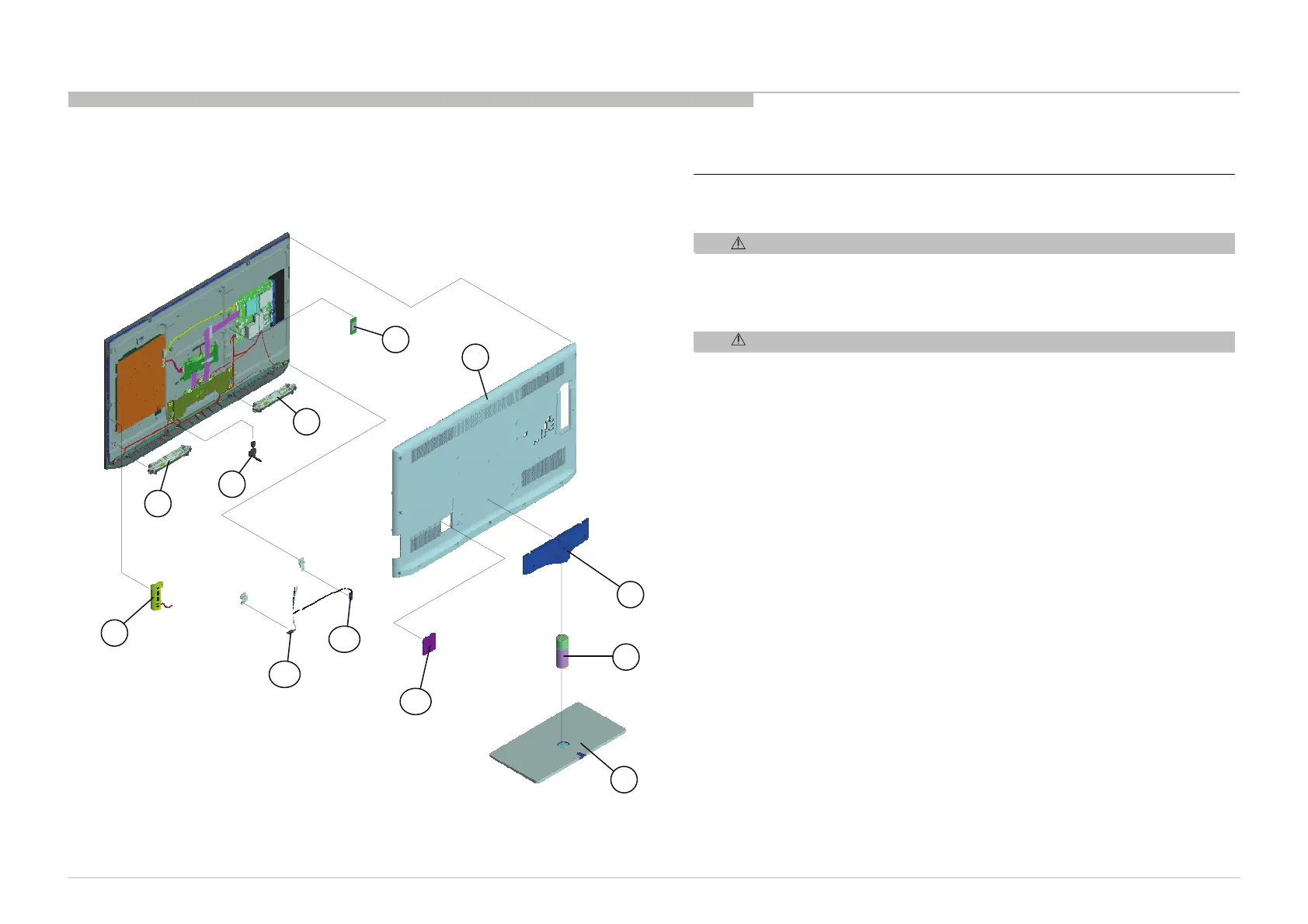

5-2-1. CHASSIS-1
EXPLODED VIEWS
5-2. KDL-40EX720/721/723/724
4
1
5
8
11
9
10
3
2
2
7
6
REF. No. PART No. DESCRIPTION REMARK
1 1-489-443-21 SWITCH UNIT
2 1-858-594-12 LOUDSPEAKER (3X15CM)
3 1-838-271-12 POWER-SUPPLY CORD (WITH CONN.)
4 1-458-355-11 WIRELESS LAN CARD EX721,724
5 4-275-424-02 REAR COVER(40)
6 1-754-746-11 ANTENNA EX721,724
7 1-754-749-11 ANTENNA EX721,724
8 4-259-168-11 COVER, AC (M)
9 4-267-495-11 STAND HEAD (ML9) EX720
4-267-498-01 STAND HEAD (ML9) EX721,723,724
10 4-259-180-02 NECK (ML9)
11 4-269-901-04 STAND, BASE(ML2) EX720
4-267-582-03 STAND, BASE A(ML1) EX721,724
4-267-558-02 STAND, BASE(ML2) EX723
