KDL-32/40EX720,721,723,724(AEP/UK)
83

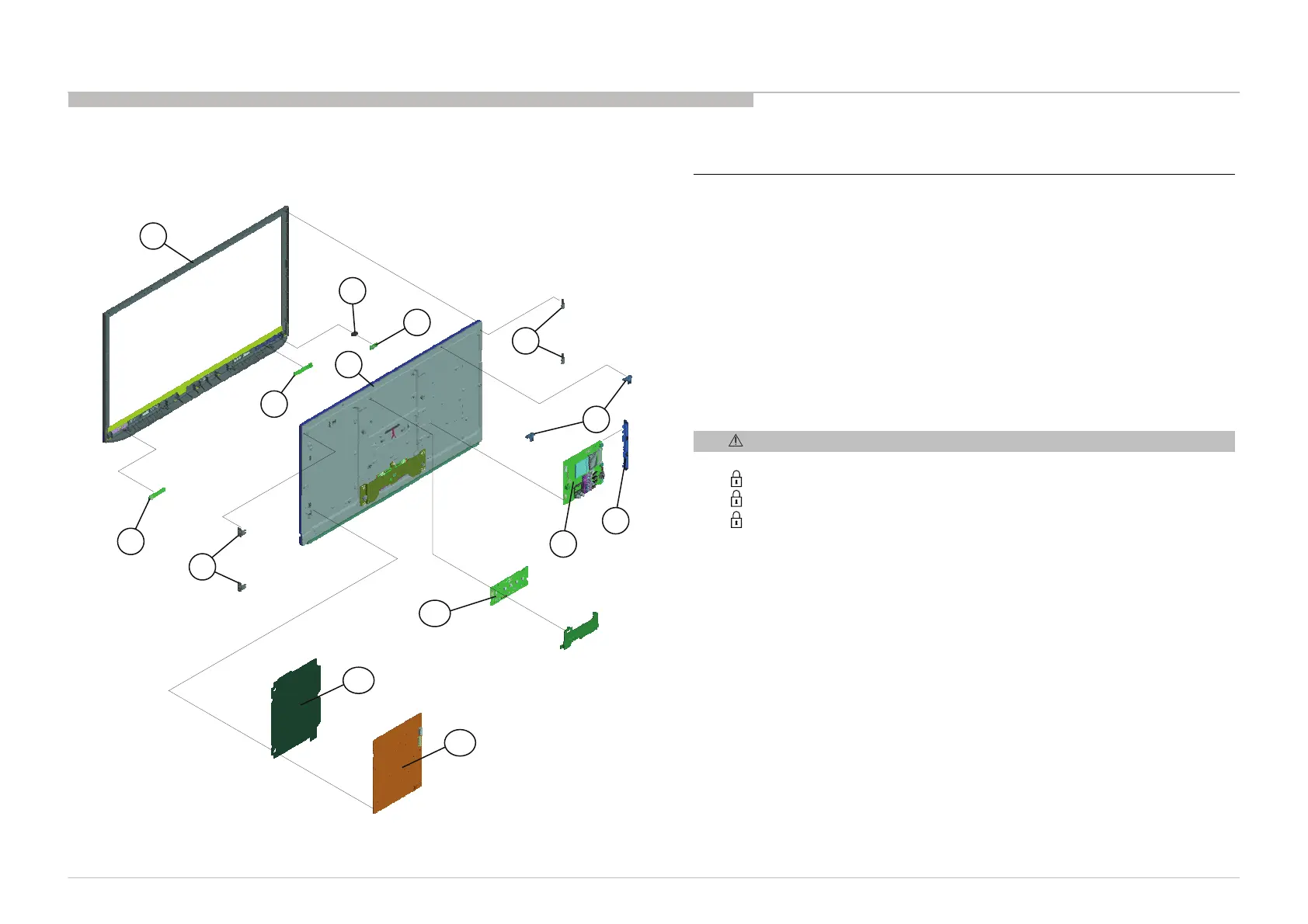

5-2-2. CHASSIS-2
EXPLODED VIEWS
5-2. KDL-40EX720/721/723/724
23
29
24
22
21
30
32
31
27
26
20
26
25
REF. No. PART No. DESCRIPTION REMARK
20 4-266-690-02 BEZEL(40 CAS) EX720,723
4-266-690-22 BEZEL(40 CAS) EX721,724
21 A-1792-512-A HEM2 MOUNT
22 A-1792-878-B HLR2 MOUNT(B-O-AEP)
23 * 1-856-184-11 FRENEL LENS
24 A-1806-495-A HMS3_B MOUNT
25 1-811-340-12 LCD PANEL (S40EDL) (S-LCD PANEL)
25 1-811-354-12 LCD PANEL (A40V1) (AUO PANEL)
25 1-811-481-11 LCD PANEL (C400HK2-LE1) (CHI PANEL)
26 4-256-391-01 BRACKET, PANEL (C)
27 4-256-392-02 BRACKET, PANEL (H)
28 4-268-443-02 SHEET, INSULATION (G4)
29 1-474-300-11 STATIC CONVERTER (TV)-G4B
30 A-1796-818-A LD_BLK A MOUNT
31 A-1858-621-A BATV COMPL N4 (SERVICE) EX720(AEP), EX721
A-1858-622-A BATV COMPLN4 MHP (SERVICE) EX720(IT)
A-1867-186-A BATV COMPL N4 T2 (SERVICE) EX723,724
32 4-256-424-23 BRACKET SIDE (BAT-V) MOLD
28
Note: When changing LCD Panel it may be necessary to order LABEL(BAT-V MOLD
SIDE), please check Miscellaneous parts list for part number
