KDL-32/40EX720,721,723,724(AEP/UK)
96

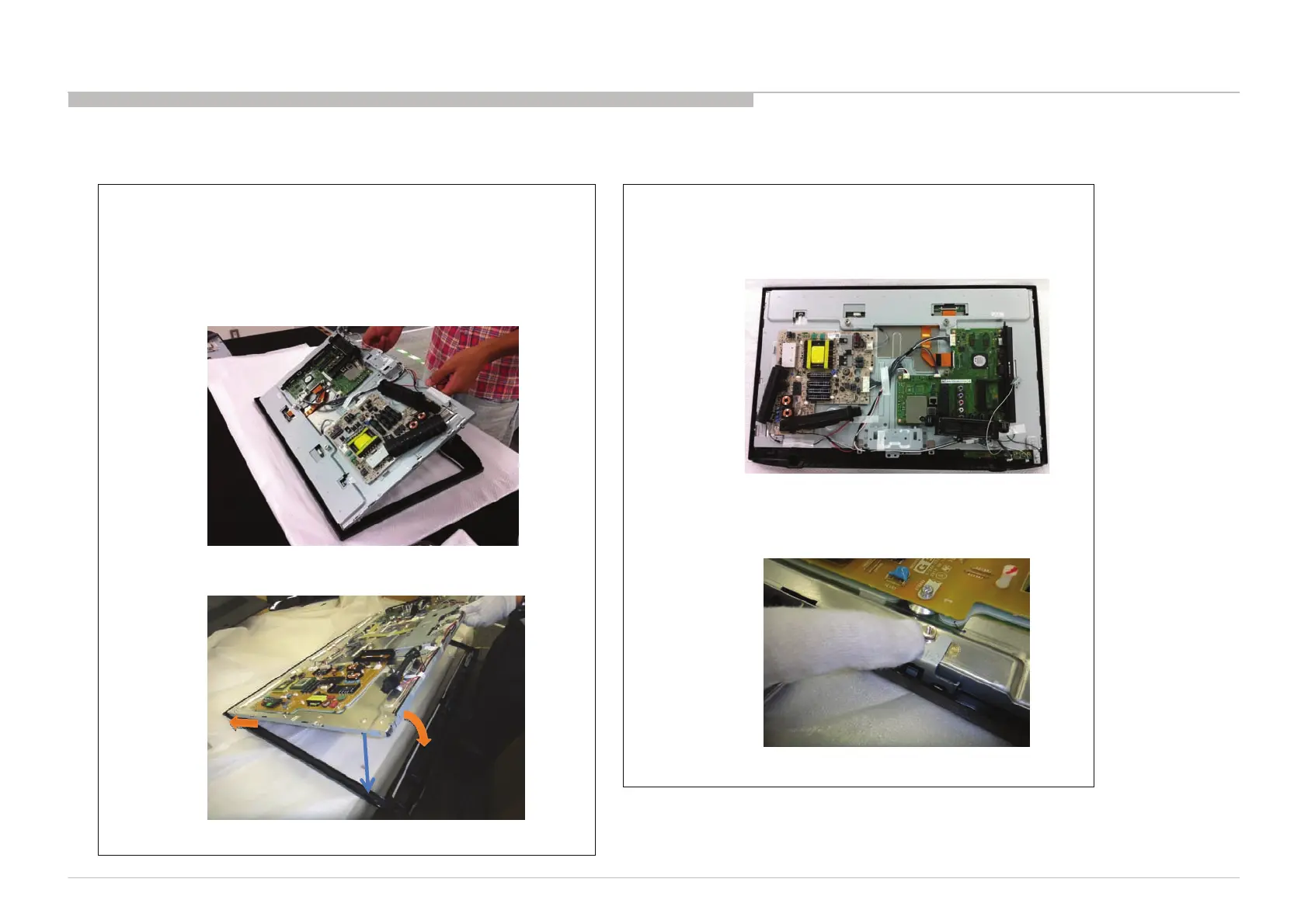

1.Putting Panel on to bezel
(1) Put from upper side adjusting position to L/R side.
(2) Down panel on to bottom caring about fitting bezel position
ribs and panel cutout area.
Pay attention to the double sided tape, put the panel on to the bezel assembly as shown below.
3. PUTTING THE PANEL ON TO THE BEZEL
(1)Putonupperside
(2)Putdown
Careaboutpositioningrib(L&R)
<32/37/40/46/55/60 inch>
<22/24/26 inch>
Please lock Panel with hooks of Bezel.
2.Lock with hooks of Bezel / Putting on “Bracket, panel”
<32/37/40/46/55/60 inch>
<22/24/26 inch>
Put brackets and confirm fixed by hook.
APPENDIX-2
