- 6 -
WAX3F
RM-ED009
Detail B

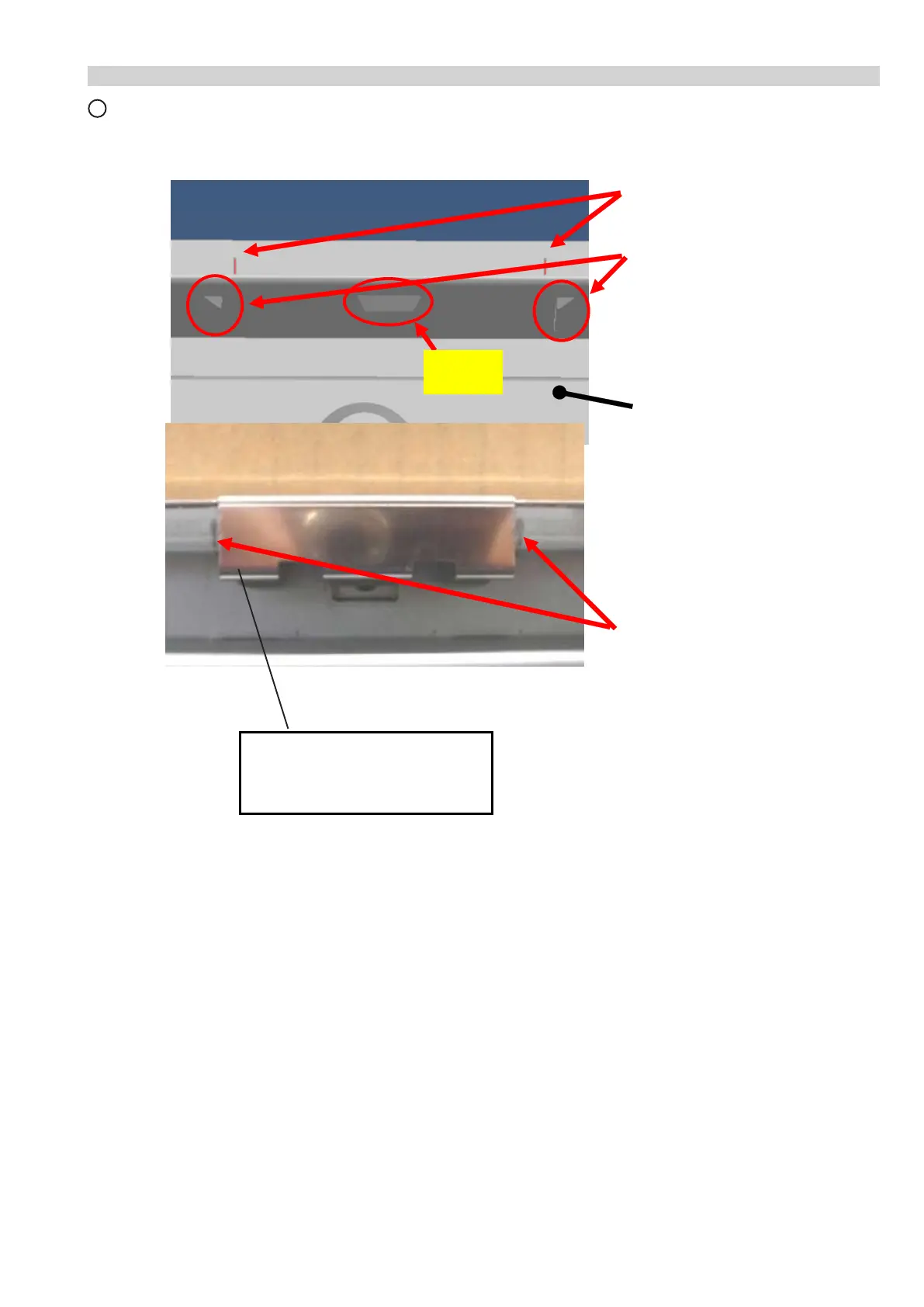

1 Fit Bspring, Panel(26), 2-682-457-01, as shown in the photograph.
Stopper for
panel clip.
SPRING, PANEL(26)
2-682-457-01
Guidelines for operators
Side guide for panel
clip alignment
Bottom Chassis
Guidelines for operators
Using the guide line stamp on the back fit clip all the way to the end.
Note: When replacing the panel ensure the wire dressing is replaced exactly as it was before
dismantling the TV set.
