- 5 -
WAX3F
RM-ED009

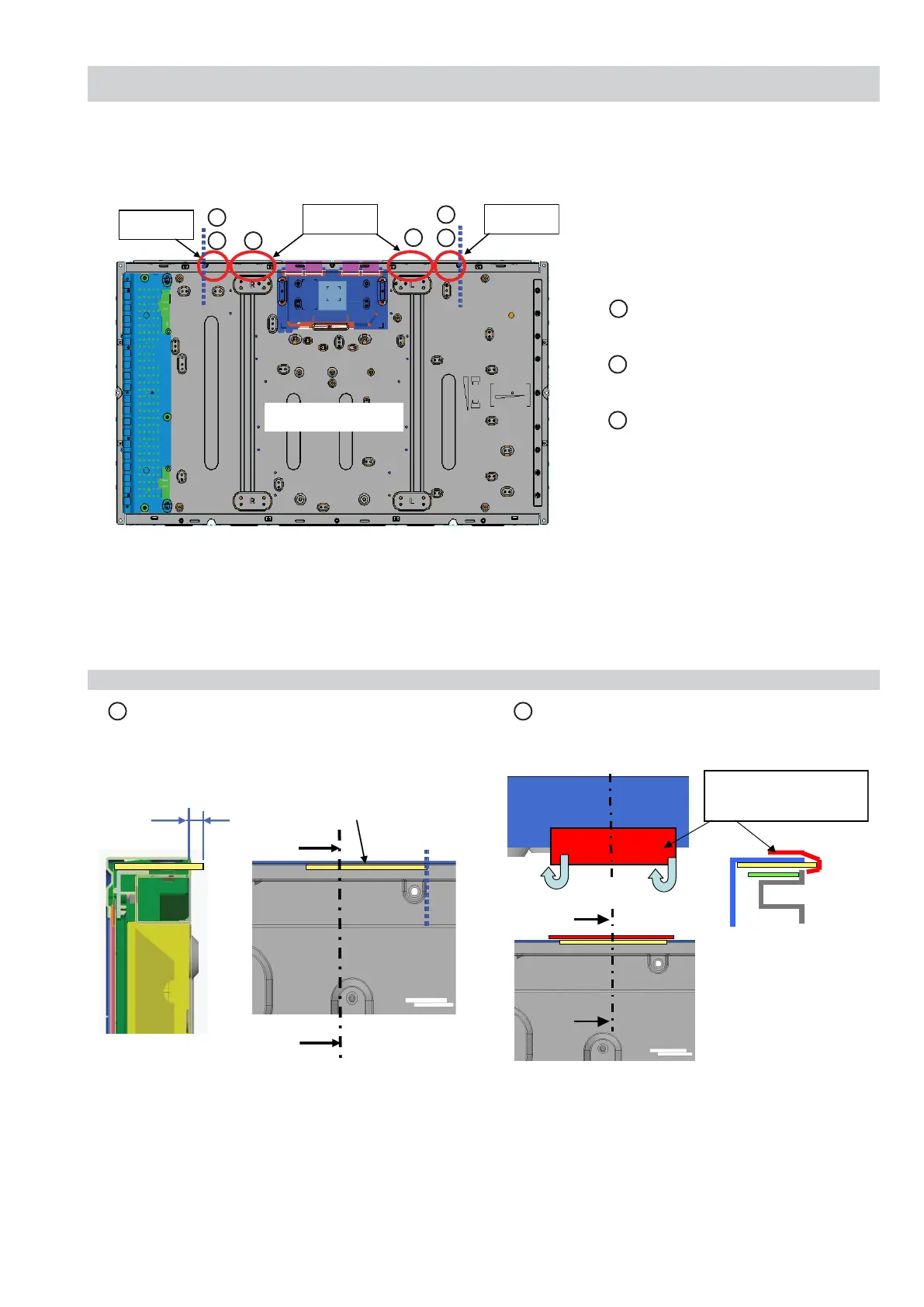

S-LCD PANEL EMC COUNTERMEASURES
1 INSULATING SHEET
3-290-717-01 2pcs
2 SHEET(CORE), C
4-100-136-01 2pcs
3 BSPRING, PANEL(26)
2-682-457-01 2pcs
(Left and Right side are Symmetric)
Detail is shown below.
In WAX3F-LC models which use the Type S panels the following EMC countermeasures must be observed when the panel is replaced.
Section
C-C
C
C
1 Insulating Sheets, 3-290-717-01, must be inserted between
the top and bottom chassis of the panel as shown below.
Less than 6mm
Align Insulating Sheet
(3-290-717-01) horizontally as
shown by the blue dotted line
2 Sheet (Core), C, 4-100-136-01, must be fitted as shown
below and fixed with adhesive to prevent movement.
Detail A
TYPE S PANEL
Detail A
Detail B
Detail A
1
2
3
1
2
3
SHEET(CORE), C
4-100-136-01
D
D
Section D-D
