KDL-60/55/46NX720/55/46HX820/XBR-65/55/46HX929
4-270-401-13(1)

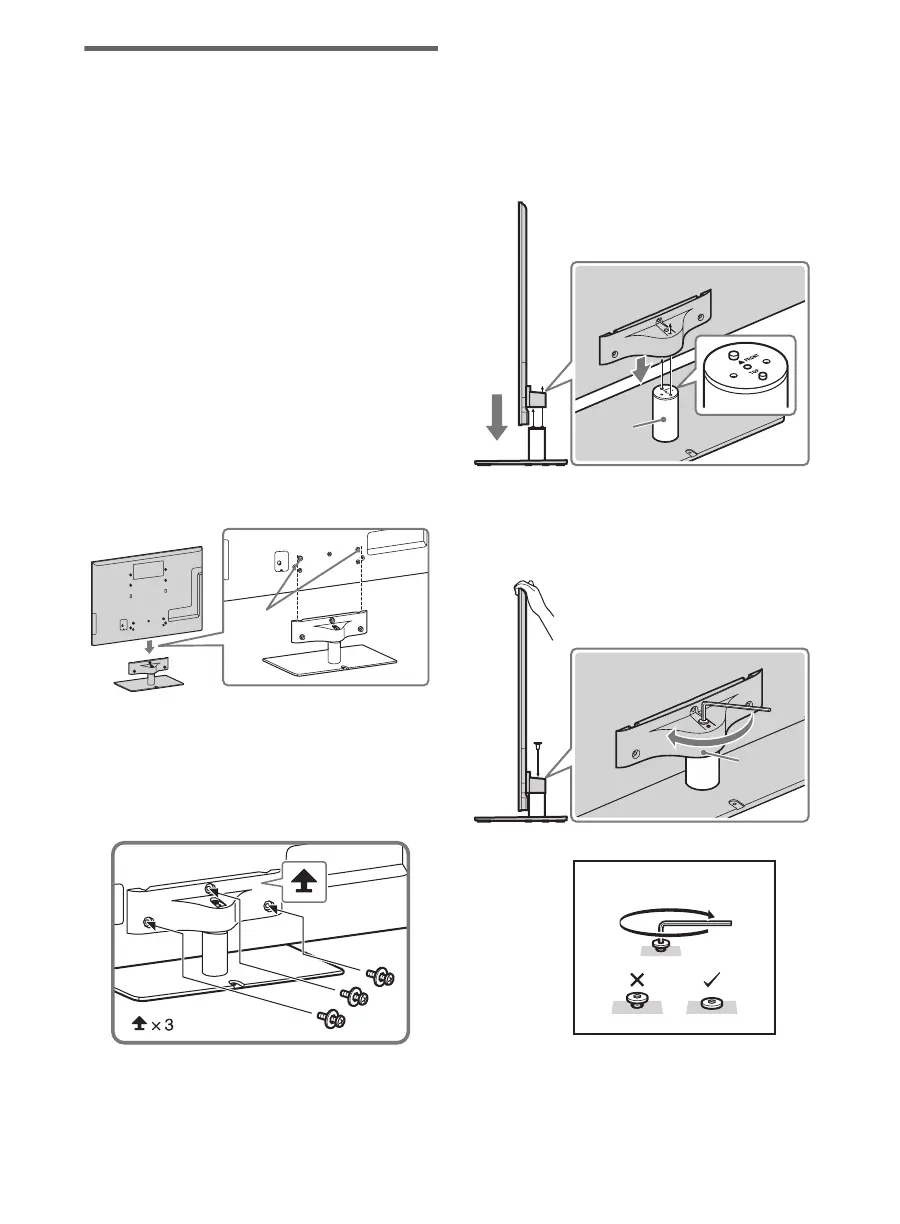

1: Attaching the Table-Top
Stand (except
XBR-65HX929)
Refer to the supplied Table-Top Stand
instruction leaflet for proper attachment.
~
• Do not put stress on the LCD panel or the
frame around the screen.
• Be careful to not pinch your hands or the AC
power cord when you install the TV unit to the
Table-Top Stand.
For XBR-55/46HX929,
KDL-55/46HX820 and
KDL-55/46NX720
1 Place the TV unit on the Table-Top
Stand.
~
• Align the TV from the top, slide it in until the
guide pins cannot be seen.
2 Use the supplied screws to attach the
TV unit to the Table-Top Stand.
~
• If you use an electric screwdriver, set the
torque at approximately 1.5 N·m {15 kgf·cm}.
For KDL-60NX720
1 Align with the two dowels of the
Table-Top Stand, and gently place
the TV, checking that the f mark is
facing the front.
2 Attach the TV and Table-Top Stand
with the supplied screw and hexagon
wrench.
~
• Tighten to approximately 3 N·m {30 kgf·cm}.
Guide
pins
Neck
*
Head
* 3 N·m {30 kgf·cm}
To Next Page
