3: Connecting the TV
~
• Use an antenna cable connector no greater than
14 mm thick.
• Use an HDMI cable connector within 12 mm
(thickness) × 21 mm (width).

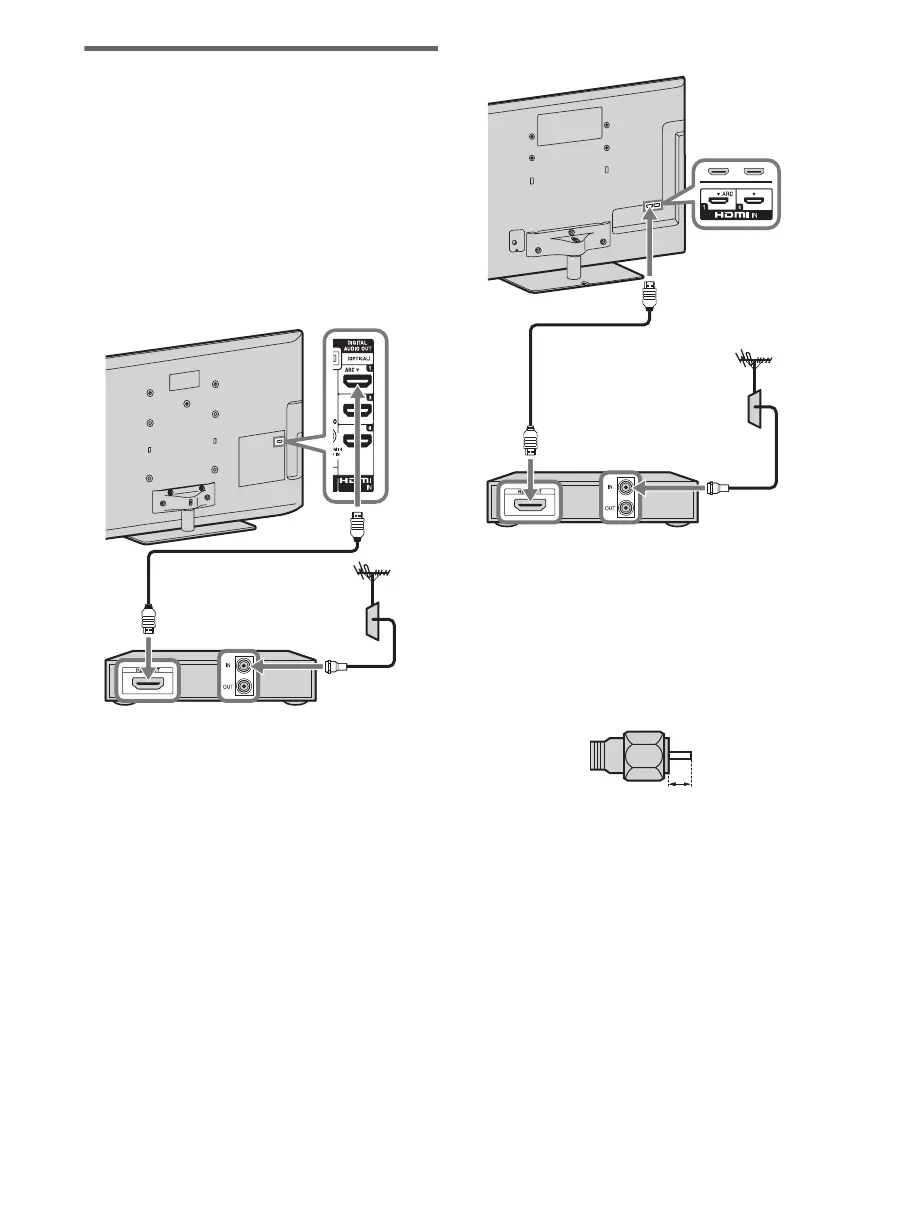

Shown with a Set Top Box with HDMI
connection
B XBR-65HX929
B Except XBR-65HX929
Recommendation of the F type plug
The one based on the following drawing is
recommended about the F type plug.
Projection of the inner wire from the
connection part must be less than 1.5 mm.
Set Top Box
Set Top Box
1.5 mm max.
(Reference drawing of the F type plug)
