13
KLV-32L500A
KLV-32L500A

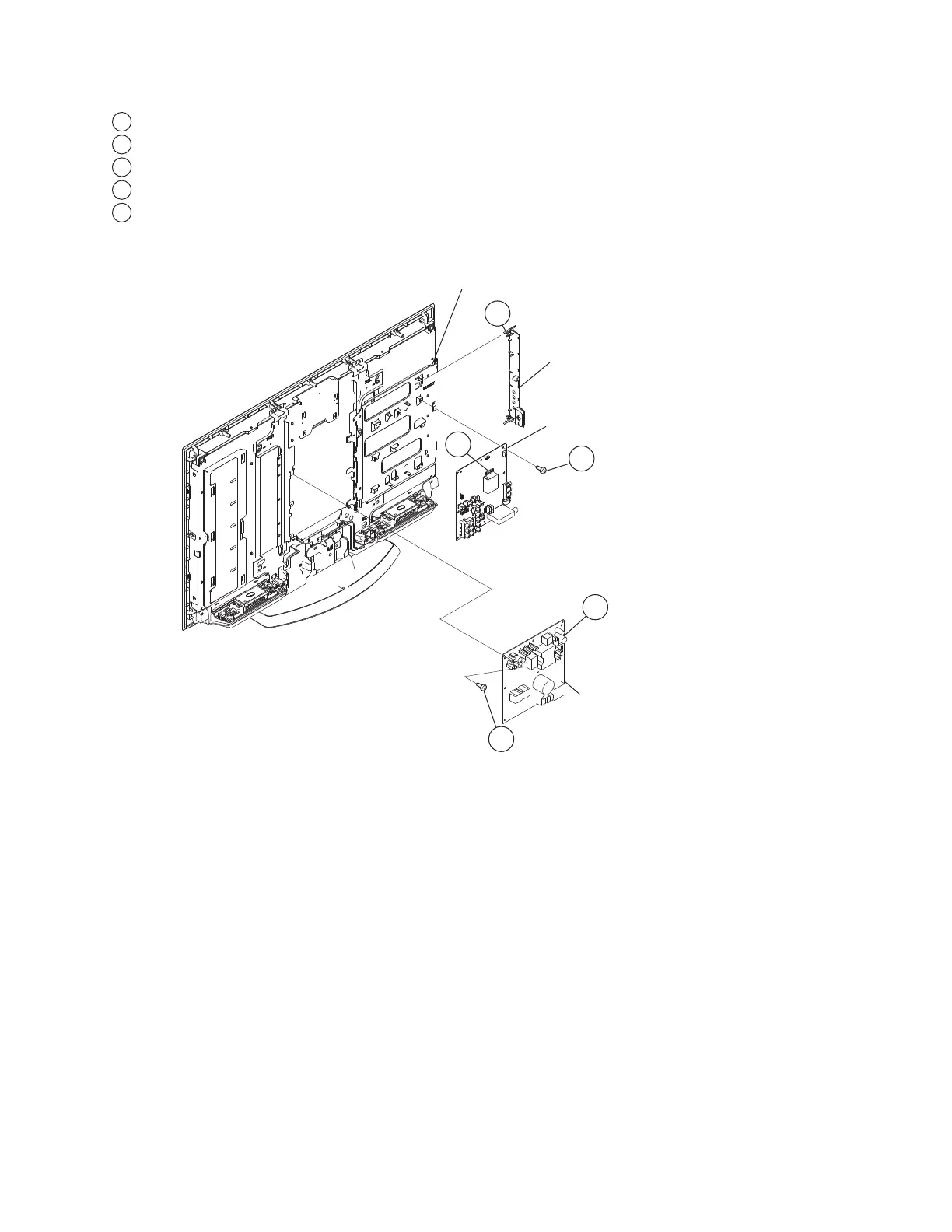

1-3. BT2 BOARD AND GT3 (POWER) BOARD REMOVAL
1
Unhook Side Jack Cover from Main Bracket
2
Disconnect 5 connectors from BT2 Board
3
Remove 5 screws from BT2 Board
4
Disconnect 3 connectors from GT3 (Power) Board
5
Remove 6 screws from GT3 (Power) Board
3 Screw,
+BVST3X8
2
1
4
Side Jack Cover
BT2 Board
GT3 (Power) Board
Main Bracket
5 Screw,
+BVST3X8
To Next Page
