Sony KLV-32L500A Service Manual

17
KLV-32L500A
KLV-32L500A

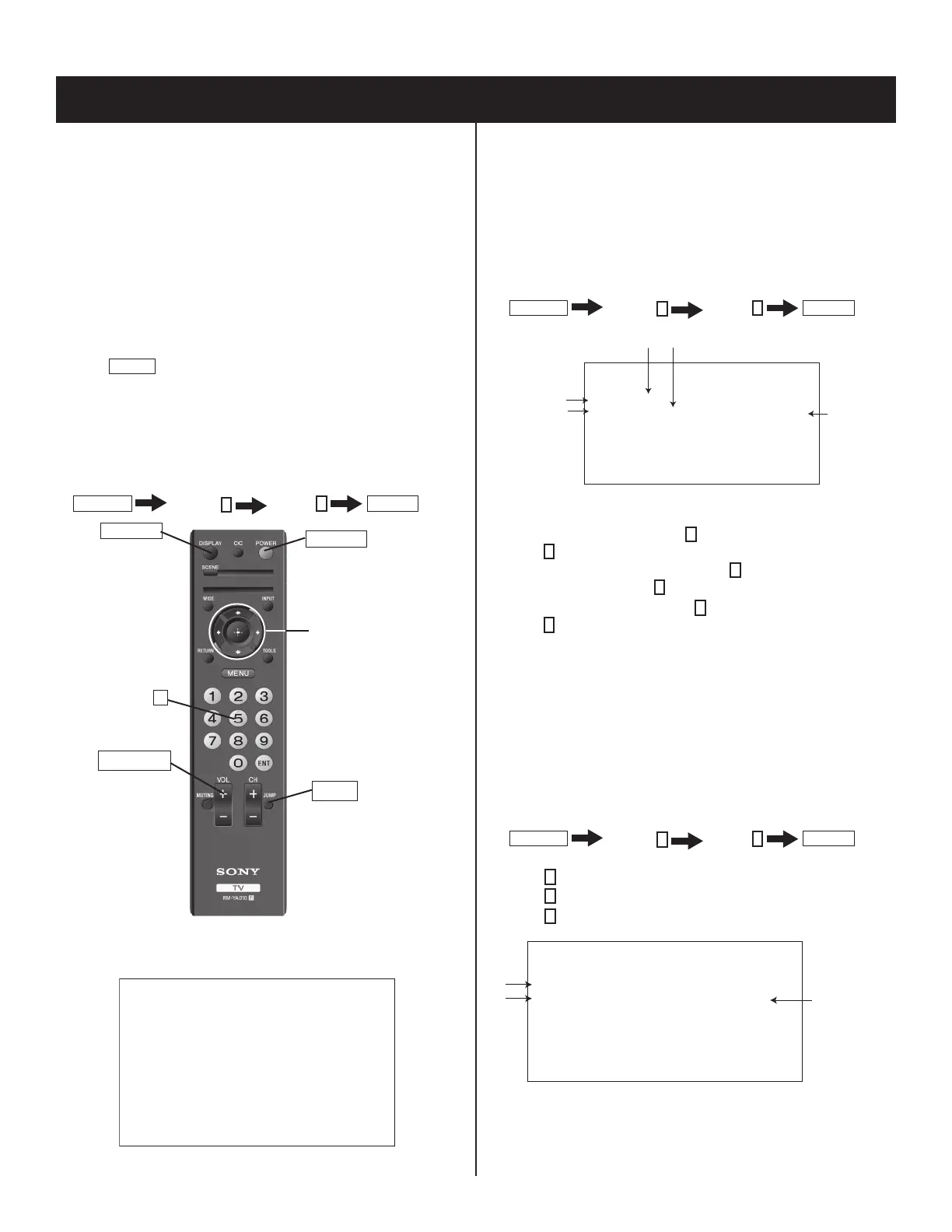

SECTION 2: SERVICE ADJUSTMENTS
2-1. VIEWING SERVICE ADJUSTMENT DATA
There are no adjustments necessary for these models. All data has been
set for optimal viewing for our customers. The following sections are for
informational purposes only.
2-2. ACCESSING SERVICE ADJUSTMENT
MODE
Before accessing service mode:
1. Turn the TV on.
2. Press
INPUT
on the Remote Commander and then select Video 1.
Viewing service mode
1. TV must be in standby mode. (Power off).
2. Press each of the following buttons on the Remote Commander
within a second of each other. The buttons should be pressed fi rmly
and held for one second.
DISPLAY
Channel
5
Volume
+
POWER
.
POWER
Onscreen cursor
and select button
DISPLAY
RM-YA010
5
VOLUME+
JUMP
The fi rst service menu (TV) displays.
VIDEO1
000 WB
000 WRP_C
SERVICE
LOCTOP
USB
TM1.015LT
MR6.0.0
TD0.000
SM0.000
139
PROGRAM:
GTV:
NVM:
PROGRAM:
Sample TV Service Menu
2-3. USING THE REMOTE COMMANDER TO
VIEW SERVICE DATA
Use the buttons on the Remote Commander to access the service menu
items and adjust the data values.
1. Access Service Mode.
Press the following buttons on the Remote Commander within a
second of each other:
DISPLAY
Channel
5
Volume
+
POWER
.
VIDEO1
000 WB
000 WRP-C
SERVICE
LOCTOP
USB
TM1.015LT
MR6.0.0
TD1.000
SM0.000
139
PROGRAM:
GTV:
NVM:
PROGRAM:
Data Value
Category
Number
Adjustment
Item Number
Category Adjustment Item
The screen displays the fi rst category in the selected service menu.
2. To change the category, press
2
to move to the next category, or
press
5
to move to the previous category.
3. To change the adjustment item, press
1
to move to the next
adjustment item, or press
4
to move to the previous adjustment item.
4. To change the data value, press
3
to increase the data value, or
press
6
to decrease the data value.
5. To exit service mode, turn the power off.
2-4. RESETTING TO FACTORY DEFAULTS
Use the following instructions to restore the User Controls and
Channel Memory settings to the preset factory conditions.
1. Access Service Mode.
Press the following buttons on the Remote Commander within a
second of each other:
DISPLAY
Channel
5
Volume
+
POWER
.
The screen displays the fi rst category in the selected service menu.
2. Press
2
until the SERVICE category displays.
3. Press
1
until the AUTOSET FACTORY adjustment item displays.
4. Press
6
to decrease the data value to 0.
VIDEO1
001 SERVICE
002 AUTOSET FACTORY
SERVICE
LOCTOP
USB
TM1.015LT
MR6.0.0
TD1.015
SM0.106
0
PROGRAM:
GTV:
NVM:
PROGRAM:
Data Value
5. To save changes and exit service mode, turn the TV off.
