KDL32XBR950/KDL42XBR950 (UC) 1-3

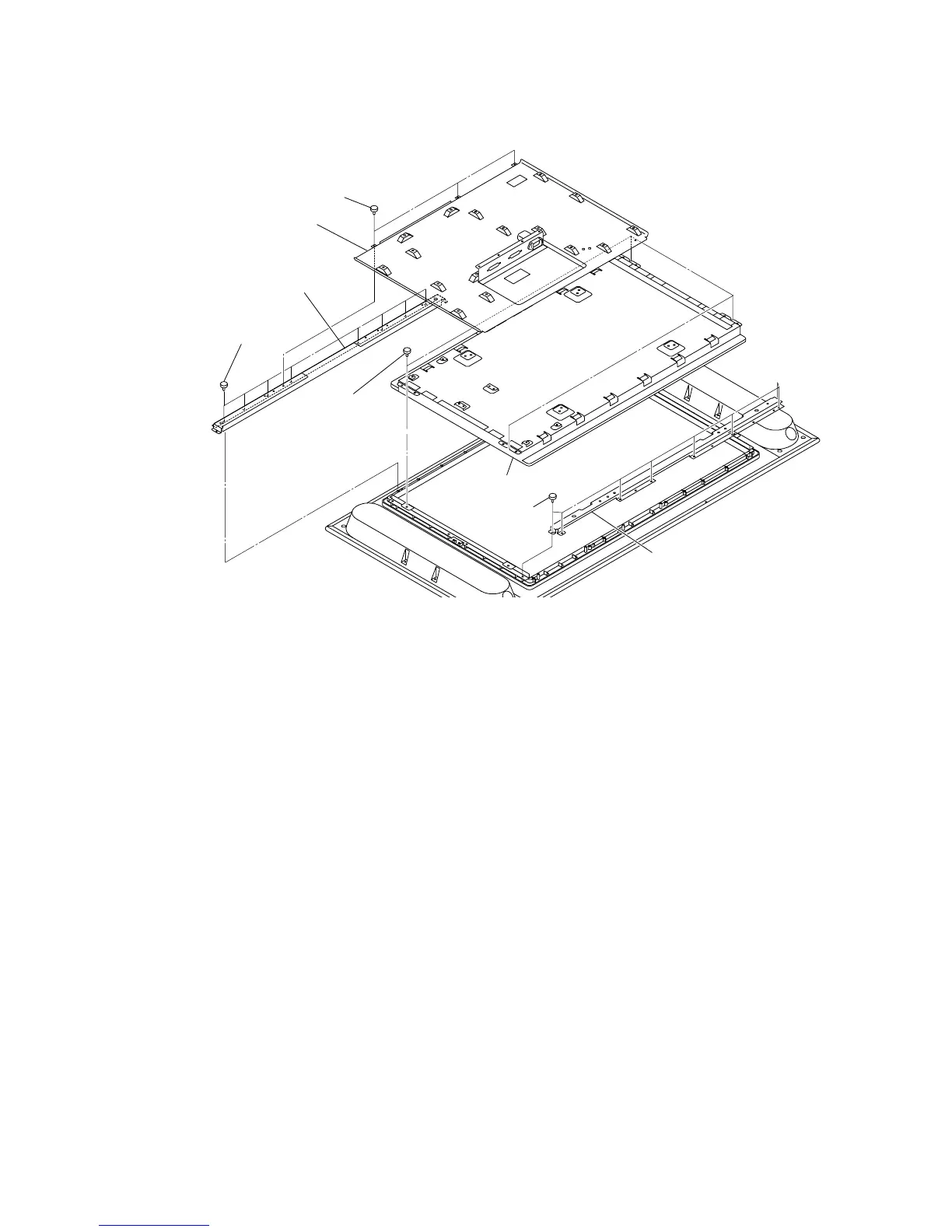

1-1-5. LCD PANEL REMOVAL
6
5
4
8
1
2
3
7
Three screws
(+BVTT 3X6)
Chassis
Panel support, S32 upper
Panel support, S32 lower
Eight screws
(+BVTP 4X10)
Eight screws
(+BVTP 4X10)
Four screws
(+BVTT 4X10)
LCD panel
