Sony LDM-3210 - MEDIA RECEIVER UNIT Exploded View

KDL32XBR950/KDL42XBR950 (UC) 4-7

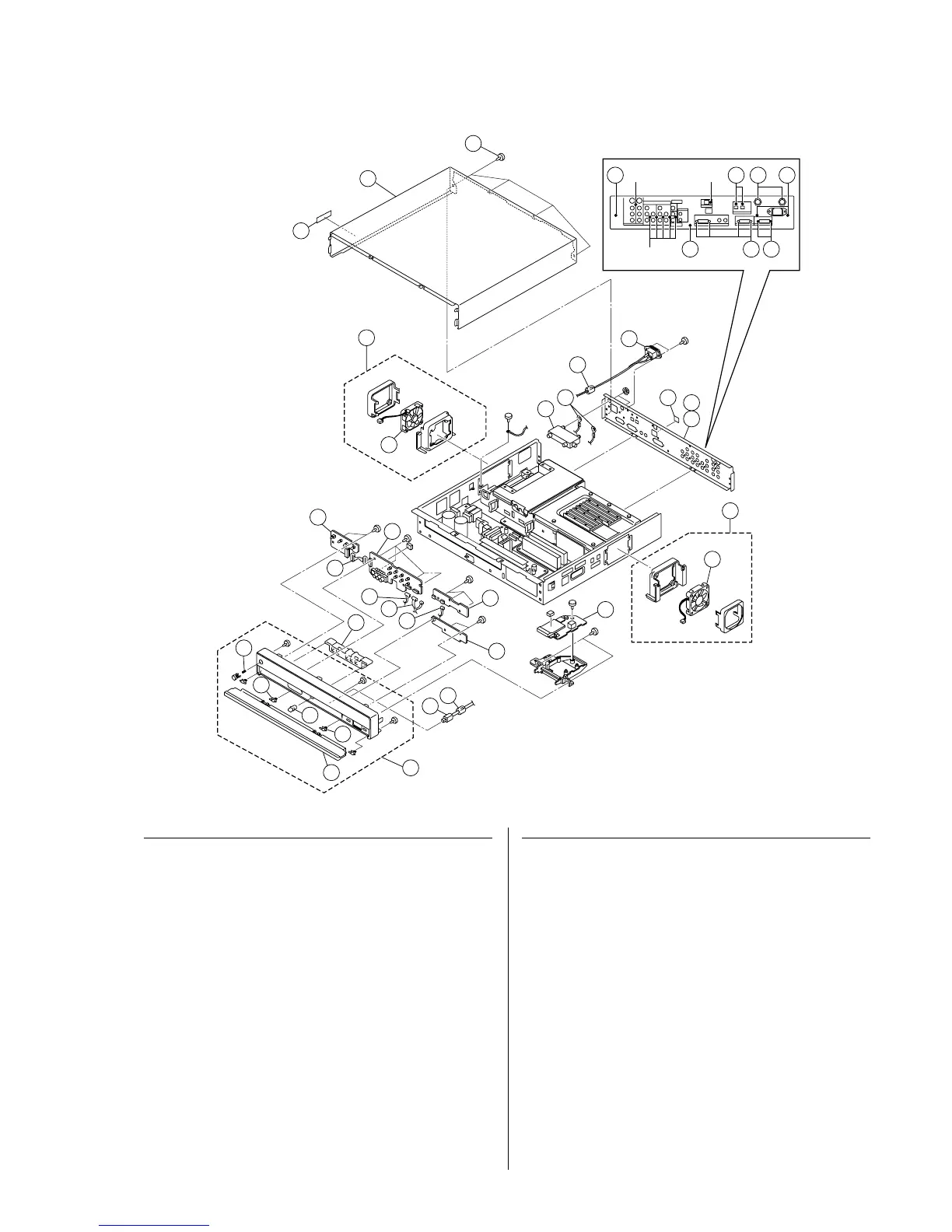

4-3. MEDIA RECEIVER UNIT (MBD-XBR950L)
4-3-1. MEDIA RECEIVER UNIT-1
REF. No. PART No. DESCRIPTIONRE MARK
REF. No. PART No. DESCRIPTIONRE MARK
251 4-097-980-01 COVER, TOP
252 4-080-960-02 SCREW M3, SW
253 4-098-721-03 PANEL (U), REAR
254 4-635-966-01 SCREW (HEX)
255 4-662-693-03 GRIP, M2.6 S HEAD (EG)
256 3-682-691-00 NUT, WASHER HEXAGON
257 1-786-183-13 SWITCH, ANTENNA
258 1-817-957-11 AC INLET
259 * A-1405-754-A H1 BOARD, MOUNT
260 * A-1405-755-A H2 BOARD, MOUNT
261 * A-1405-757-A H4 BOARD, MOUNT
262 * A-1405-756-A H3 BOARD, MOUNT
263 1-823-515-31 CORD WITH CONNECTOR (I-LINK)
264 * A-1302-555-A QH BOARD, COMPLETE
265 X-4042-287-3 FRONT ASSY, PANEL 266-269
266 4-042-192-01 CATCHER, PUSH
267 4-045-250-51 DAMPER
268 4-066-103-01 SPRING, COMPRESSION
269 X-4042-288-1 DOOR ASSY (U)
270 A-1605-928-A BLOCK (R) ASSY, FAN 272
271 A-1604-707-A FAN BLOCK (L) ASSY 272
272 1-787-088-11 D.C. FAN
273 * 4-097-978-01 COVER, CONNECTOR
274 * X-4042-481-2 REAR PANEL ASSY
275 1-469-241-11 CORE, FERRITE (RFC-8 BK)
276 * 4-098-724-01 LABEL, MODEL NAME
277 * 1-900-277-73 LUG CONNECTOR ASSY
278 * 1-900-277-63 ZH CONNECTOR ASSY 12P
279 * 1-900-282-66 XA CONNECTOR ASSY 20P
280 * 1-900-277-69 ZH CONNECTOR ASSY 2P
281 * 1-900-277-70 ZH CONNECTOR ASSY 9P
282 * 4-099-174-01 SHADE LED (U/C)
#12 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#17 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#18 7-682-961-01 SCREW +PSW 4X8
#19 7-682-348-09 SCREW +RK 3X8
273
274
265
269
268
282
267
266
267
#17
#17
#17
272
257
277
270
253
263
275
259
281
278
279
262
264
260
261
272
271
258
275
276
252
252
252 256 252
255254
251
252
#12
#12
#19
#12 #12
#12
#12
#12
#12
#18
#12
280
