Sony LDM-3210 - Display Unit (Ldm-3210); Display Unit-1

4-2 KDL32XBR950/KDL42XBR950 (UC)

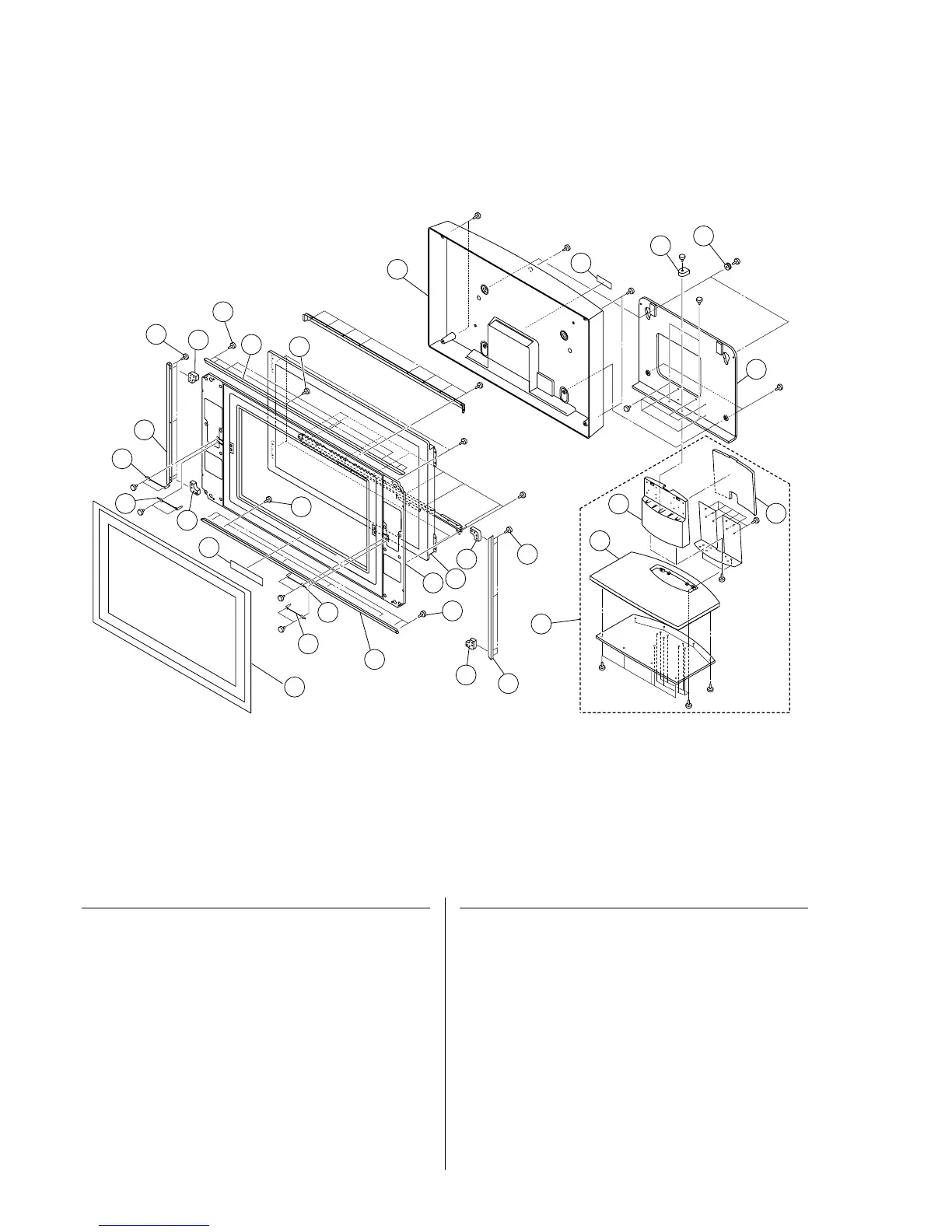

4-1. DISPLAY UNIT (LDM-3210)
4-1-1. DISPLAY UNIT-1
1 4-099-703-01 PANEL, 32 FRONT
2 4-099-659-02 SPEAKER TERMINAL, 32 W
3 4-099-661-02 SPEAKER TERMINAL, 32 S
4 * 4-092-730-02 SHEET, LIGHT INTERCEPTION
5 * 4-099-654-01 FRAME 32 (H)
6 * 4-099-668-01 JOINT, CORNER
7 * 4-099-651-02 FRAME 32 (V)
8 X-4043-127-1 32S BEZEL SUB ASSY
9 1-805-538-11 LCD PANEL
10 4-091-675-01 SCREW, FIXED
11 * 4-099-654-11 FRAME 32 (H)
12 4-099-669-11 32 COVER REAR
13 * 4-101-424-01 PLATE, MODEL NAME
14 * X-4042-812-1 STAND BRACKET ASSY
15 * X-4042-825-2 STAND SPACER ASSY
REF. No. PART No. DESCRIPTIONRE MARK
REF. No. PART No. DESCRIPTIONRE MARK
16 4-091-681-01 HOOK
17 X-4042-478-4 STAND ASSY 18-20
18 * 4-099-679-02 BASE, STAND
19 * 4-099-677-03 SUPPORT, STAND
20 * 4-099-678-02 COVER, STAND SUPPORT
21 4-100-990-01 SCREW, FRAME
#1 7-685-261-19 SCREW +KTP 4X12 TYPE2 NON-SLIT
#2 7-685-262-11 SCREW +KTP 4X14 TYPE2 NON-SLIT
#3 7-685-660-79 SCREW +BVTP 4X10 TYPE2 IT-3
#4 7-685-134-19 SCREW +P 2.6X8 TYPE2 NON-SLIT
#6 7-682-973-49 SCREW +PSW 5X16
#9 7-685-663-79 SCREW +BVTP 4X16 TYPE2 IT-3
#10 7-685-882-09 SCREW +BVTT 4X10 (S)
1
2
2
3
3
4
6
6
6
6
7
7
8
11
12
13
14
15
16
17
18
19
20
21
21
21
21
10
10
5
9
#6
#6
#2
#3
#3
#3
#3
#3
#1
#1
#4
#4
#4
#4
#3
#3
#9
#9
#9
#10
