Sony LDM-3210 - Des Board Removal; G2 Board Removal

KDL32XBR950/KDL42XBR950 (UC) 1-5

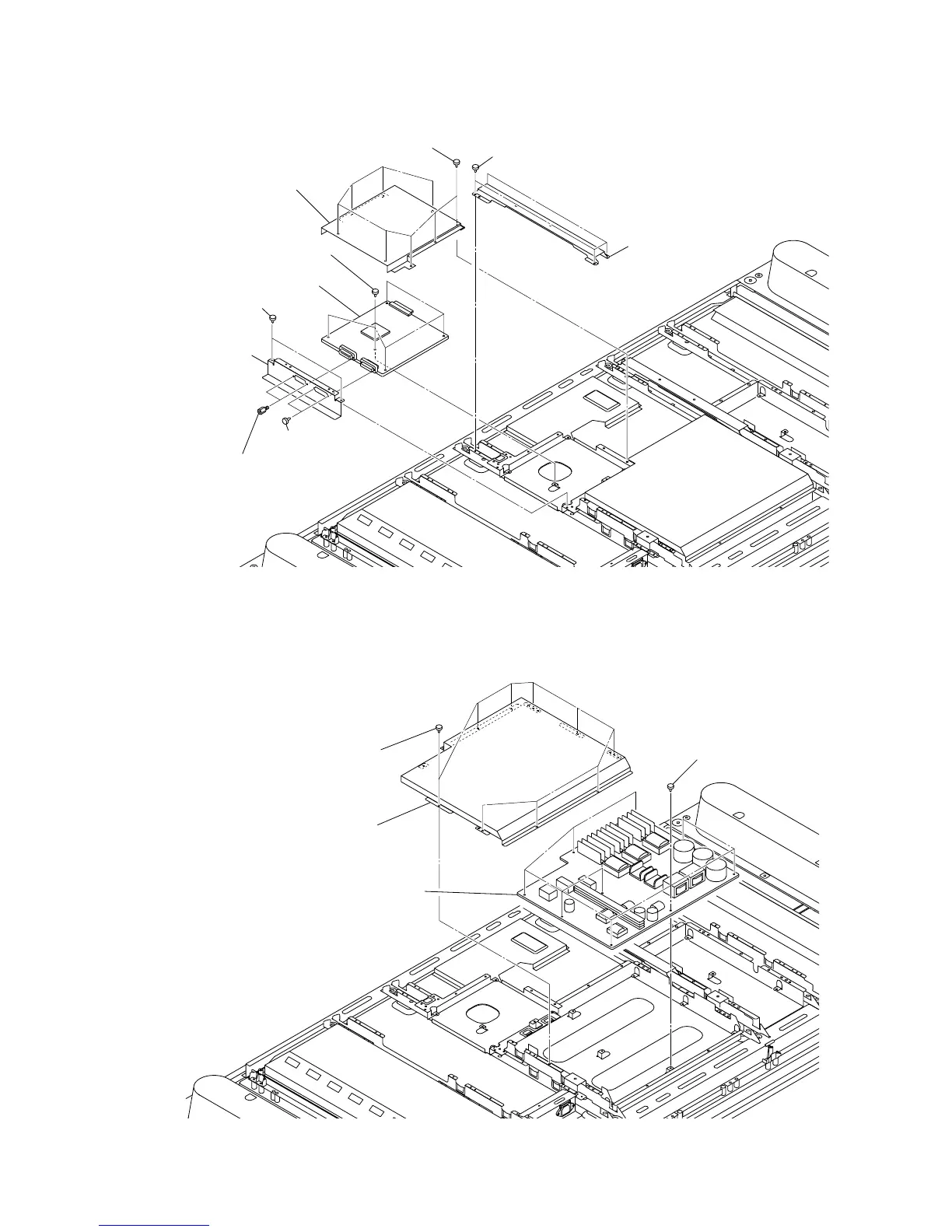

1-2-3. DES BOARD REMOVAL
1-2-4. G2 BOARD REMOVAL
1
2
4
5
3
6
7
8
9
0
Five screws
(+BVTT 3X6)
Eight screws
(+BVTT 3X6)
Four screws
(+BVTT 3X6)
Shield case
DES board
Two screws
(+BVTT 3X6)
Two screws
(M2.6 S HEAD EG)
Bracket
Terminal
bracket
Two screws (HEX)
1
2
3
4
Nine screws
(+BVTT 3X6)
Nine screws
(+BVTT 3X6)
Shield case
G2 board
