Chapter 2 Name and Functions of Parts 2-1 (E)

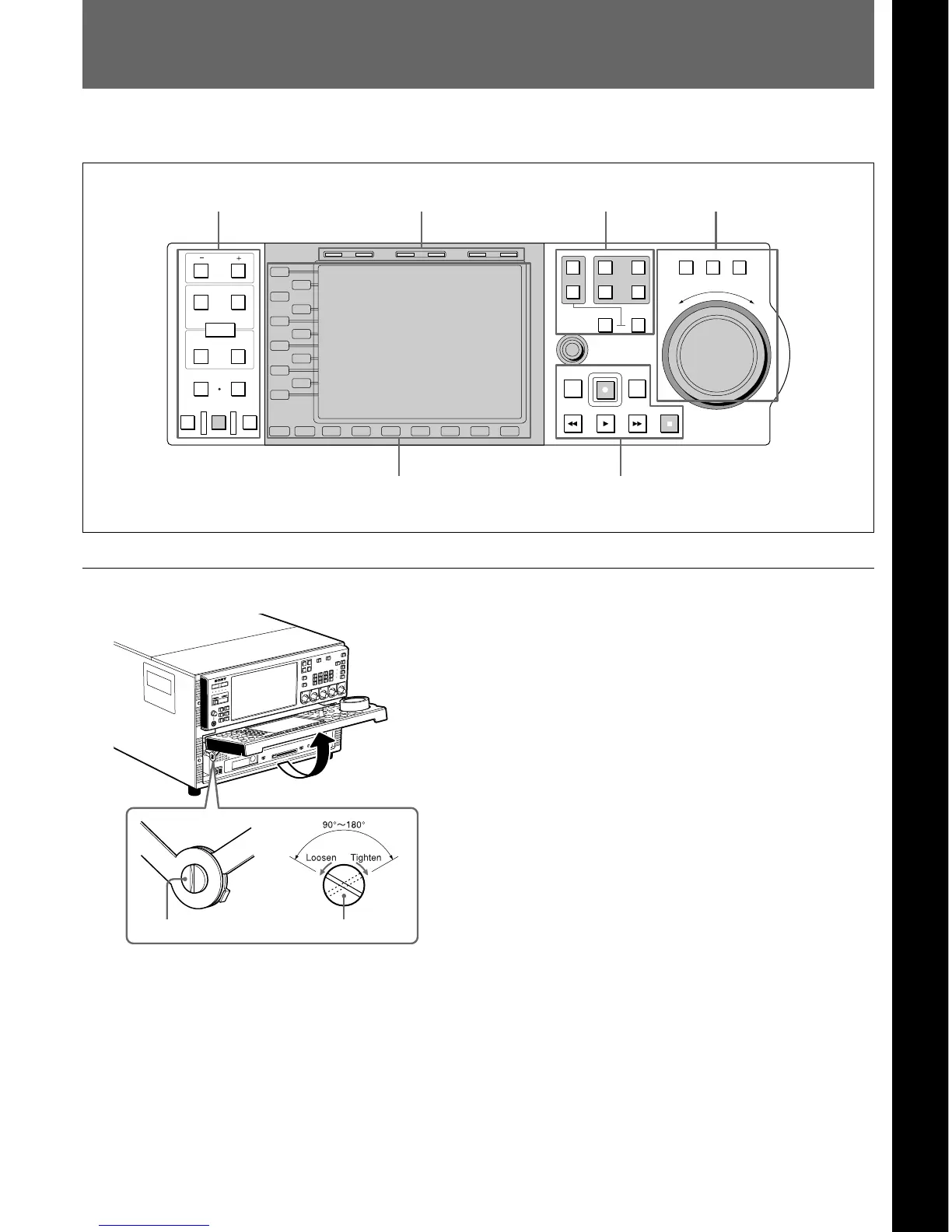

2-1 Front of the Panel
This section describes the front panel divided into six sections, by function.
R3/
P2
IN OUT
PB EE PB
L1
L2
L3
L4
L5
L6
L7
L8
L9
L10
L11
B1 B2 B3 B4 B5 B6 B7
MODE SHIFT
IN
DMC EDIT
PREVIEW
AUTO EDIT REVIEW
MEMORY
DELETE
OUT
TRIM
AUDIO
ENTRY
HOLD RESET TC/UB TIMER SEL
1
2
EXT
R1
R2/
P3
PORT SELECT
P1
SHUTTLE
MULTI
CONTROL
PLAYER
PREROLL EDIT
REW PLAY F. FWD STOP
REC
RECORDER
JOG VAR
R
E
V
E
R
S
E
F
O
R
W
A
R
D
Adjusting the stiffness of the control panel
Chapter 2 Name and Functions of Parts
Adjustment screws on both sides of the MAV-777 can
be tightened or loosened to change the stiffness of
the control panel as it opens and closes.
Turning the screws clockwise tightens the panel, and
turning them counterclockwise loosens it. The screws
rotate between 90° and 180°. Adjust as required.
However, please avoid opening and closing the control
panel when the screws are fully tightened.
Editing operation section Timecode section Port select section Search operation section
Function operation section and display Transport control section
Adjustment screw Adjustment screw
