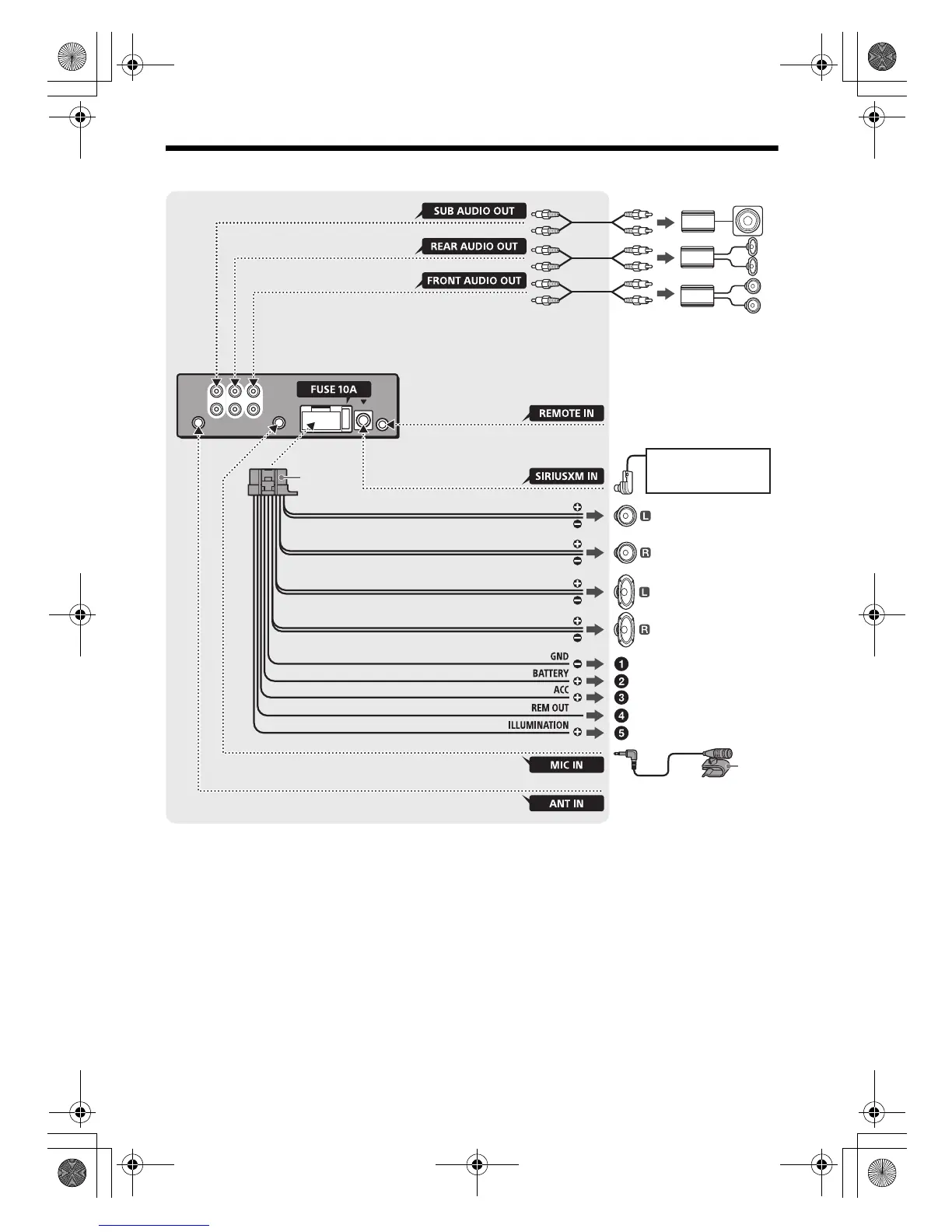

Connection (For MEX-N5100BT)
*1 Not supplied
*2 Speaker impedance: 4 – 8 Ω × 4
*3 RCA pin cord (not supplied)
*4 Depending on the type of car, use an adaptor for a
wired remote control (not supplied).
*5 Whether in use or not, route the microphone input
cord such that it does not interfere with driving
operations. Secure the cord with a clamp, etc., if it is
installed around your feet.
*6 For details on installing the microphone, see
“Installing the microphone (MEX-N5100BT only)”
(page 34).
*
5
*
6
from a wired remote control
(not supplied)*
4
Satellite radio tuner
(SiriusXM)*
1
White
White/black striped
Gray
Black
Ye l l ow
Red
Blue/white striped (MAX 0.4A)
from a car antenna (aerial)
Front speaker*
1
*
2
Rear speaker*
1
*
2
Gray/black striped
Green
Green/black striped
Purple
Purple/black striped
Orange/white striped
*
3
*
3
*
3
Subwoofer*
1
Power amplifier*
1
For details, see “Making
connections” (page 34).
