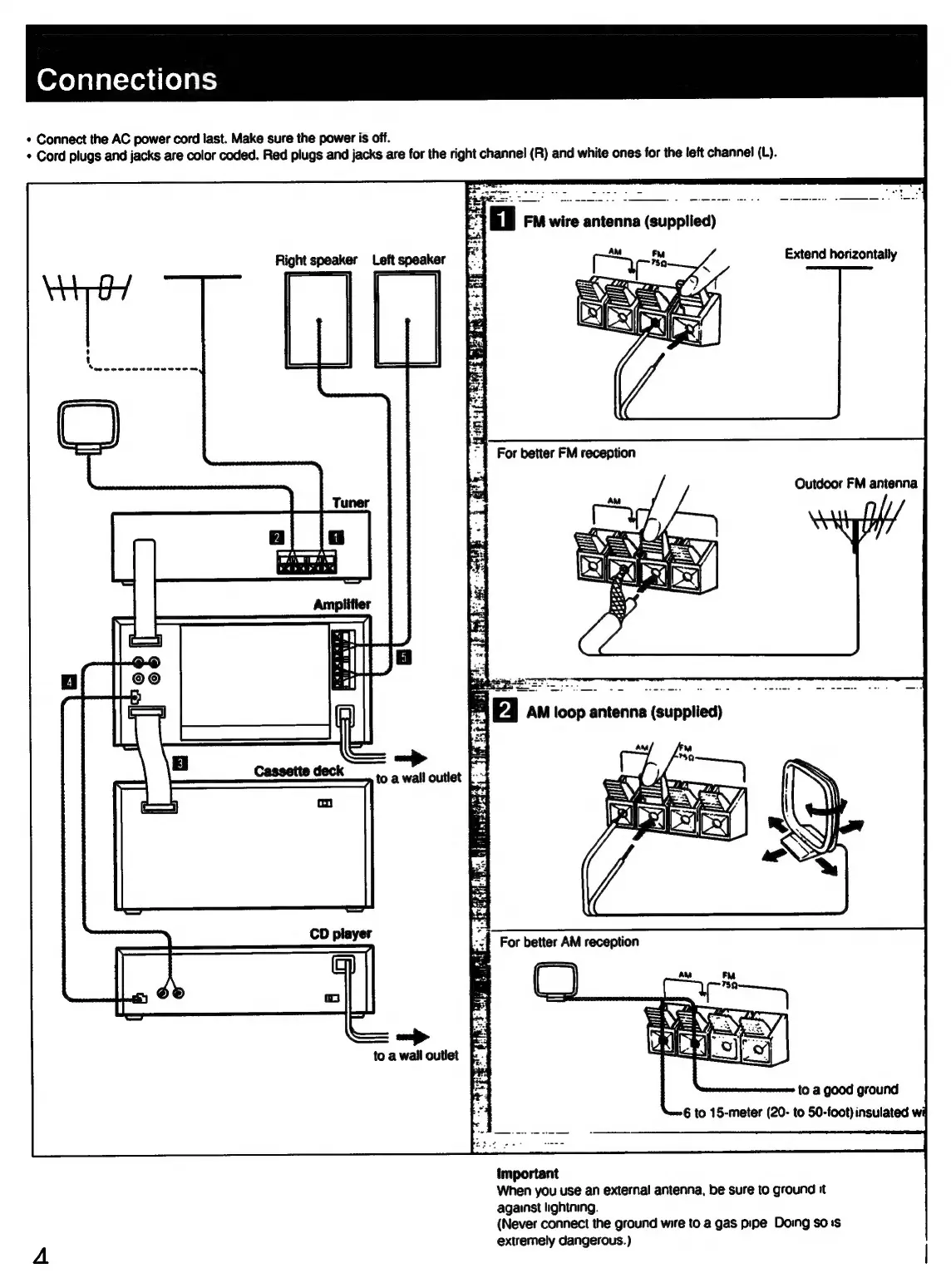

* Connect the AC power cord last. Make sure the power is off.
*
Cord
plugs
and
jacks
are
color
coded.
Red
plugs
and
jacks
are
for
the
right
channel
(R)
and
white
ones
for
the
left
channel
(L).
FM wire antenna (supplied)
Right
speaker
Left
speaker
Extend
horizontally
|
Jk
“| For better FM reception
Outdoor FM antenna
be 2
a 2 | AM loop antenna (supplied)
to a wall outlet
For better AM reception
to a wall outlet
to a good ground
6 to 15-meter (20- to 50-foot) insulated wi
important
When you use an external antenna, be sure to ground it
against lightning.
(Never connect the ground wire to a gas pipe Doing so 1s
extremely dangerous.)
