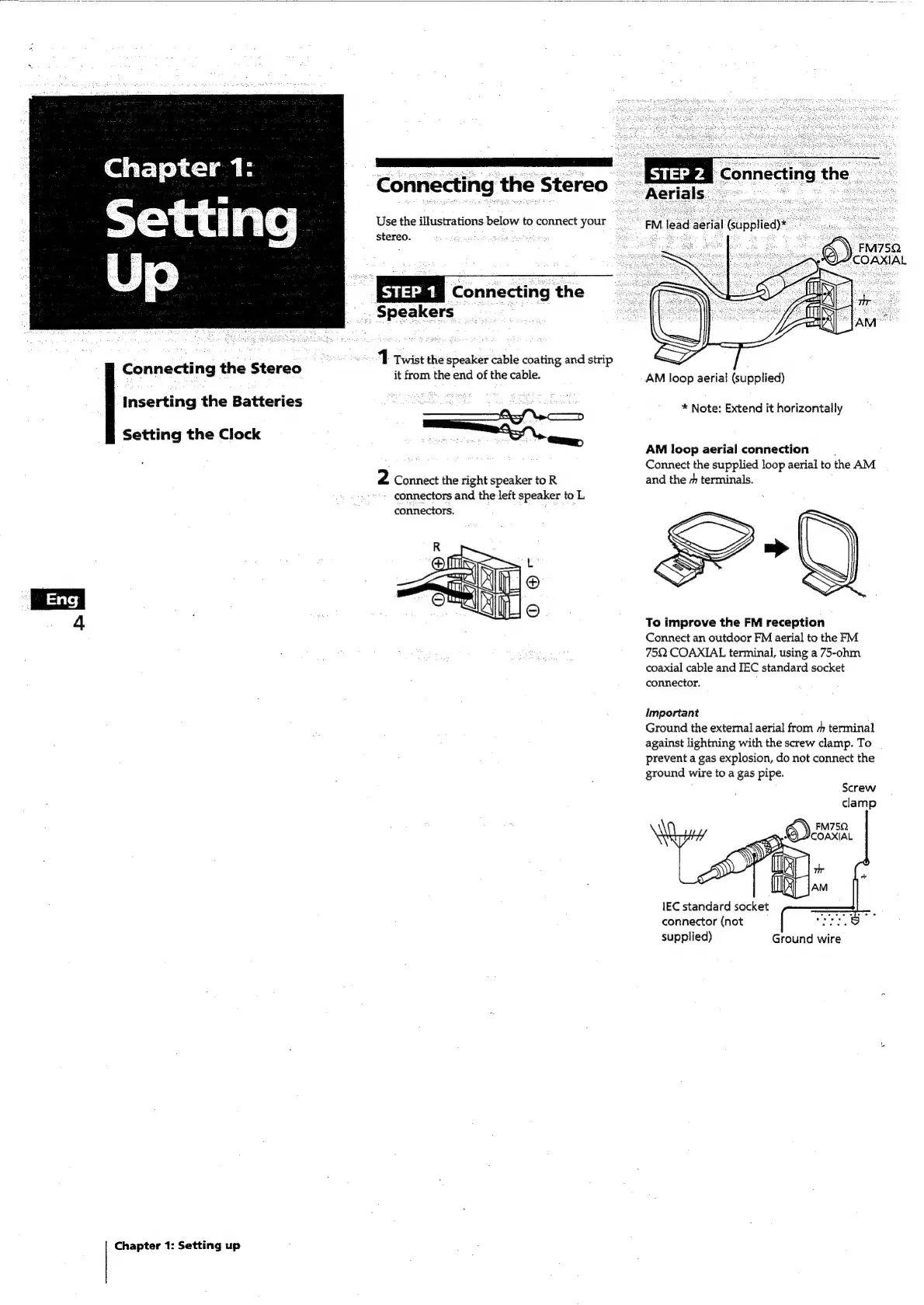

Chapter 1: Setting up
Connecting the Stereo
| STEP 1 | Connecting the -
Use the illustrations below to connect your ui ae
stereo. hse ome:
- FMI75Q
COAXIAL
Speakers
1 twist the speaker cable coating and strip
it from the end of the cable.
—n=
2 Connect the right speaker to R
connectors and the left speaker to L
connectors.
AM loop aerial (supplied)
* Note: Extend it horizontally
AM loop aerial connection ;
Connect the supplied loop aerial to the AM
and the + terminals.
To improve the FM reception
Connect an outdoor FM aerial to the FM
75Q. COAXIAL terminal, using a 75-ohm
coaxial cable and IEC standard socket
connector.
Important .
Ground the external aerial from + terminal
against lightning with the screw clamp. To
prevent a gas explosion, do not connect the
ground wire to a gas pipe.
FM75Q
OL COAXIAL
Bes
IEC standard socket
connector (not
supplied) Ground wire
