Chapter
1:
Connecting
the
Stereo
inserting
the
Batteries
Setting
the
Clock
A
|
Chapter
1:
Setting
up
ES
ee
eee

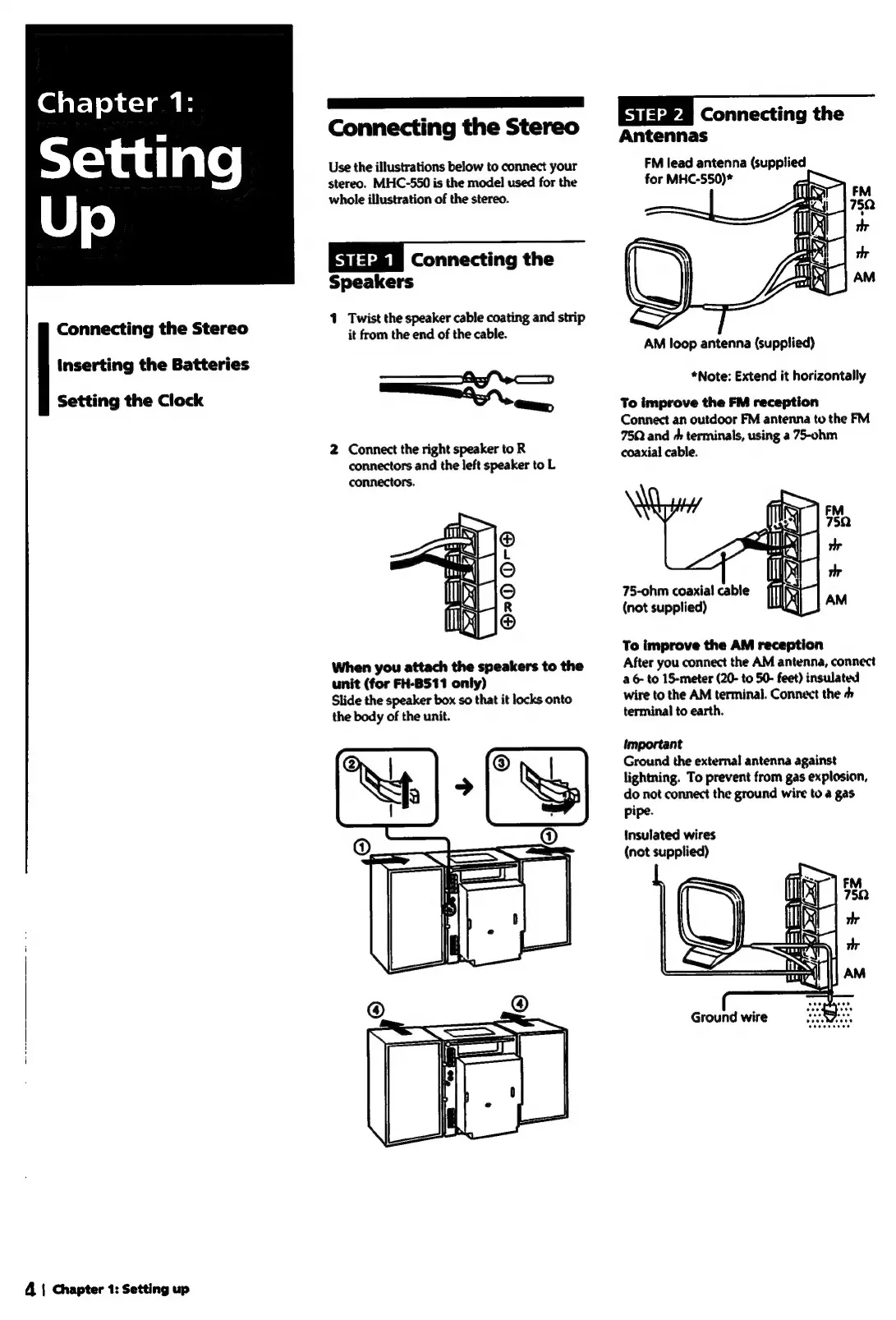

Connecting
the
Stereo
Use
the
illustrations
below
to
connect
your
stereo.
MHC-550
is
the
model
used
for
the
whole
illustration
of
the
stereo.
STEP
1
|
Connecting
the
Speakers
1
Twist
the
speaker
cable
coating
and
strip
it
from
the
end
of
the
cable.
—rn
2
Connect
the
right
speaker
to
R
connectors
and
the
left
speaker
to
L
connectors.
When
you
attach
the
speakers
to
the
unit
(for
FH-B511
only)
Slide
the
speaker
box
so
that
it
locks
onto
the
body
of
the
unit.
|
STEP
2
|
Connecting
the
Antennas
FM
lead
antenna
(supplied
for
MHC-5S50)*
AM
loop
antenna
(supplied)
*Note:
Extend
it
horizontally
To
improve
the
FM
reception
Connect
an
outdoor
FM
antenna
to
the
FM
75Q
and
+h
terminals,
using
a
75-ohm
coaxial
cable.
75-ohm
coaxial
cable
(not
supplied)
To
improve
the
AM
reception
After
you
connect
the
AM
antenna,
connect
a
6
to
15-meter
(20-
to
50-
feet)
insulated
wire
to
the
AM
terminal.
Connect
the
+
terminal
to
earth.
important
Ground
the
external
antenna
against
lightning.
To
prevent
from
gas
explosion,
do
not
connect
the
ground
wire
to
a
gas
pipe.
Insulated
wires
(not
supplied)
