Sony MHC-EC619iP - Front Panel and CD Door Removal

HCD-EC719iP/EC919iP
10

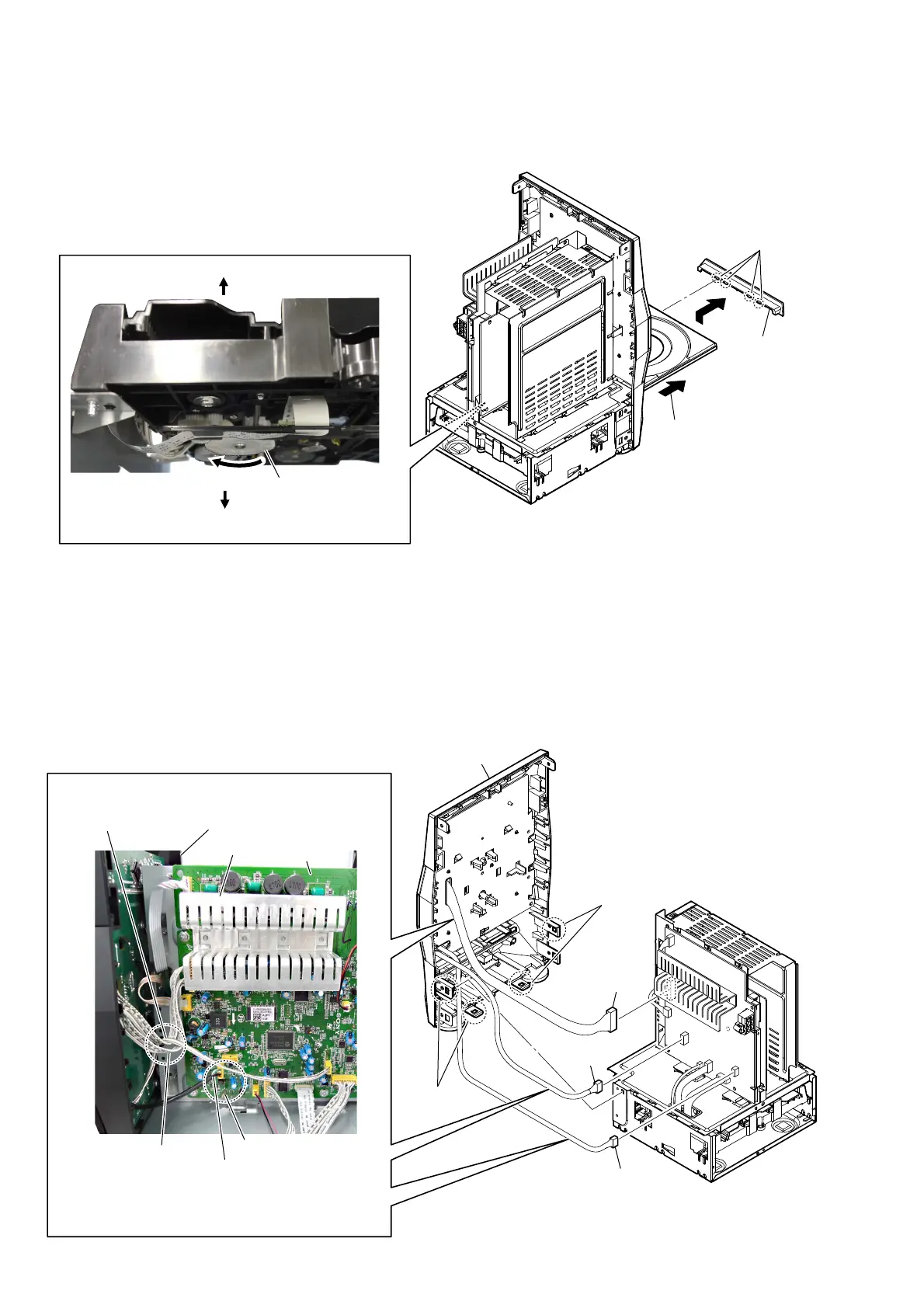

2-5. FRONT PANEL BLOCK
2-4. CD DOOR
4 CD door
3 four claws
2 Pull out the disc tray.
– Rear view –
1 Turn the traverse gear in
the direction of an arrow.
bottom side
top side
– Rear view –
4 two claws
4 two claws
5
front panel block
– Rear right view –
3 connector
(XP15)
2 connector
(XP7)
1 connector
(XP19)
 Wire setting
Wire from USB board
is upper.
Wire from FRONT board
is lower.
– Right view –
MAIN board
heatsink
front panel block
resistor
Note:
When installing the wire,
be careful not to touch the
resistor.
