10

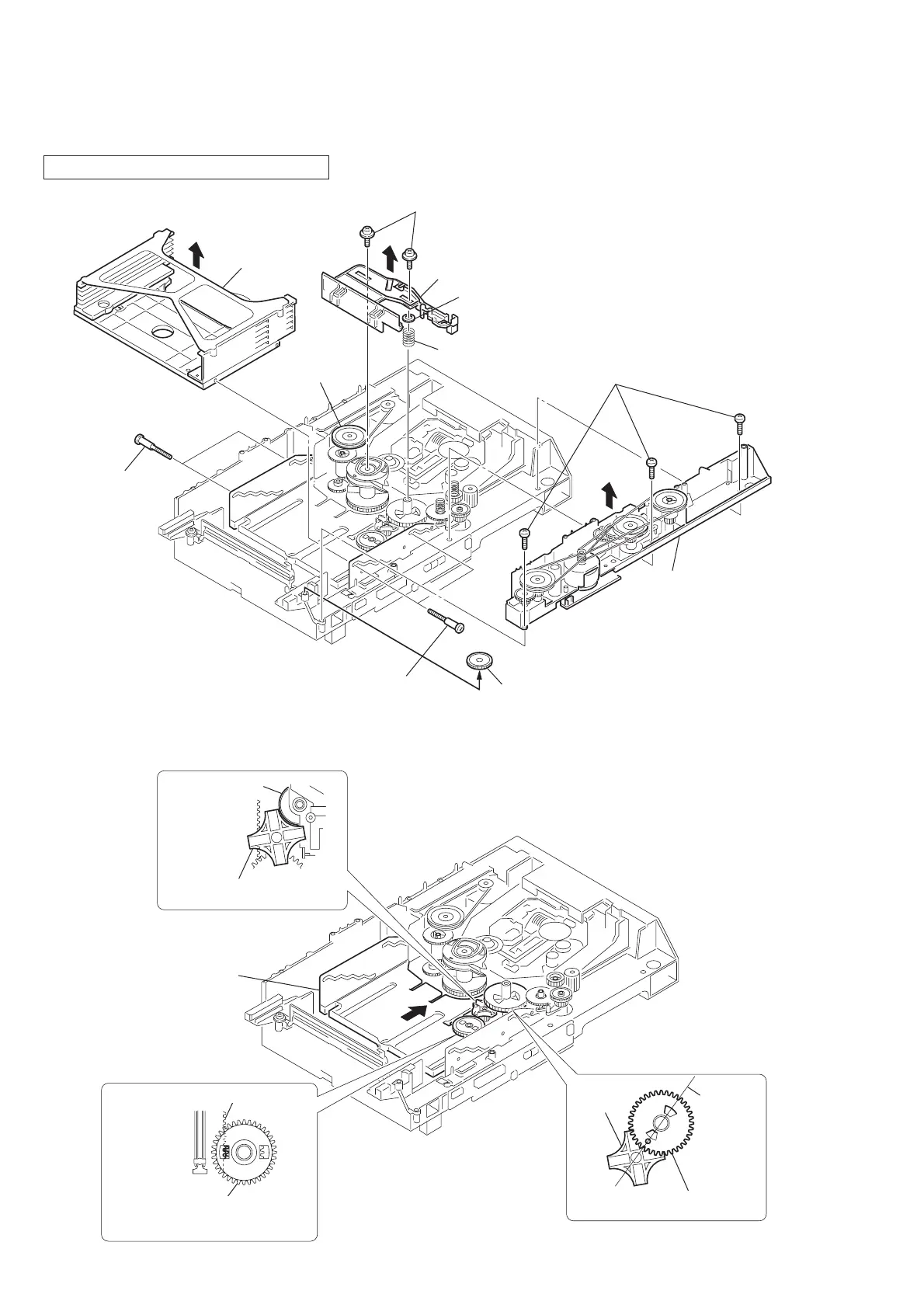

CHASSIS (MOLD B) SECTION, STOCKER SECTION AND
SLIDER (SELECTION)
Note: In mounting the parts, refer to page 11 and 12.
GEARS INSTALLATION
5 stocker
section
4 two step
screws
4 two step screws
3 gear (eject)
2 chassis (mold B) section
Note: Rotating the pulley (LD),
shift the slider (selection
)
to the left.
9 compression
spring
7 slider (selection)
8 washer
6 two screws
(PTPWH M2.6)
1 three screws
(BVTP M2.6)
pulley (LD)
1 Slide the slider (U/D)
fully in the arrow
direction.
3 gear (gear B)
2 gear (U/D slider)
4 gear (gear A)
Adjust the gear (gear B) with the
portion A as shown.
Adjust the gear so that it meshes with
the bottom tooth of slider (U/D)gear,
as shown.
portion A
slider (U/D) gear
linearly
gear
(gear B)
Adjust so as to be aligned with
gear (B) linearly,as shown.
