Sony MHC-NX1 - 3 Disassembly

6

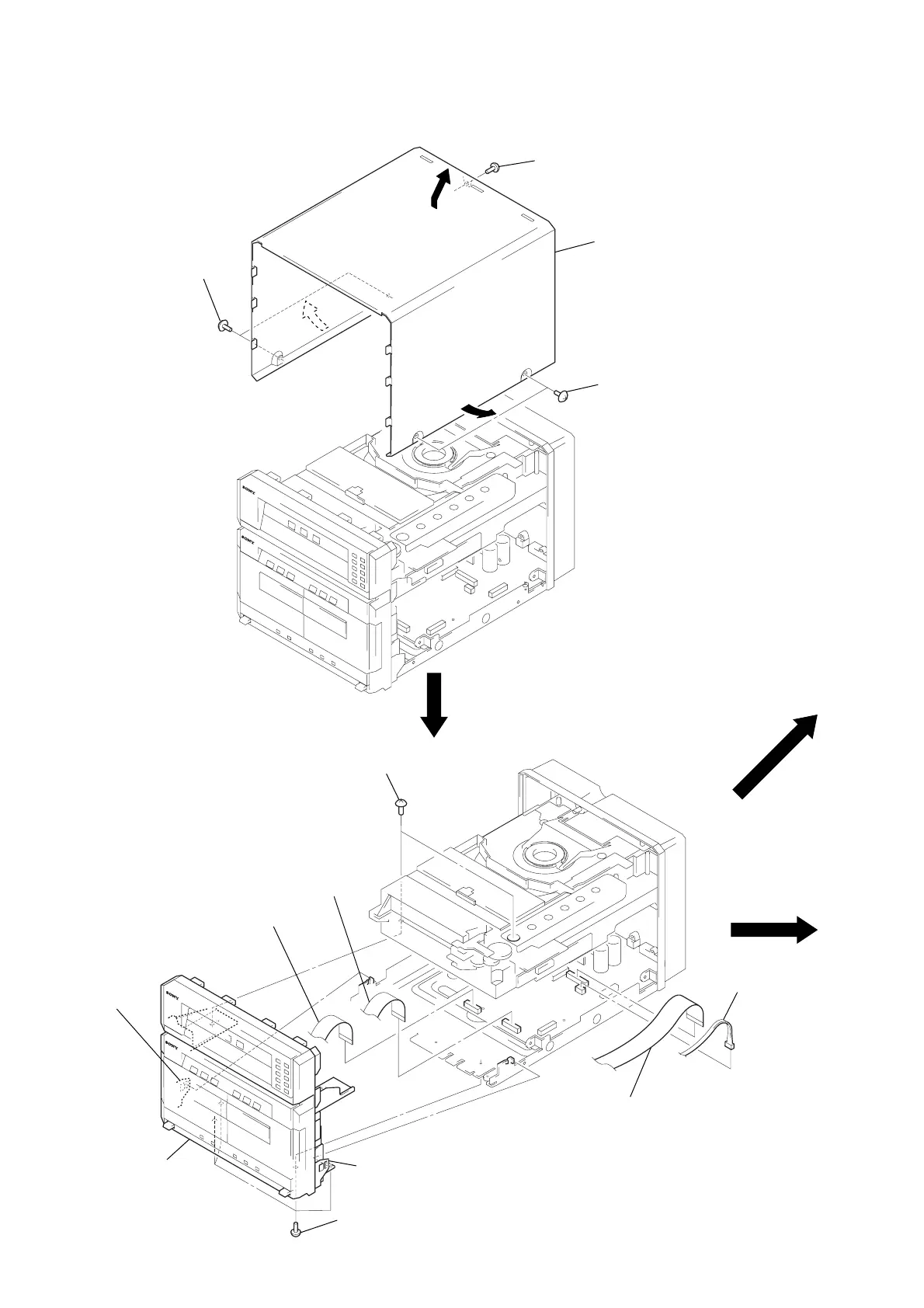

CASE
FRONT PANEL SECTION
Note: Follow the disassembly procedure in the numerical order given.
SECTION 3
DISASSEMBLY
1 screw
(BVTP3
× 10)
2 two screws
(case 3 TP2)
2 two screws
(case 3 TP2)
3 Remove the case
in the arrow
A
direction.
A
3 two screws
(BVTP3 × 10)
3 four screws
(BVTP3 × 5)
1 flat cable (17 core)
(16 cm)(CNS104)
1 flat cable (15 core)
(CNS101)
1 flat cable (21 core)
(CN102)
2 connecto
r
(CN105)
4 claw
4 claw 5 front panel
section
